Overview

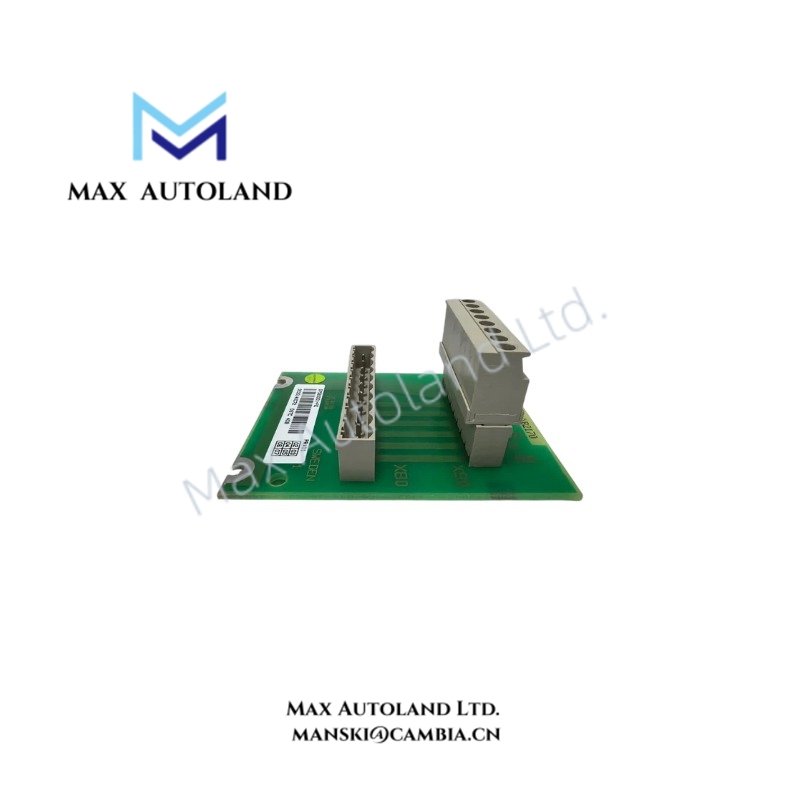

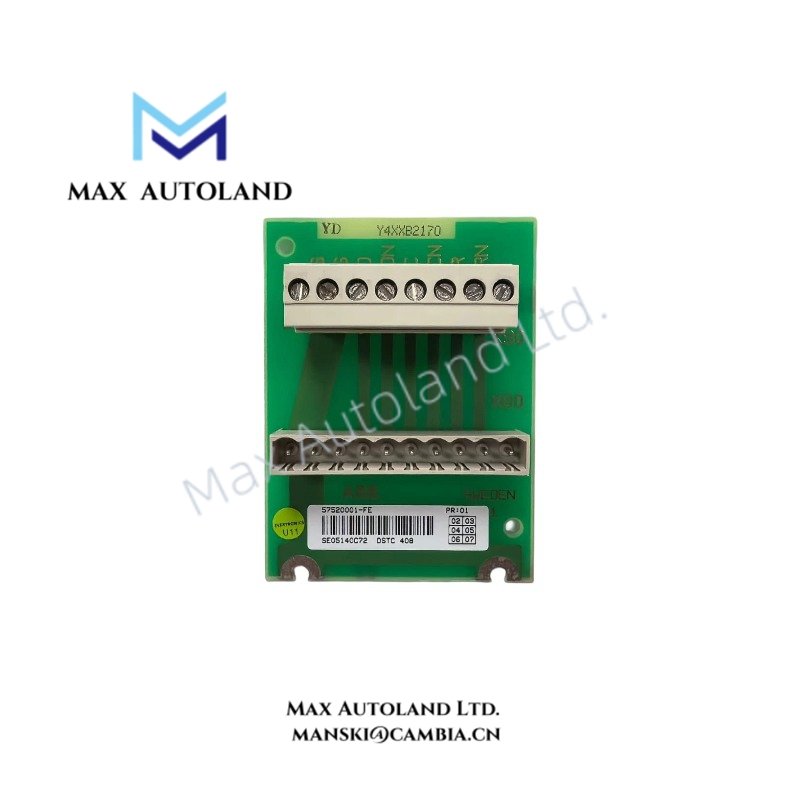

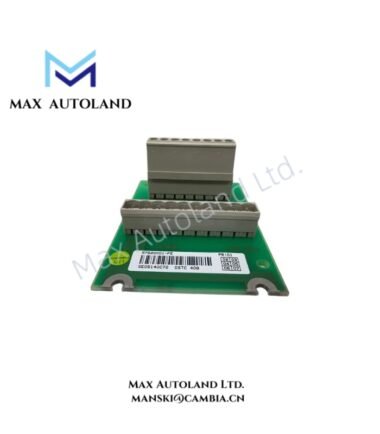

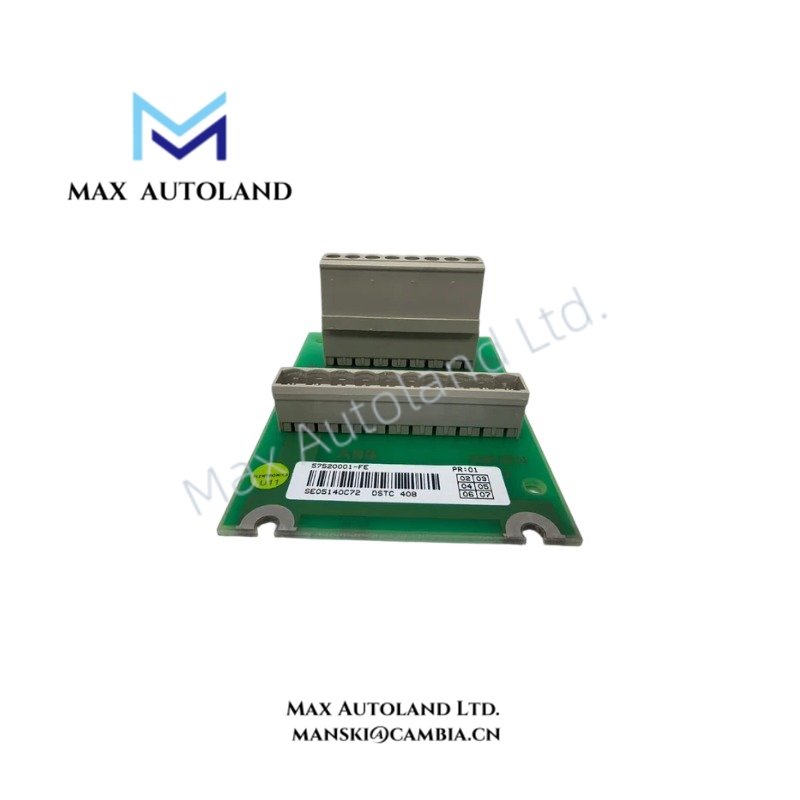

Configured for high-speed control loop execution and signal processing in ABB drive and control platforms, the ABB DTC408 57520001-FE (DTC408 Drive Control Card) provides direct physical and electrical execution. It exchanges control data with the system backplane, processes digital and analog signals, and supports communication between the processor and connected field interfaces. Moreover, the board is intended for plug-in installation within compatible ABB control racks and drive assemblies.
Suffix Breakdown & Model Matrix
The supplied documentation identifies DTC408 57520001-FE as a fixed catalog number. Therefore, no official suffix breakdown or option matrix is provided by the available technical documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DTC408 57520001-FE |
| Brand | ABB |
| Product Type | Drive Control Card / Digital Tuning Board |
| Origin | Sweden |
| Form Factor | Printed Circuit Board (PCB) plug-in module |
| Mounting | ABB subrack / backplane installation |
| Processor Type | Digital microprocessor-based control processing |
| Function | Control loop execution, signal processing, interface management |
| System Compatibility | ABB drive systems, excitation systems, compatible Advant control platforms |
| Input Power | System logic supply through compatible backplane (typically 5 VDC, +/-15 VDC, or 24 VDC depending on system configuration) |
| Power Consumption | Low-power logic board with reduced thermal dissipation |
| Interface Capability | Multi-channel digital and analog interface support |
| Operating Temp | 0 deg C to 55 deg C |
| Storage Temp | -40 deg C to 70 deg C |
| Relative Humidity | 5 % to 95 % non-condensing |
| Dimensions | Standard ABB Eurocard rack-module format (approximate) |
| Weight | Approximately 0.4 kg to 0.8 kg depending on hardware revision |
Firmware Flash Compatibility
ABB control platforms use backplane communication to exchange process data between the processor and installed hardware modules. Consequently, the DTC408 must be installed in a compatible rack and operated with firmware revisions approved for the associated control or drive platform. Firmware compatibility should always be verified before board replacement because unsupported revisions may prevent correct initialization or diagnostic reporting.
Frequently Asked Questions
Q: Can the DTC408 be inserted or removed while the control rack is energized?
A: The available documentation does not specify hot-swap capability. Therefore, power isolation should be completed before installing or removing the board unless the host system manual explicitly permits online replacement.
Q: Does the DTC408 receive field power directly?
A: No. The board operates from logic power supplied through the compatible ABB backplane or rack assembly. External field wiring should follow the electrical architecture defined for the host system.
Q: What should be verified before replacing the module?
A: Confirm the catalog number, hardware revision, rack compatibility, firmware requirements, connector condition, and backplane seating before returning the system to service.
Field Installation Guidelines
- Disconnect system power before installing or removing the module unless the host platform specifically supports online replacement.
- Insert the PCB evenly into the card guides until the backplane connector is fully engaged.
- Tighten retaining hardware according to the equipment manual to minimize vibration-related connector movement.
- Separate low-level control wiring from high-energy power cables to reduce electromagnetic interference.
- Connect cable shields according to the host cabinet grounding practice and avoid multiple shield grounding points unless required by the installation standard.
- After installation, inspect system diagnostics and verify that the controller recognizes the board before placing the equipment into normal operation.
