Overview
Specification
| Parameter | Description |
|---|---|

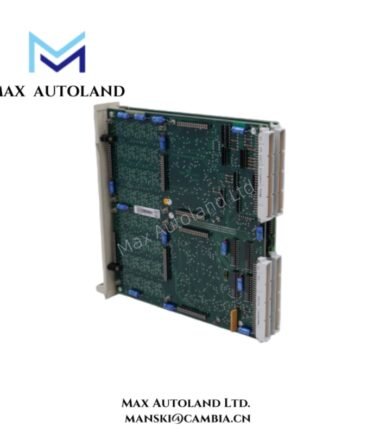

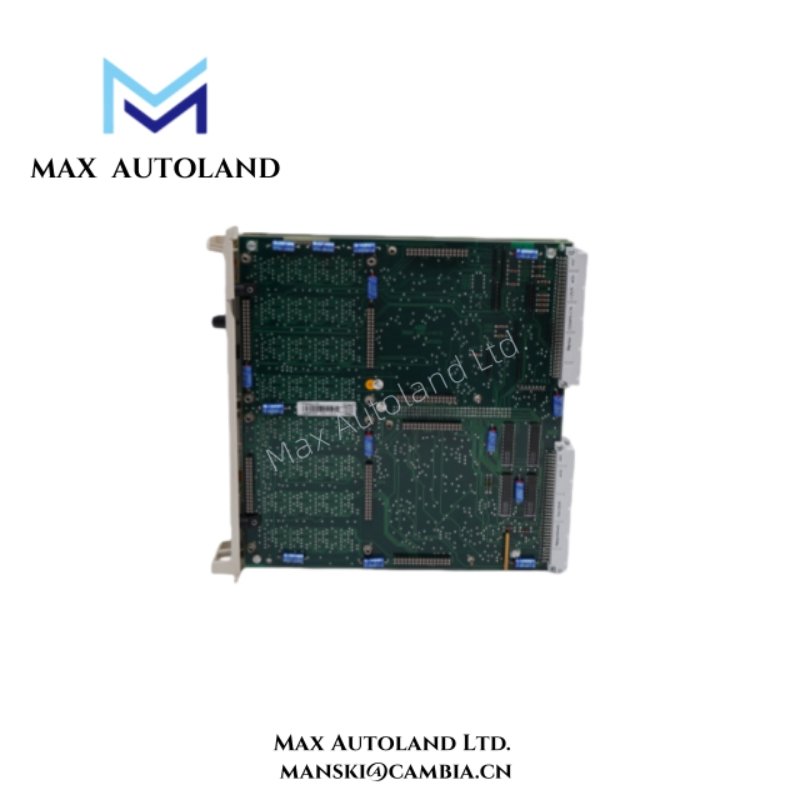

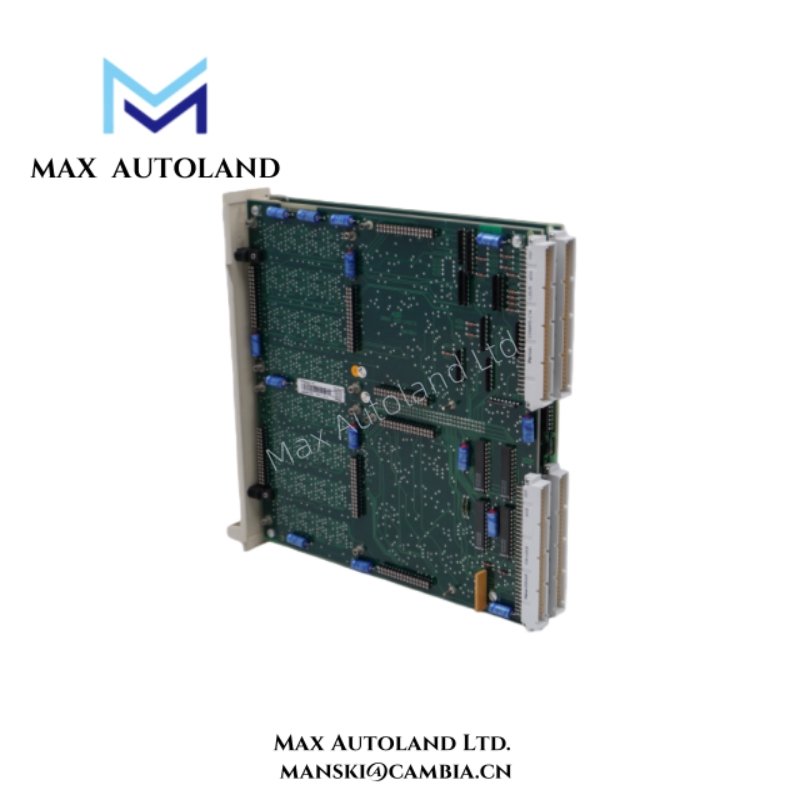

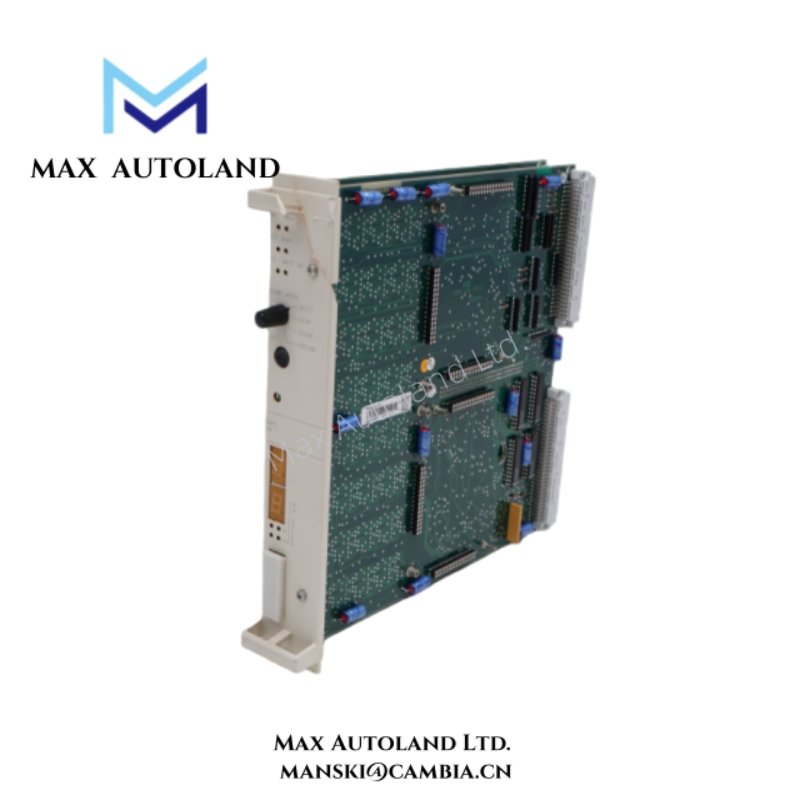

| Model Number | DSPB 120 57340001-T |
| Module Type | Master Display Processor |
| System Compatibility | ABB Advant OCS / 800xA Display Systems |
| Function | Manages display data processing for operator terminals |
| Display Channels | Supports multiple HMI terminals simultaneously |
| Data Rate | High-speed update for real-time visualization |
| Input Voltage | 24 V DC typical |
| Power Consumption | ≤ 6 W |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature Range | –20°C to 70°C (–4°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Mounting | Rack-mounted in standard ABB control cabinets |
| Diagnostics | LED indicators for operational and communication status |
| MTBF | >100,000 hours typical in industrial environments |
| Certifications | Complies with ABB industrial and safety standards |
FAQ
It is fully compatible with ABB Advant OCS and 800xA display systems.
Q2: How many operator terminals can it support simultaneously?
It supports multiple HMI terminals for seamless display operation.
Q3: Can it operate in harsh industrial environments?
Yes, it tolerates electrical noise, vibration, and temperature variations reliably.
Q4: Does it provide diagnostics for monitoring?
Yes, LED indicators display operational and communication status clearly.
Q5: How is the installation process handled?
It mounts easily on standard ABB control racks with minimal configuration.
Q6: Does it improve display response and reliability?
Yes, it reduces latency and ensures accurate, continuous visualization for operators.
