Overview

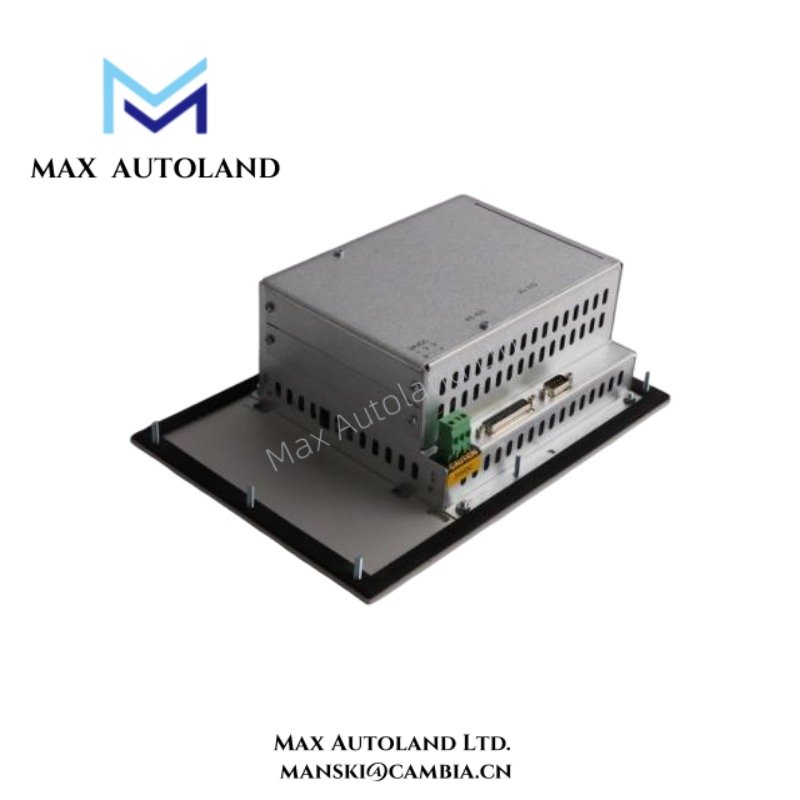

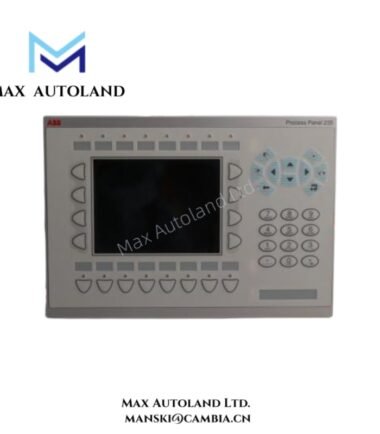

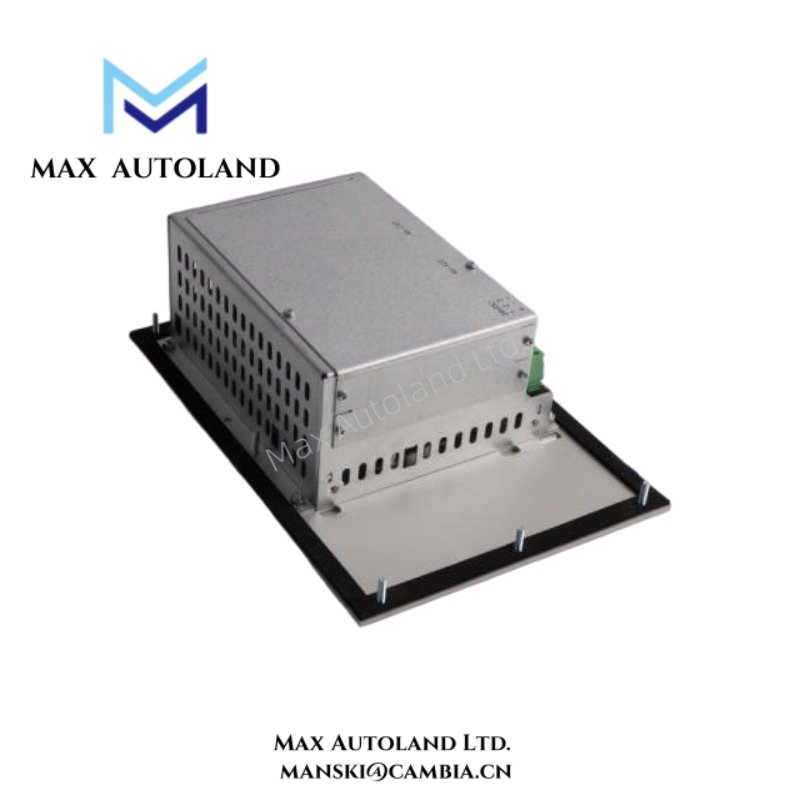

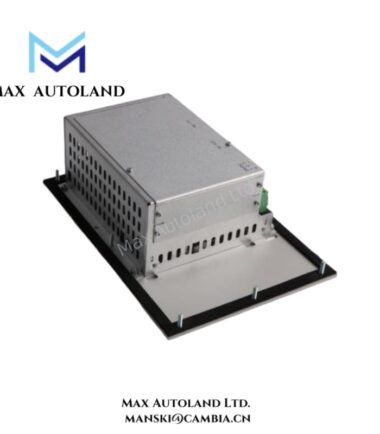

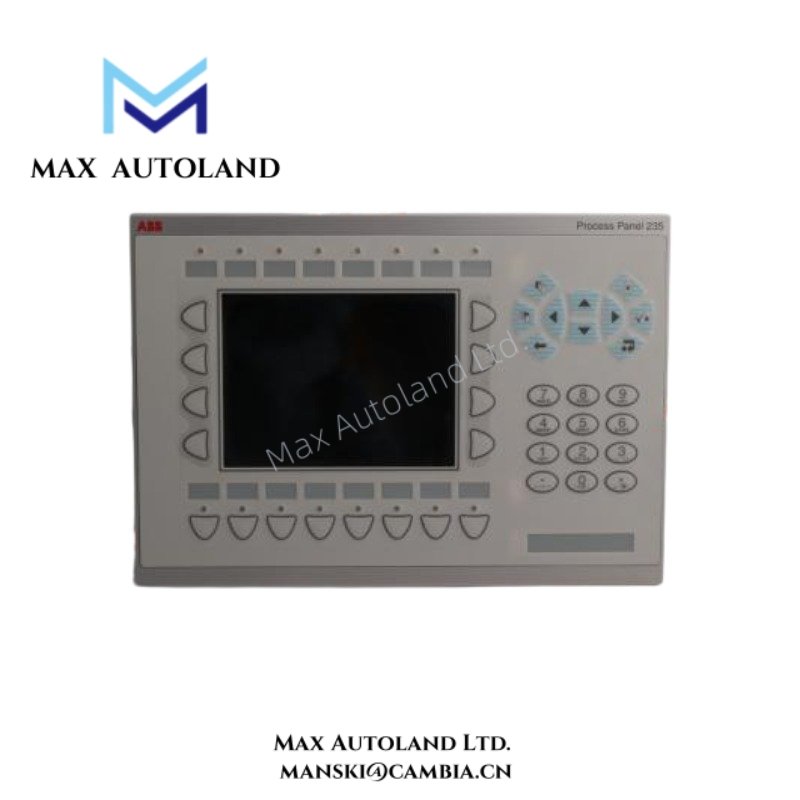

Configured for central control logic execution in the ABB Advant Master system, the ABB PP235 3BSC690102R2 (PP235 processor module) provides direct processing and backplane-based coordination of distributed I/O and communication tasks across Advant Master controller architectures. The module operates as a central execution node for cyclic control processing, system synchronization, and internal data exchange through the rack backplane. Firmware behavior and functional scope depend on controller generation and system software revision alignment.
Suffix Breakdown & Model Matrix
The designation PP235 identifies a processor-class module within the Advant Master family. The suffix 3BSC690102R2 represents the ABB internal ordering code defining hardware revision and manufacturing configuration. No additional functional segmentation is defined by the suffix structure in the available documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PP235 3BSC690102R2 |
| Brand | ABB |
| Origin | Not specified in available documentation |
| Weight | Not specified in available documentation |
| Dimensions | Not specified in available documentation |
| Operating Temp | Refer to Advant Master system specification |
| Power Consumption | Refer to Advant Master backplane load specification |
| Processor Function | Central control logic execution and system coordination |
| Communication | Backplane-based Advant Master internal bus |
Backplane Communication and Firmware Compatibility (ABB Advant Master)
The PP235 module integrates into the Advant Master backplane architecture where it exchanges process data with I/O and communication modules via deterministic internal bus cycles. ABB defines timing and synchronization behavior through system-level firmware rather than standalone module configuration.
Firmware compatibility depends on the controller generation and installed system software revision. During replacement or upgrade, hardware revision alignment must match the target Advant Master configuration to ensure correct module enumeration and backplane initialization. Inconsistent firmware levels may prevent full system recognition or interrupt cyclic data exchange.
Frequently Asked Questions (FAQ)
Q: Does the PP235 support hot-swap operation during runtime?
A: The available documentation does not define hot-swap support. Standard Advant Master practice requires power removal before processor module replacement unless system-level instructions explicitly permit online maintenance.
Q: Does the PP235 execute direct I/O signal conditioning?
A: No. The module performs logical processing and system coordination. Signal acquisition and conditioning are handled by dedicated I/O modules connected via the backplane.
Q: What happens if firmware versions are mismatched during installation?
A: Firmware mismatch can prevent proper module initialization, resulting in communication failure or restricted system startup depending on controller revision rules.
Field Installation Guidelines
Verify PP235 part number and hardware revision before installation.
Isolate rack power supply before inserting or removing the module.
Inspect backplane connectors for contamination or mechanical wear prior to mounting.
Maintain proper cabinet grounding and ensure shield continuity for backplane and communication segments.
Route signal and communication cabling separately from high-current conductors to reduce interference coupling.
Confirm module recognition and system status indicators after power-up sequence completion.
