Overview

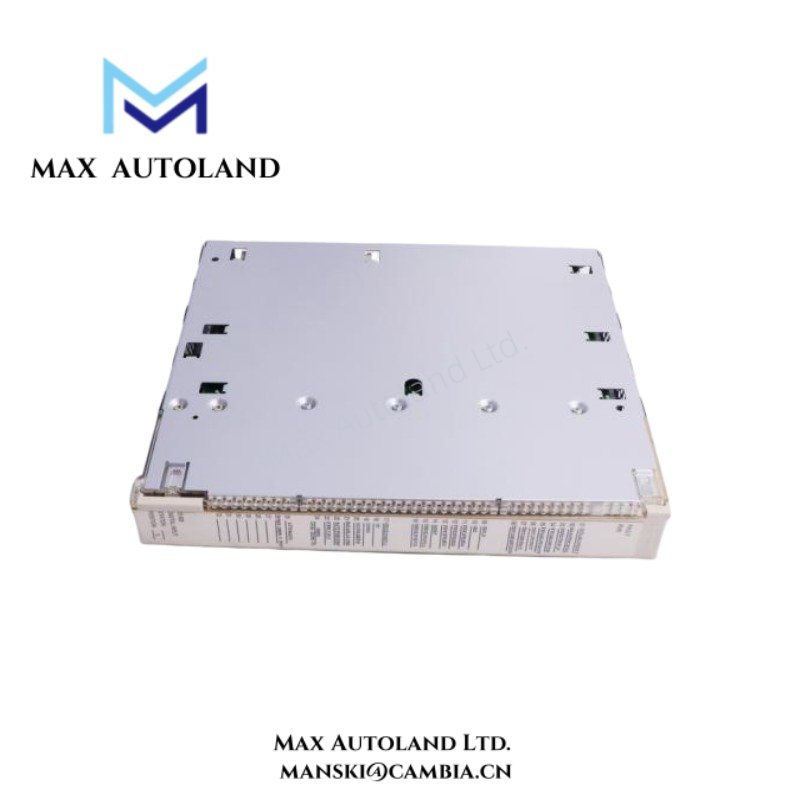

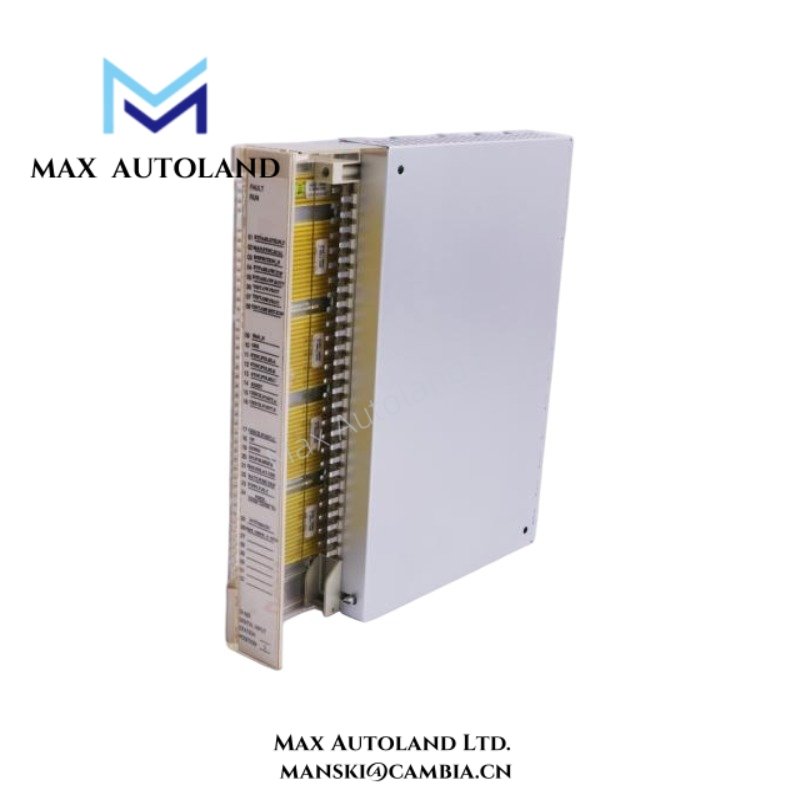

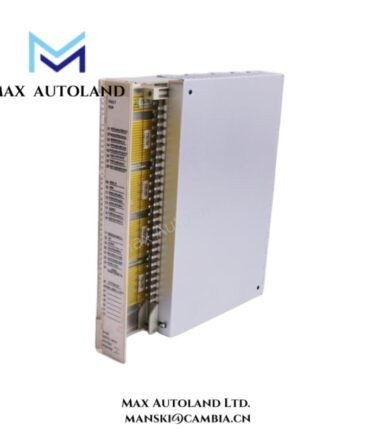

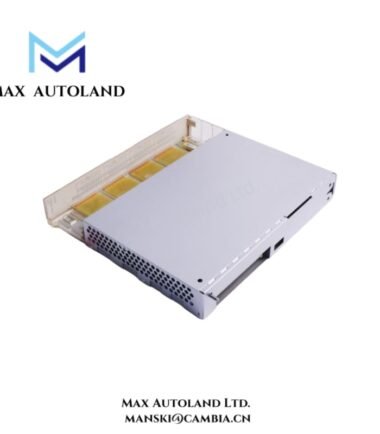

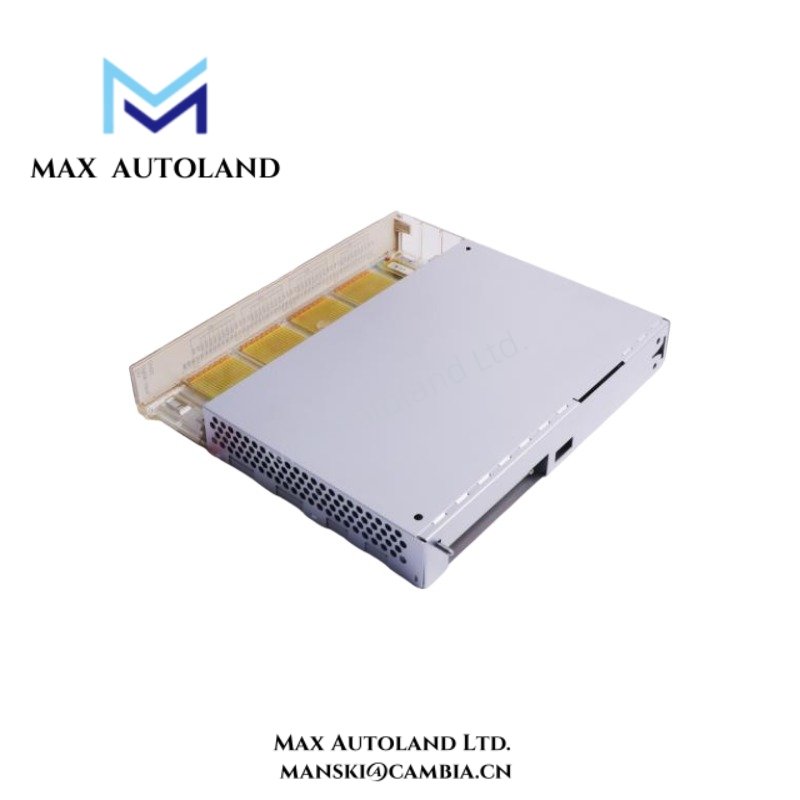

The ABB DI620 3BHT300002R1, also cataloged as the DI620 Digital Input Module, operates as a dedicated hardware component for discrete input signal acquisition within Advant Master control systems. The module receives field-level digital status signals, conditions the input channels, and transfers input data to the controller through the system backplane.
Suffix Breakdown & Model Matrix
The designation DI620 3BHT300002R1 represents a complete ABB ordering reference. Available documentation identifies the unit as a DI620 Digital Input Module. No official suffix matrix or option breakdown is specified.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DI620 3BHT300002R1 |
| Brand | ABB |
| Product Type | Digital Input Module |
| Series | Advant Master |
| Function | Discrete input signal acquisition |
| Signal Direction | Field devices to controller |
| Input Type | Digital inputs |
| System Interface | Advant Master backplane |
| Mounting Method | Rack-mounted module |
| Origin | Sweden |
| Weight | Approx. 0.3 kg |
| Dimensions | Not specified in available documentation |
| Operating Temp | 0 deg C to +55 deg C |
| Power Consumption | Not specified in available documentation |
| Status Monitoring | Input channel diagnostics and status indication |
I/O Density Scaling and Backplane Integration
The DI620 exchanges input data with the host controller through the Advant Master backplane architecture. As application requirements increase, engineers can expand input capacity by adding additional digital input modules within supported rack configurations.
The module performs input signal acquisition and channel conditioning locally. Subsequently, the controller processes the received status information and executes the associated application logic. Input update performance depends on controller scan timing, backplane communication cycles, and module operating status.
Frequently Asked Questions
Q: Can the DI620 operate without a host controller?
A: No. The module acquires digital input signals but requires a compatible Advant Master controller to process application logic and system functions.
Q: Does the DI620 support hot-swap replacement?
A: Available documentation does not explicitly define hot-swap capability. Therefore, technicians should remove system power before installing or removing the module unless the platform documentation specifies otherwise.
Q: Should field input circuits remain energized during maintenance?
A: No. Maintenance personnel should isolate associated field circuits and verify safe electrical conditions before performing wiring or module replacement activities.
Field Installation Guidelines
- First, verify the module part number and hardware revision against project documentation.
- Next, isolate cabinet power and field input circuits before installation.
- Inspect terminal connections, module connectors, and backplane contacts for contamination or mechanical damage.
- Maintain proper grounding and cable shielding practices throughout the control cabinet.
- Route input wiring separately from high-current power conductors where practical.
- After installation, verify input channel status indications and controller diagnostics.
- Finally, confirm correct field signal acquisition and record all maintenance activities.
