Overview
Specification
| Parameter | Specification / Details |
|---|---|

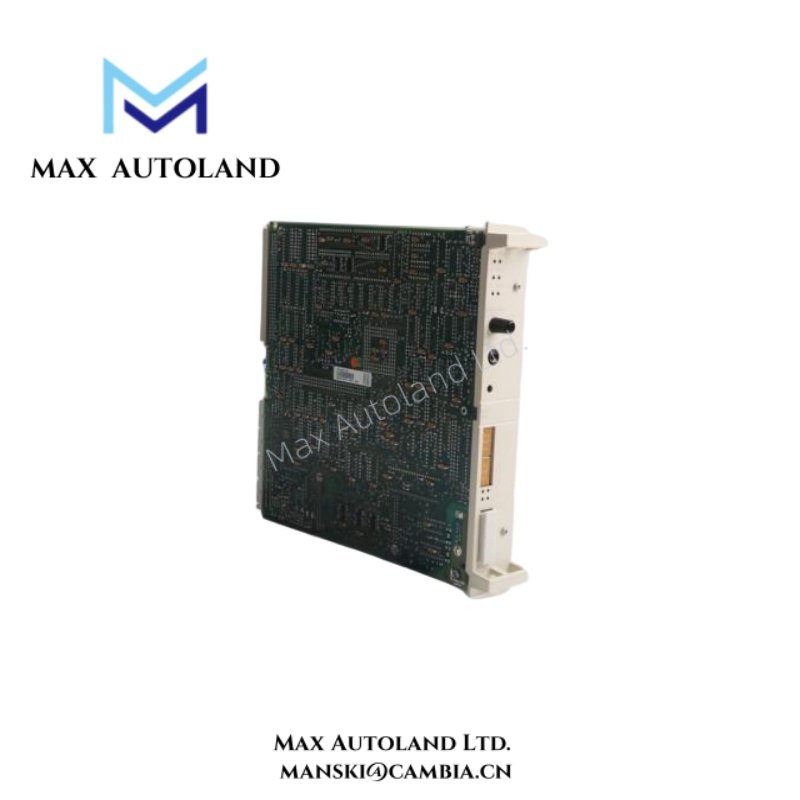

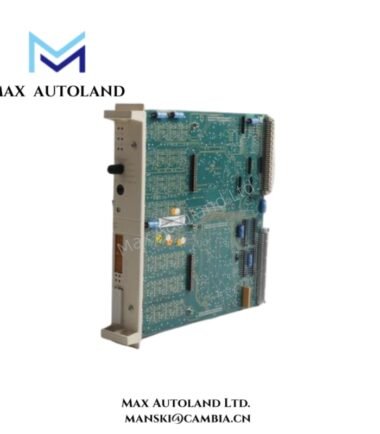

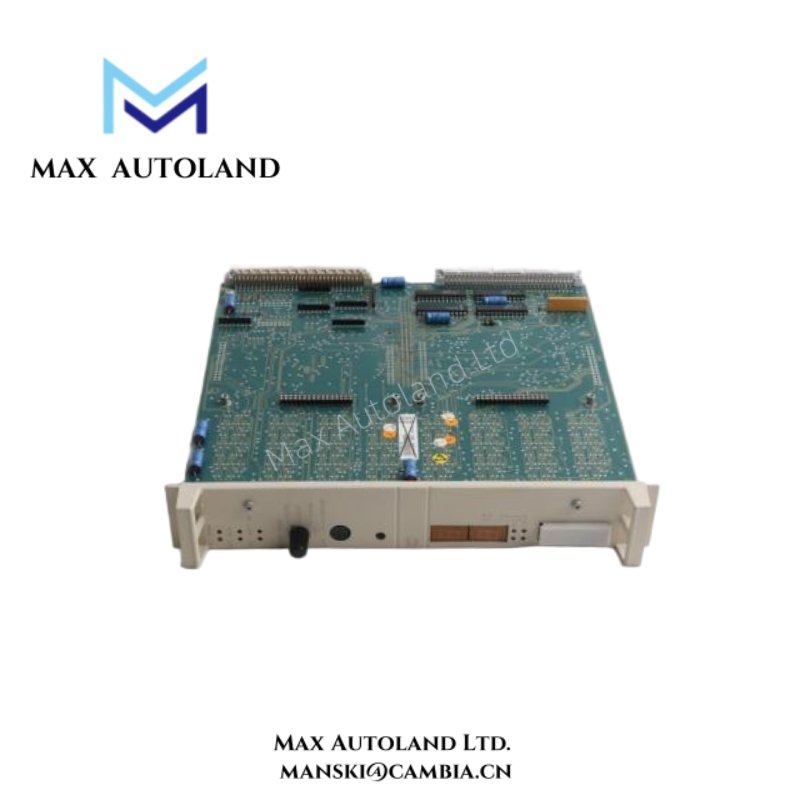

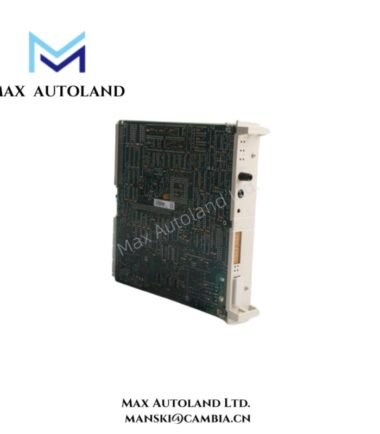

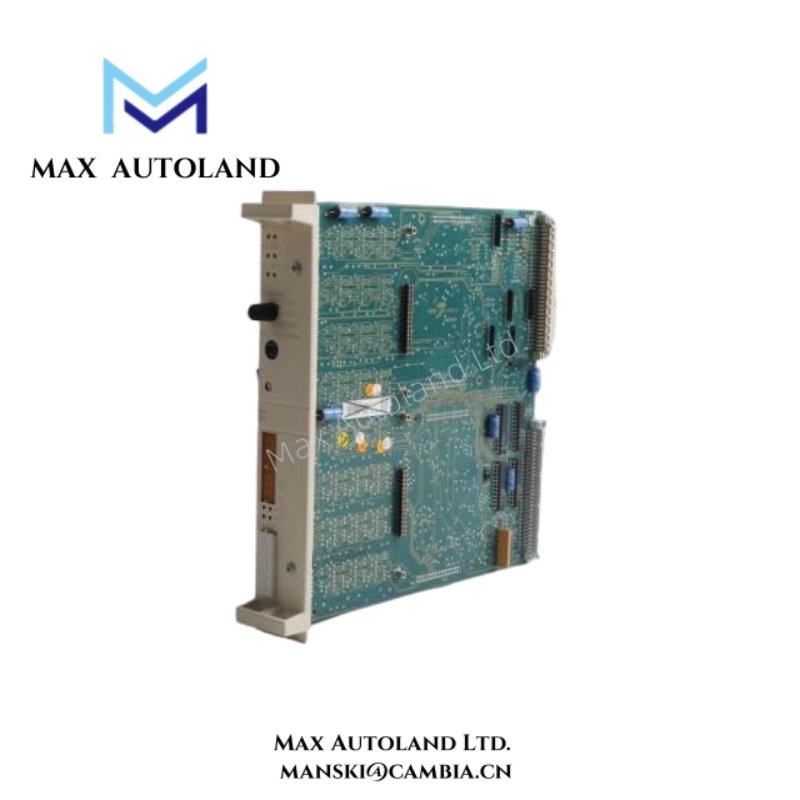

| Model Number | DSPC 172H |
| ABB Part Number | Y57310001-MP |
| Module Type | Master CPU Module |
| Processor | High-performance industrial CPU |
| Memory | 512 MB RAM, 256 MB Flash |
| Communication Interfaces | Vnet, Ethernet, Serial Ports |
| Redundancy Support | Yes, hot standby configuration |
| Power Supply Input | 24 V DC (typical base unit supply) |
| Power Consumption | Approx. 18 W |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –20°C to +70°C |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Mounting / Form Factor | Rack-mounted module compatible with ABB cabinets |
| Weight | Approx. 1.2 kg |
| Dimensions (approx.) | 238 mm × 234 mm × 40 mm |
| Compliance / Certification | ABB industrial standards, CE/UL/EMC compliant |
| Application Scope | Process control, redundancy systems, critical industrial applications |
FAQ
A1: Yes, it supports both ABB 800xA and Advant OCS networks for seamless integration.
Q2: Can this CPU module operate in high-temperature industrial environments?
A2: Yes, it reliably operates between 0°C and 55°C, meeting standard industrial requirements.
Q3: Does it support redundancy configurations for continuous operation?
A3: Yes, the DSPC 172H allows hot standby and redundant CPU configurations.
Q4: What communication interfaces are available on this module?
A4: It provides Vnet, Ethernet, and serial ports for fast and flexible data exchange.
Q5: How does this CPU module improve system reliability?
A5: By supporting redundancy and robust operation, it minimizes downtime and ensures continuous control.
Q6: What is the module’s typical power consumption?
A6: It consumes approximately 18 W under normal operating conditions.
