Overview

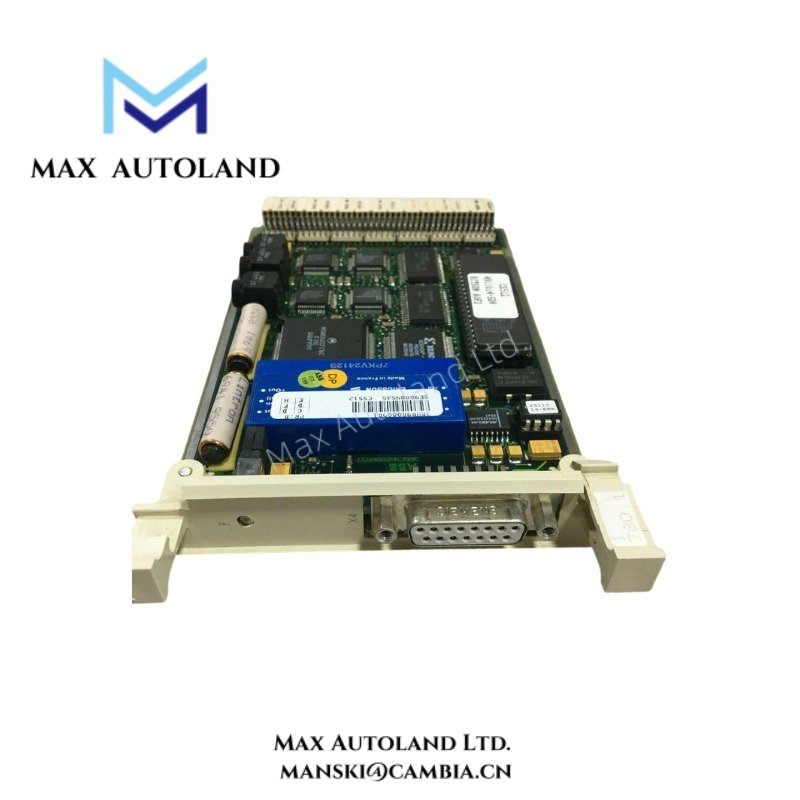

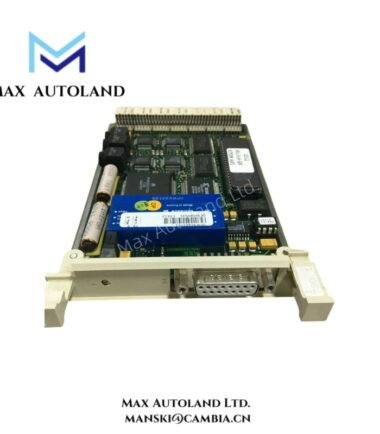

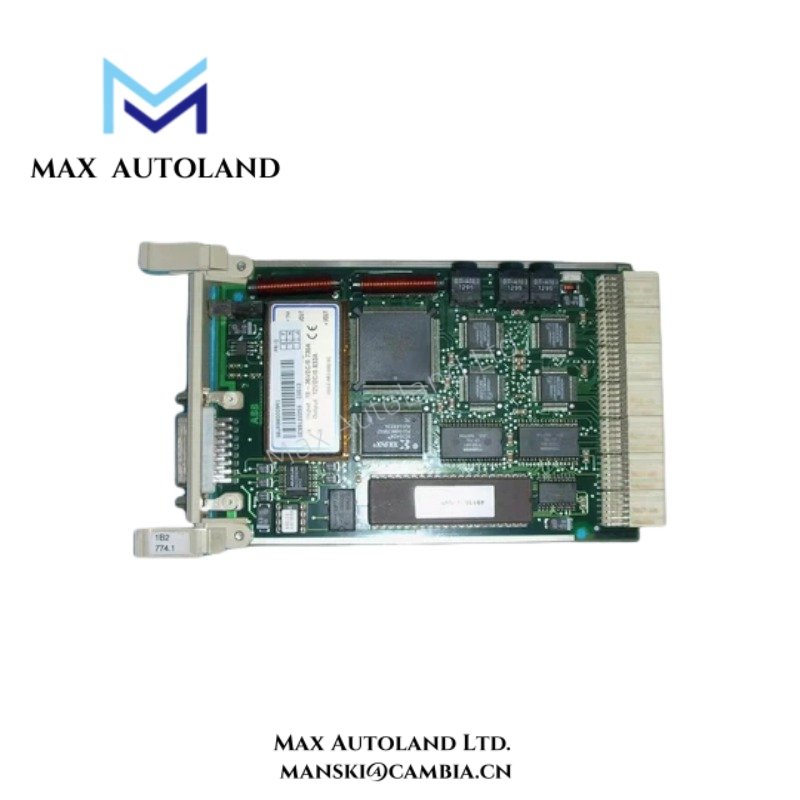

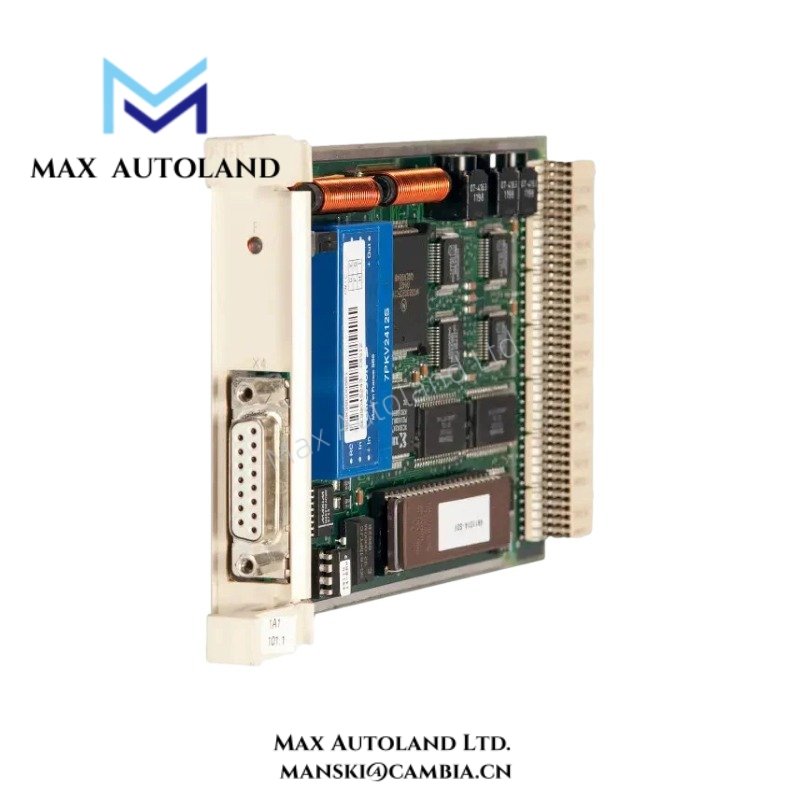

Configured for DCN network communication in ABB Advant OCS and Advant MOD 300 architectures, the ABB CS512 3BUR980009R1 (CS512 DCN Interface Module) provides direct physical/electrical execution. The module functions as a communication interface for data exchange across the Distributed Control Network (DCN) backplane environment. It is identified as a PS DCN Interface and is designed for integration within ABB controller and communication infrastructures.
Suffix Breakdown & Model Matrix
The supplied documentation identifies a single catalog number:
| Model | Description |
|---|---|
| CS512 / 3BUR980009R1 | PS DCN Interface Module |
No official suffix matrix or option breakdown is specified in the available source material.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CS512 |
| Order Number | 3BUR980009R1 |
| Brand | ABB |
| Product Type | DCN Interface Module |
| System Family | ABB Advant OCS / Advant MOD 300 |
| Communication Function | Distributed Control Network (DCN) Interface |
| Origin | Sweden |
| Net Weight | 0.19 kg to 0.20 kg |
| Dimensions | Approx. 234-260 mm x 108-115 mm x 18-25 mm |
| Operating Temp | Not specified in available documentation |
| Power Consumption | Not specified in available documentation |
| Mounting Method | Rack / Backplane Installation |
| Application | Controller and Network Communication Interface |
Backplane Communication and Firmware Compatibility
The CS512 functions as a dedicated communication interface within ABB Advant control platforms. Data enters the module through the DCN network path and then moves across the system backplane to associated control resources. As a result, users can expand communication capacity without modifying the primary controller hardware structure.
Moreover, the module supports integration within Advant OCS and MOD 300 architectures while maintaining consistent communication between network nodes and controller resources. In addition, engineers install the CS512 directly into the system rack to reduce communication path complexity. Consequently, the module maintains deterministic backplane communication throughout normal system operation. Furthermore, the native ABB platform architecture supports compatibility between installed interface modules and host control resources.
Frequently Asked Questions
Q: Does the CS512 support hot replacement while the control rack remains energized?
A: ABB documentation does not specify hot-swap functionality for the CS512. Therefore, maintenance personnel should follow the replacement procedures defined for the applicable Advant OCS installation.
Q: Does the module communicate directly with field instruments?
A: No. The CS512 manages DCN communication functions within the control system. Instead, the controller and associated I/O modules handle direct field device connections.
Q: Is firmware configuration stored inside the CS512 module?
A: Available documentation does not define internal firmware storage details. Therefore, engineers should verify configuration management requirements through the host controller and engineering workstation documentation.
Field Installation Guidelines
- First, verify the assigned rack slot before inserting the module into the Advant OCS backplane.
- Next, de-energize the cabinet unless the applicable system documentation permits energized replacement.
- Additionally, maintain adequate separation between communication wiring and high-current power conductors.
- Furthermore, terminate cable shields according to site grounding practices to reduce electrical noise coupling.
- Before startup, inspect connector seating and confirm full backplane engagement.
- After installation, verify DCN communication status through system diagnostic tools.
- Finally, record the module serial number and rack location for future maintenance and asset tracking.
