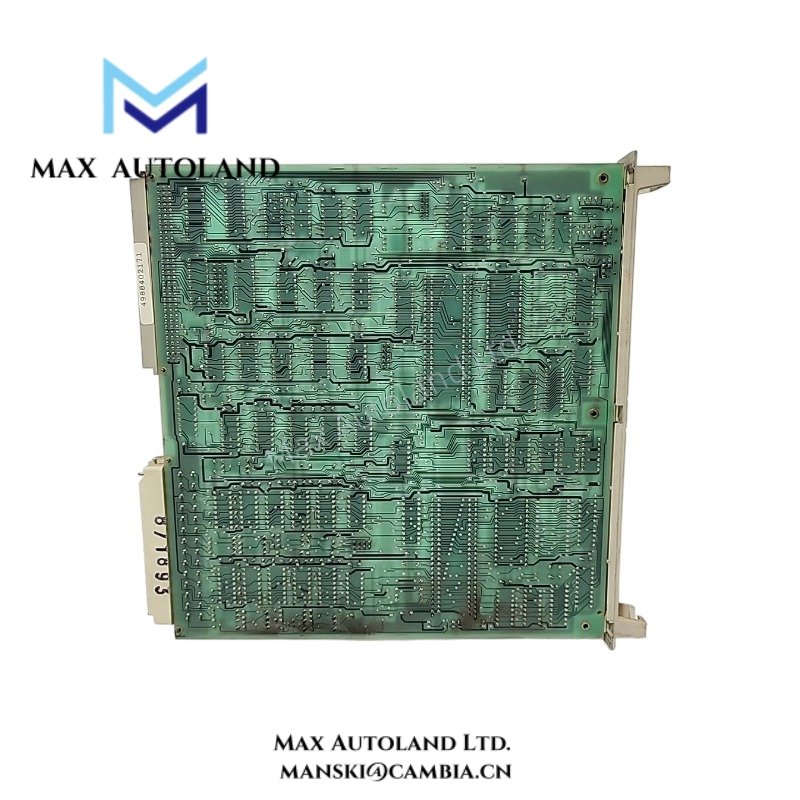

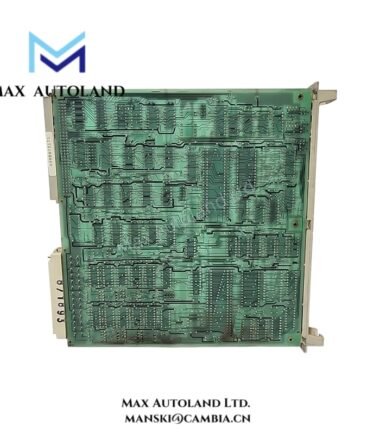

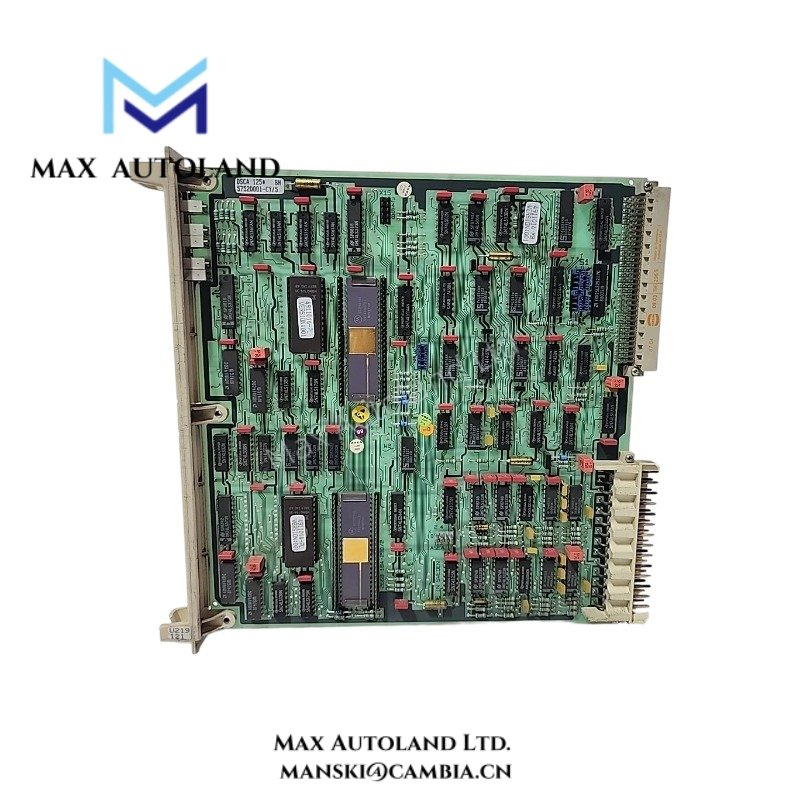

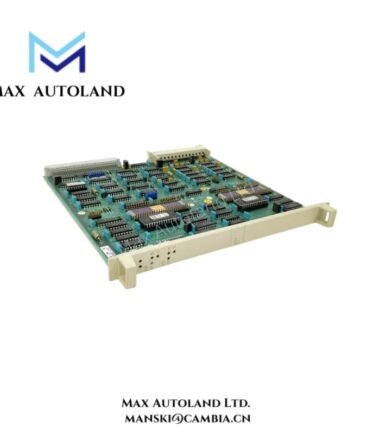

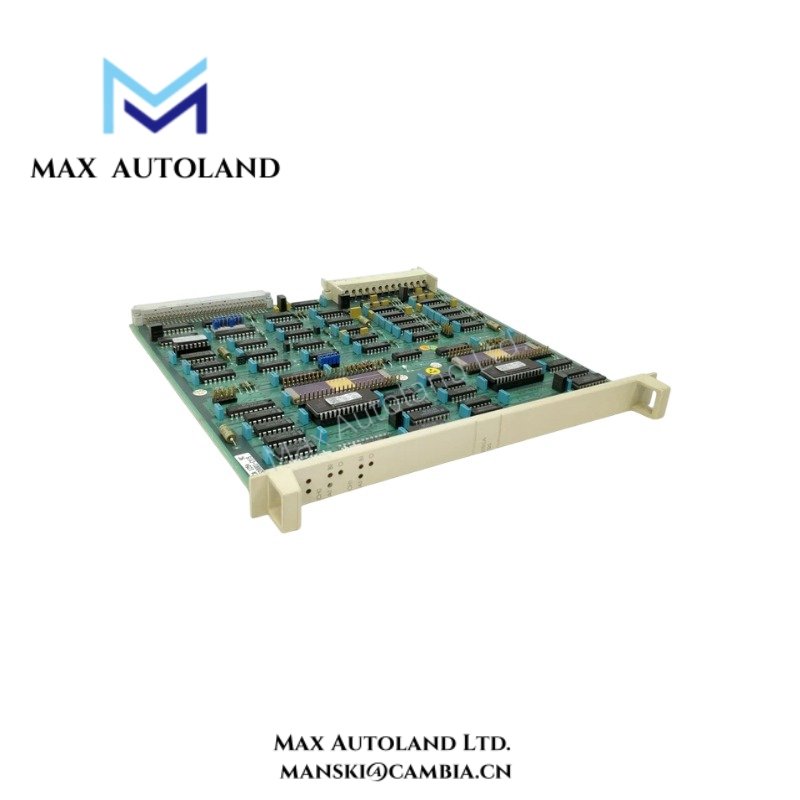

ABB Master DSCA125 Communications Board

Overview

Configured for communication interface processing in ABB Master control networks, the ABB DSCA125 (DSCA125 Communications Board) provides direct electrical execution. The board handles data exchange between controller subsystems and associated communication channels within ABB Master platform architectures through backplane-connected hardware interfaces.

Suffix Breakdown & Model Matrix

The supplied documentation identifies DSCA125 as a fixed model communications board. No official suffix matrix or variant breakdown is specified in the referenced material.

Hardware Specifications

Backplane Bus Communication Architecture

The DSCA125 operates as a communication-oriented board installed within the ABB Master system hardware structure. Data transfer occurs through the system backplane, allowing controller resources and connected modules to exchange operational information through deterministic internal communication paths.

Firmware compatibility should be verified against the target controller revision before installation. Communication boards within backplane-based architectures depend on supported hardware and firmware combinations to maintain proper data exchange and startup initialization sequences.

Frequently Asked Questions

Q: Can the DSCA125 be inserted or removed while the system is energized?
A: Hot-swap capability is not specified in the available documentation. Follow the controller cabinet maintenance procedure and isolate power before removing or installing the board.

Q: Does the DSCA125 require firmware compatibility verification?
A: Yes. Communication boards should be matched with supported controller firmware and system software revisions to ensure successful initialization and communication operation.

Q: Are special field signal wiring practices required for this board?
A: Communication and signal cables should be routed separately from power conductors. Shield termination should follow the cabinet grounding standard used by the installation.

Field Installation Guidelines

• Verify board type and slot assignment before installation.
• De-energize the rack when inserting or removing the module unless ABB documentation explicitly permits online replacement.
• Inspect edge connectors and backplane contacts for contamination or mechanical damage.
• Maintain cabinet grounding continuity before connecting communication wiring.
• Route communication cables separately from motor feeders, contactor wiring, and high-current conductors.
• Observe electrostatic discharge protection procedures when handling the board.
• Confirm communication status and controller diagnostics after commissioning.
