Overview

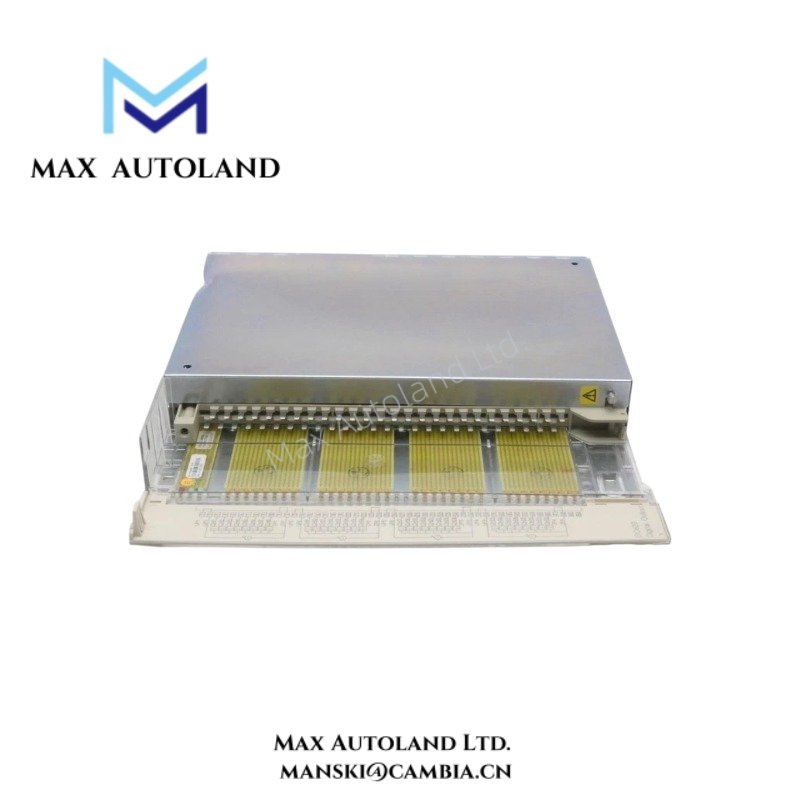

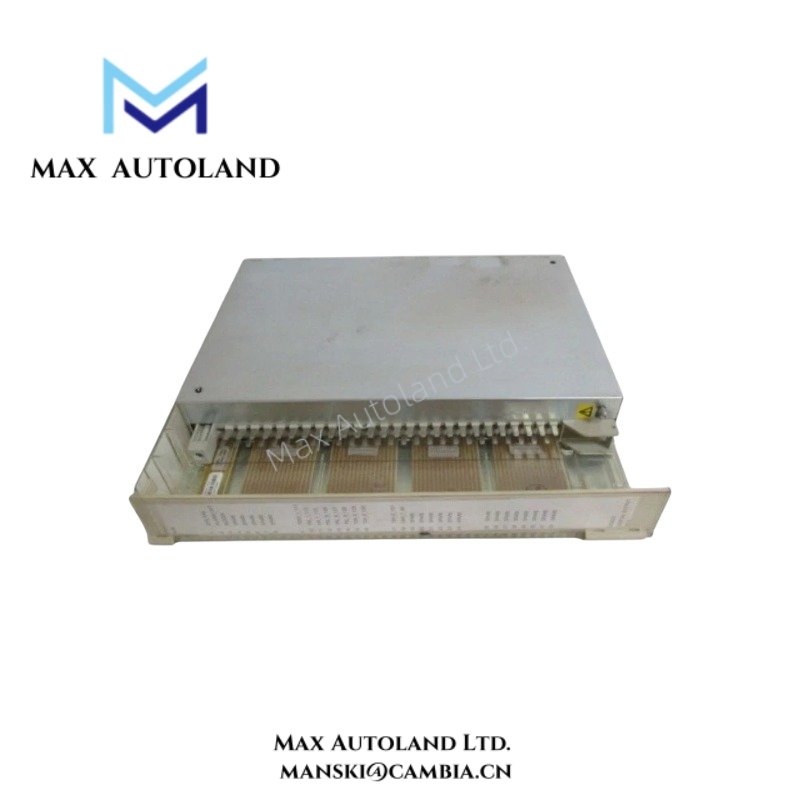

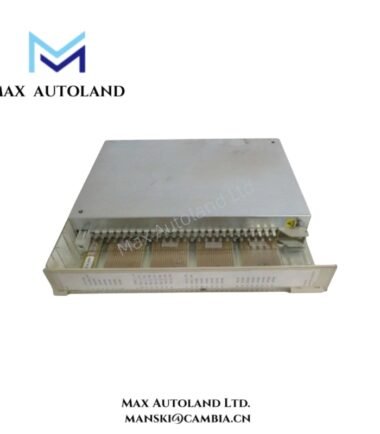

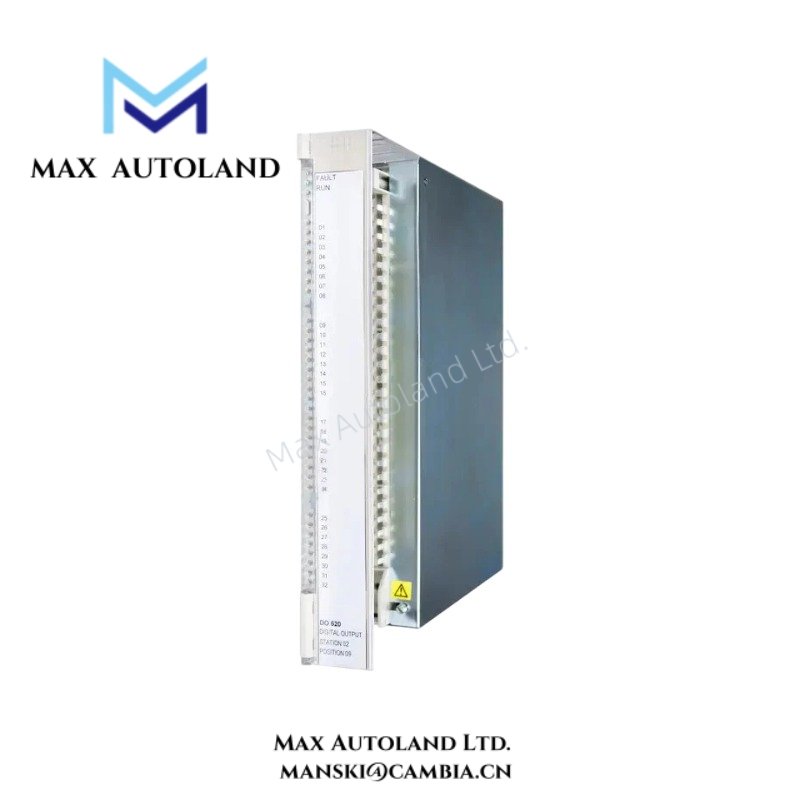

The ABB DO620 3BHT300009R1 serves as the primary DO620 Digital Output Module utilized to execute discrete output signal switching across Advant Master platforms. The module converts controller output commands into field-level digital switching signals and transfers output status information through the system backplane architecture.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DO620 3BHT300009R1 |
| Brand | ABB |
| Product Type | Digital Output Module |
| Series | Advant Master |
| Function | Discrete output signal processing |
| Output Type | Digital outputs |
| Signal Direction | Controller to field devices |
| Mounting Method | Rack-mounted module |
| Origin | Sweden |
| Weight | Approx. 0.3 kg |
| Dimensions | Not specified in available documentation |
| Operating Temp | 0 deg C to +55 deg C |
| Power Consumption | Not specified in available documentation |
| System Interface | Advant Master backplane |
| Status Monitoring | Output channel diagnostics and status indication |
Backplane Communication and I/O Density Scaling
The DO620 exchanges output data with the controller through the Advant Master backplane infrastructure. As system I/O requirements increase, engineers can expand output capacity by installing additional output modules within supported rack configurations.
The module processes discrete output commands locally while the controller manages application execution and logic calculations. Consequently, output response depends on controller scan execution, communication update cycles, and module operating status.
Frequently Asked Questions
Q: Can the DO620 perform output switching without a host controller?
A: No. The module requires command data from a compatible Advant Master controller. It does not execute independent control logic.
Q: Does the DO620 support hot-swap replacement?
A: Available documentation does not explicitly define hot-swap operation. Therefore, technicians should remove system power before inserting or removing the module unless platform-specific procedures allow energized replacement.
Q: Should output wiring be disconnected before module replacement?
A: Yes. Maintenance personnel should isolate field power sources and verify safe electrical conditions before disconnecting output wiring or replacing the module.
Field Installation Guidelines
- First, verify the module part number and hardware revision against maintenance records.
- Next, isolate cabinet and field power before installation activities.
- Inspect terminal connections, module connectors, and backplane contacts for damage or contamination.
- Maintain proper grounding and shielding practices throughout the control cabinet.
- Route output wiring separately from communication circuits where practical.
- After installation, verify output channel status indications and controller diagnostics.
- Finally, confirm correct field device operation and document all maintenance actions.
