Overview

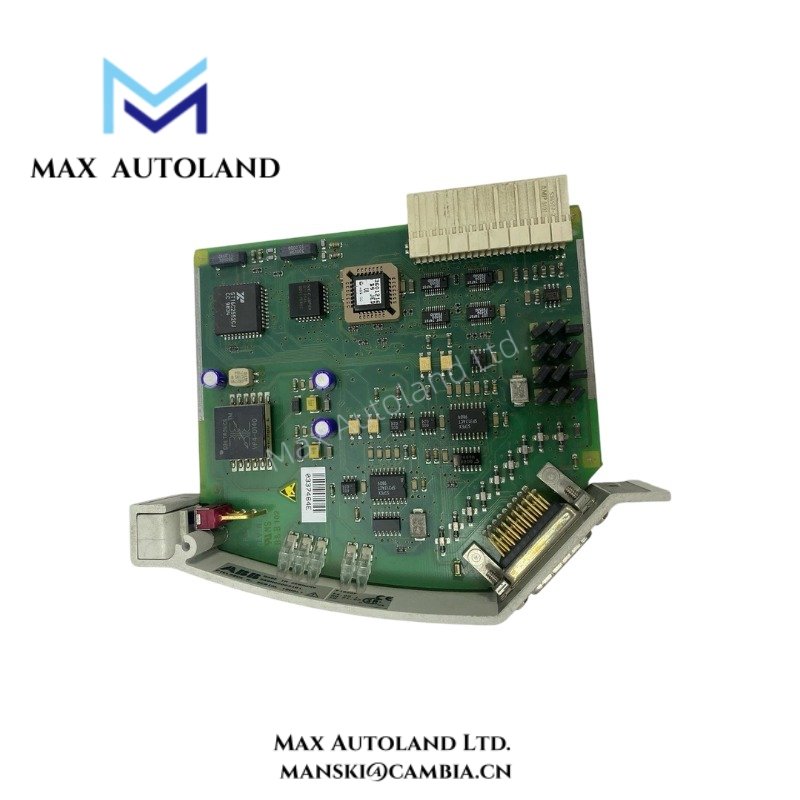

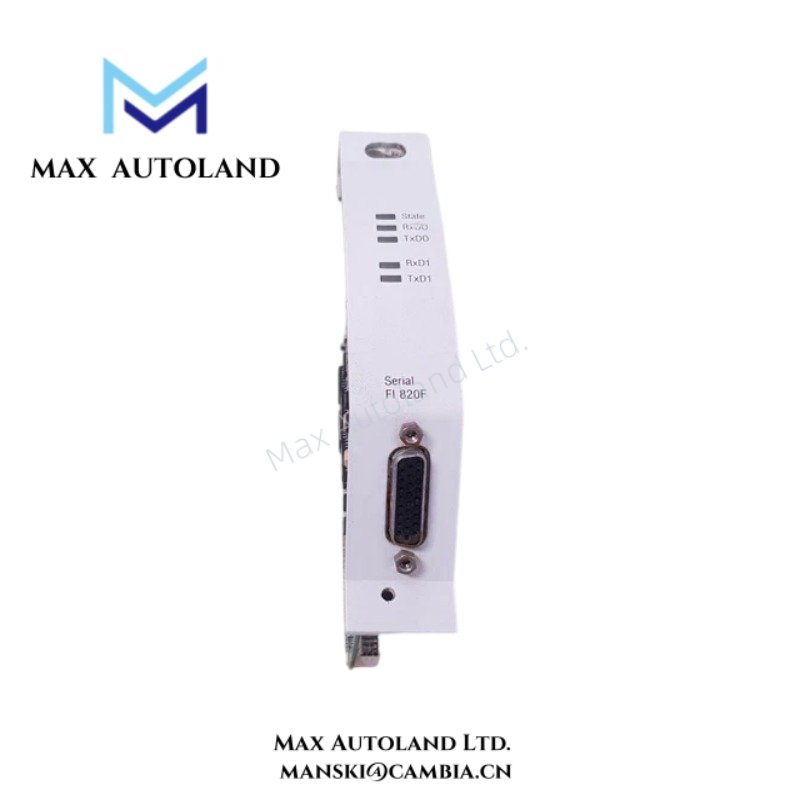

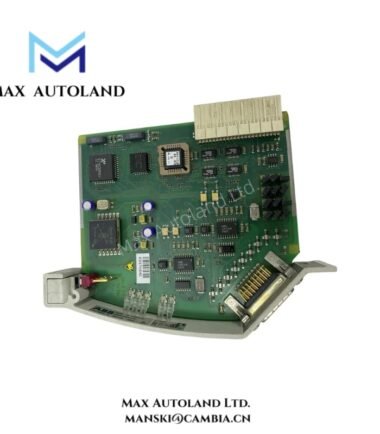

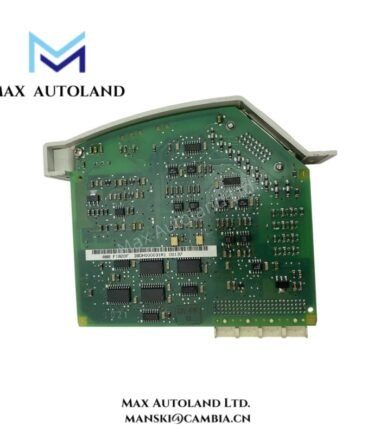

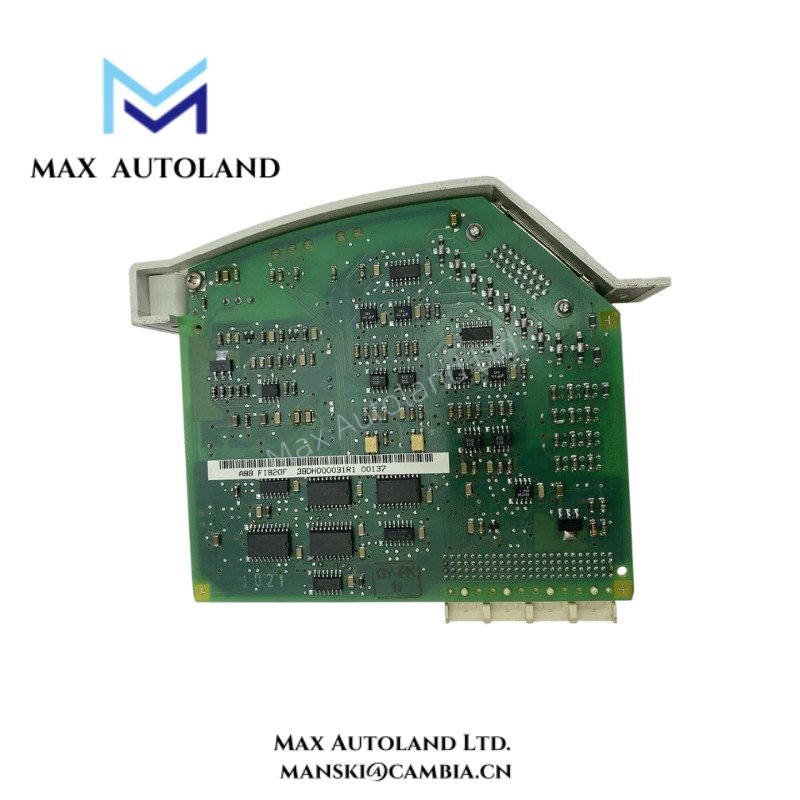

Configured for fieldbus communication processing in ABB Advant Master and Freelance control systems, the ABB FI820F 3BDH000031R1 (FI820F Fieldbus Module) provides direct data exchange between field-level communication networks and the controller environment. The module manages protocol communication functions and transfers process data through the system backplane.
Suffix Breakdown & Model Matrix
The designation FI820F 3BDH000031R1 represents a complete ABB ordering reference. Available documentation identifies the module as the FI820F Fieldbus Module. No official suffix matrix or option breakdown is specified.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FI820F 3BDH000031R1 |
| Brand | ABB |
| Product Type | Fieldbus Modules |
| Series | Advant Master / Freelance |
| Function | Fieldbus communication interface |
| Communication Role | Process data exchange and network integration |
| Mounting Method | Rack-mounted module |
| Origin | Sweden |
| Weight | Approx. 0.25 kg |
| Dimensions | Approx. 120 mm x 20 mm x 135 mm |
| Operating Temp | 0 deg C to +55 deg C |
| Power Consumption | Approx. 5 W |
| Interface Type | Fieldbus communication interface |
| System Integration | Controller backplane communication |
Firmware Flash Compatibility
The FI820F exchanges communication data through the host controller architecture. Therefore, controller firmware revision, communication stack version, and module hardware revision influence operational compatibility.
Before installation or replacement, maintenance personnel should verify firmware support within the target system release. In addition, engineers should confirm that the controller configuration database contains the corresponding module definition. Proper firmware alignment helps maintain communication initialization and network synchronization during startup.
Frequently Asked Questions
Q: Can the FI820F operate as a standalone communication device?
A: No. The module requires installation within a supported ABB control platform and exchanges data through the host backplane architecture.
Q: Does the FI820F support hot-swap replacement?
A: Available documentation does not explicitly specify hot-swap capability. Therefore, technicians should isolate system power before module removal or installation unless the host platform documentation permits online replacement.
Q: Should firmware compatibility be checked before replacement?
A: Yes. Maintenance personnel should verify controller firmware, communication software revision, and module compatibility before commissioning the replacement unit.
Field Installation Guidelines
- First, verify the module part number and hardware revision against the project documentation.
- Next, isolate cabinet power before inserting or removing the module.
- Inspect module connectors and backplane contacts for contamination or mechanical damage.
- Maintain proper grounding practices for all communication and cabinet shield connections.
- Route communication wiring separately from motor power and high-current conductors where possible.
- After installation, confirm controller recognition and communication status indications.
- Finally, document all configuration changes and maintenance activities within the system records.
