Overview

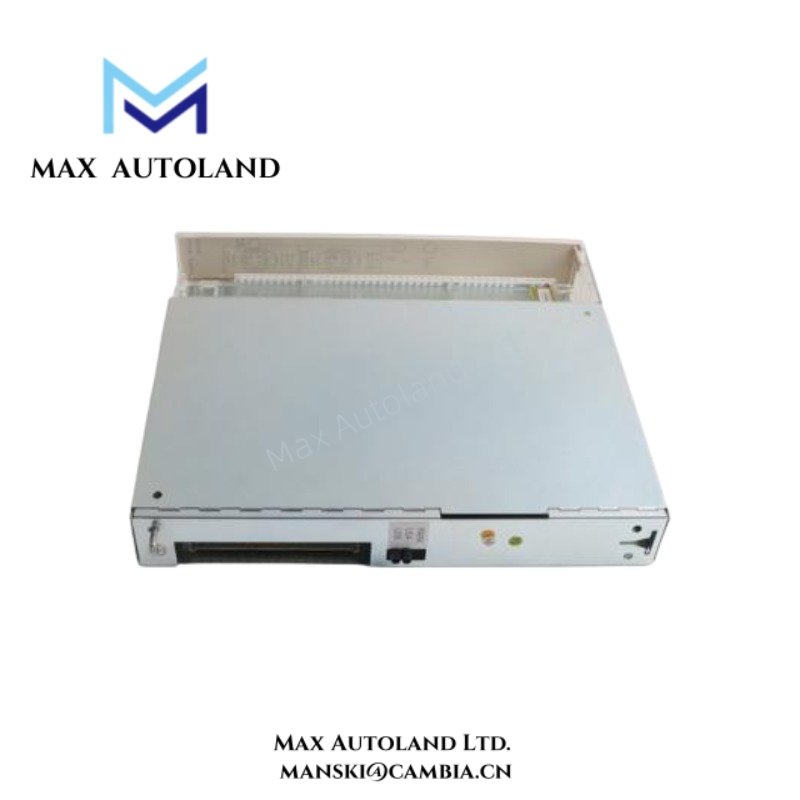

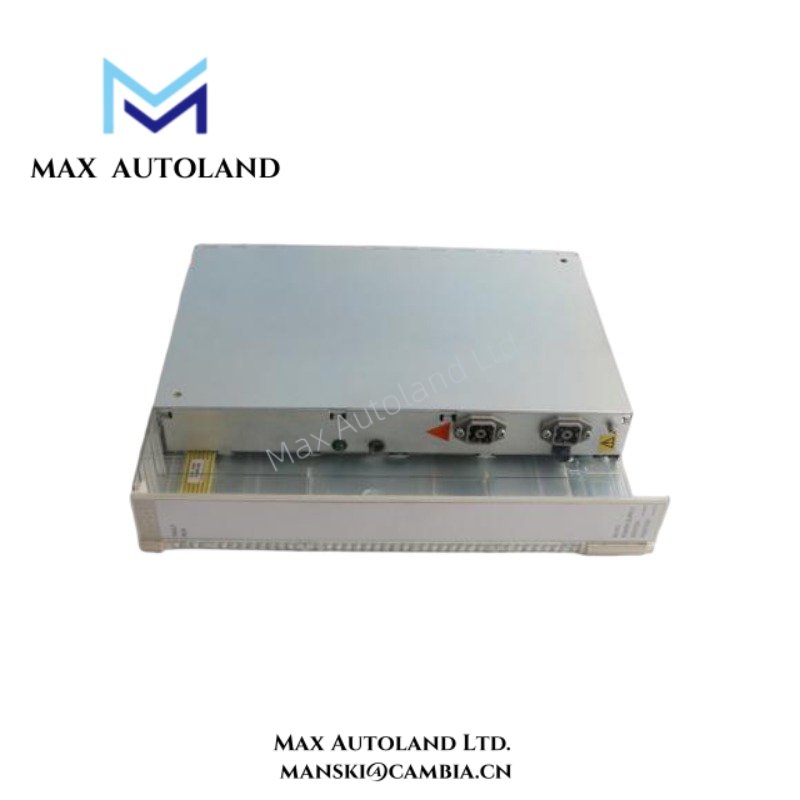

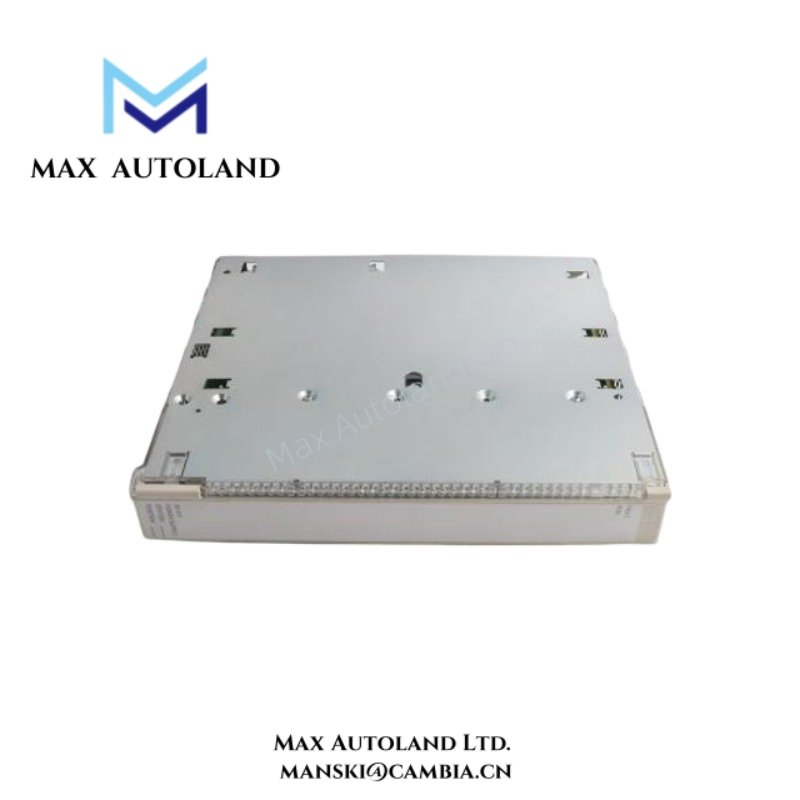

Configured for regulated power conversion and system power distribution in Advant Master control systems, the ABB SA610 3BHT300019R1 (SA610 Power Supply Module) provides direct electrical power to controller, communication, and I/O assemblies. The module converts incoming supply power into the internal operating voltages required by the rack-mounted control architecture.
Suffix Breakdown & Model Matrix
The designation SA610 3BHT300019R1 represents a complete ABB ordering reference. Available documentation identifies the unit as an SA610 Power Supply Module. No official suffix matrix or variant breakdown is specified.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SA610 3BHT300019R1 |
| Brand | ABB |
| Product Type | Power Supply Module |
| Series | Advant Master |
| Function | System power conversion and distribution |
| Module Category | Rack-mounted power supply |
| Input Function | Supply voltage conversion |
| Output Function | Internal system power distribution |
| Origin | Sweden |
| Weight | Approx. 0.8 kg |
| Dimensions | Not specified in available documentation |
| Operating Temp | 0 deg C to +55 deg C |
| Power Consumption | Not specified in available documentation |
| Installation Method | Rack-mounted |
Firmware Flash Compatibility
Although the SA610 does not execute application firmware, it supports hardware that depends on firmware-controlled operation. Therefore, maintenance personnel should verify that replacement hardware matches the installed system revision and power requirements.
In addition, engineers should confirm compatibility between the power supply configuration and the connected controller hardware. Proper hardware matching helps maintain startup sequencing and stable operation throughout the Advant Master backplane infrastructure.
Frequently Asked Questions
Q: Can the SA610 operate independently outside an Advant Master rack?
A: The module is designed for integration within a compatible ABB control system architecture. System installation requires the associated rack and supporting hardware.
Q: Does the SA610 support hot replacement?
A: Available documentation does not specify hot-swap functionality. Therefore, technicians should isolate incoming power before removing or installing the module.
Q: Should output voltages be verified after replacement?
A: Yes. Maintenance personnel should verify power supply status indications and confirm correct operating voltages before returning the system to service.
Field Installation Guidelines
- First, verify the module part number and hardware revision before installation.
- Next, isolate all incoming power sources and follow plant lockout procedures.
- Inspect connectors, terminals, and backplane contacts for contamination or physical damage.
- Ensure proper grounding between the cabinet, rack, and power distribution system.
- Route power conductors separately from communication wiring whenever possible.
- After installation, verify module status indicators and system startup behavior.
- Finally, confirm normal operation of connected controllers and I/O modules and document the maintenance activity.
