Overview

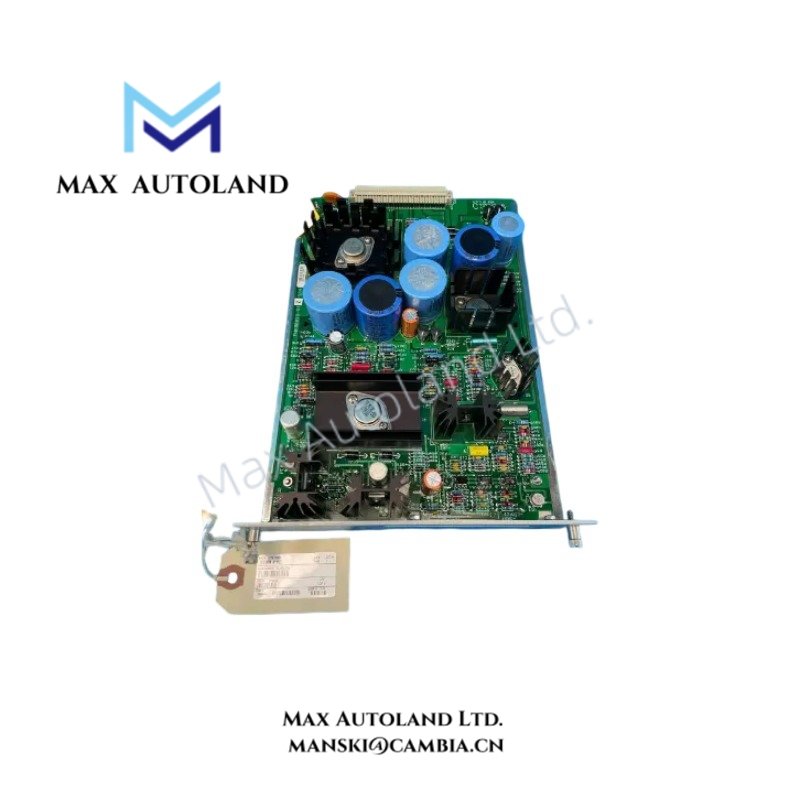

Configured for power supply monitoring in the Bently Nevada 3300 Series, the Bently Nevada 88194-01 (88194-01 Power Supply Monitor System Module) provides the rack with power supply unit functionality and power-status monitoring. The module operates within the 3300/12 system architecture and supports the electrical supply path used by installed monitoring modules. (AutoModuleXpert Ltd.)
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 88194-01 |
| Brand | Bently Nevada |
| Product Type | Power Supply Monitor System Module |
| Series | 3300 Series |
| System | 3300/12 |
| Core Function | Power supply and power-status monitoring |
| Origin | USA |
| Physical Interface | Rack-mounted power supply module |
| Application | 3300 machinery monitoring rack |
The 88194-01 is identified in product references as a Bently Nevada 3300/12 power supply unit or power supply monitor system module. (AutoModuleXpert Ltd.)
Machinery Protection Power Integrity
The 88194-01 operates on the power-supply side of the 3300 monitoring architecture rather than directly processing vibration or temperature sensor inputs. Therefore, its function relates to the electrical operating condition of the monitoring rack.
In a machinery protection installation, downstream monitor modules can process signals from eddy-current proximity probes, velocity sensors, and other measurement devices. The power supply module supports the electrical supply path for those monitoring functions. However, the available data does not establish that the 88194-01 itself performs eddy-current probe scaling, gap-voltage measurement, or vibration signal processing.
The module also supports power-status supervision within the 3300/12 architecture. Consequently, abnormal power conditions can be identified through the system’s power monitoring functions rather than through direct mechanical measurement by the 88194-01. (Top Brands PLC)
Frequently Asked Questions
Q: Is the 88194-01 a vibration input module?
A: No. The available product data identifies it as a power supply unit or power supply monitor system module for the Bently Nevada 3300 system. (AutoModuleXpert Ltd.)
Q: Does the 88194-01 directly process eddy-current probe signals?
A: The available data does not identify probe-input processing as a function of this module. Eddy-current signal processing belongs to dedicated monitoring modules within the 3300 architecture.
Q: Is the 88194-01 associated with the 3300/12 system?
A: Yes. Multiple product references identify 88194-01 with the Bently Nevada 3300/12 power supply system. (OCO Industrial)
Field Installation Guidelines
- Install the module only in a compatible Bently Nevada 3300 rack and position.
- Confirm the rack configuration and 3300/12 system compatibility before energizing the assembly.
- Inspect the module, connector interface, and rack contacts for contamination, mechanical damage, or corrosion.
- Seat the module fully in the designated rack position before applying system power.
- Keep power wiring separated from high-level vibration and other low-level measurement wiring where the rack installation permits.
- Maintain the rack grounding and bonding arrangement specified for the complete 3300 installation.
- Do not assume hot-swap capability unless the applicable Bently Nevada system documentation explicitly permits live module replacement.
- After installation, verify the power-status indication and confirm that the connected monitoring modules enter their expected operating state.
