Overview

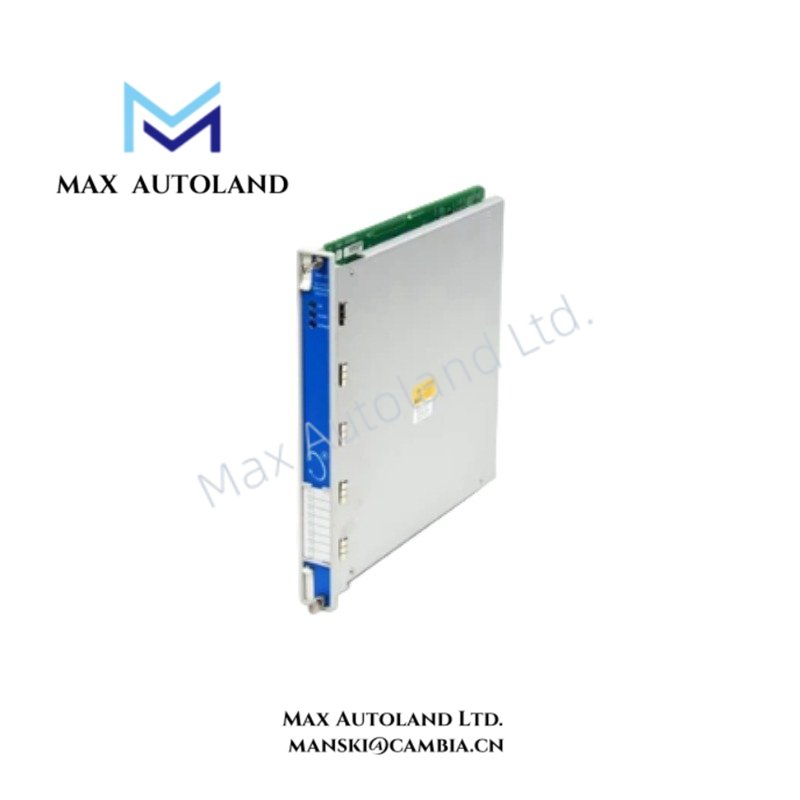

Configured for four-channel vibration and position signal monitoring in the Bently Nevada 3500 Monitoring System, the Bently Nevada 79512-03 (3500/42M analog assembly) provides the analog signal-processing hardware for proximity and seismic transducer inputs. The assembly supports signal conditioning for machinery vibration and position measurements. (AutoModuleXpert Ltd.)
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 79512-03 |
| Base Model | 3500/42M |
| Brand | Bently Nevada |
| Origin | USA |
| Product Series | 3500 Series |
| Product Type | Proximitor Seismic Monitor Assembly |
| Assembly Type | Analog Assembly / Printed Wiring Assembly |
| Input Channels | 4 independent channels |
| Compatible Transducers | Proximity, velocity, or acceleration transducers |
| Measurement Functions | Vibration and position measurement |
| Power Consumption | 7.7 W for the 3500/42M monitor |
| Rack Requirement | 1 full-height slot |
The 79512-03 designation identifies the analog assembly used with the 3500/42M monitor. The complete monitor function depends on the associated 3500 system hardware and rack configuration. (AutoModuleXpert Ltd.)
Machinery Signal Processing
The 3500/42M architecture accepts signals from proximity and seismic transducers. The four input channels process vibration or position-related signals for machinery monitoring. Therefore, sensor selection and channel configuration must match the installed transducer type and measurement requirement. (AutoModuleXpert Ltd.)
For proximity probe applications, the installed probe system establishes the electrical relationship between shaft position, probe gap, and monitor input. For seismic applications, the transducer type determines the physical quantity presented to the monitor, such as velocity or acceleration.
The monitor compares processed measurements with configured alarm limits. Consequently, the alarm behavior depends on the complete 3500/42M configuration rather than on the 79512-03 analog assembly alone.
Frequently Asked Questions
Q: Is 79512-03 a complete 3500/42M monitor?
A: No. Available technical listings identify 79512-03 as the analog assembly or PWA associated with the 3500/42M. The complete monitoring function requires the corresponding 3500 system hardware. (AutoModuleXpert Ltd.)
Q: How many measurement channels does the associated 3500/42M monitor support?
A: The 3500/42M supports four independent input channels for proximity, velocity, or acceleration transducers. (AutoModuleXpert Ltd.)
Q: Can 79512-03 be treated as a standalone proximity sensor?
A: No. It is an electronic analog assembly within the monitoring system. A complete measurement loop also requires the appropriate transducer, cabling, rack hardware, and compatible monitor configuration.
Field Installation Guidelines
Install the assembly only in the specified Bently Nevada 3500 rack and compatible monitor configuration. Verify the rack position and module identification before insertion.
Confirm that the connected transducers match the configured channel type. Route sensor wiring separately from high-current power conductors where practical to reduce electrical interference.
Maintain the specified cable shielding and grounding arrangement for the installed transducer system. Avoid unnecessary shield connections that can create ground-current paths.
Before energizing the rack, verify connector engagement, wiring polarity where applicable, and channel assignments against the system documentation. After installation, confirm that each channel receives the expected physical measurement and that configured alarm states correspond to the intended machinery protection logic.
