Overview

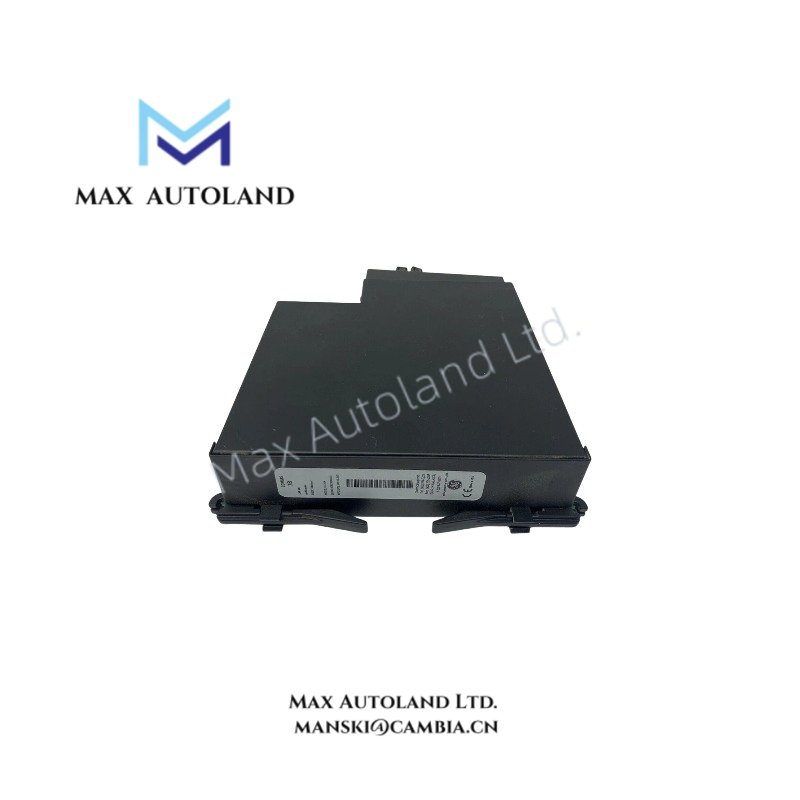

Configured for protection and control of electrical substation assets in IEC 61850 based automation networks, the GE UR7BH (UR7BH Universal Relay module) provides direct physical/electrical execution within modular protection and control architectures.
HardwareSpecifications
| Parameter | Specification |
|---|---|
| ModelBrand | GE UR7BH |
| Origin | United States |
| Weight | 0.35kg |
| Dimensions | Not specified (19 in rack compatible chassis class) |
| OperatingTemp | -40 degC to +60 degC |
| PowerConsumption | < 30 W typical (system dependent) |
| PowerSupply | 24-48 VDC / 125-250 VDC / 100-240 VAC |
| CT Inputs | 1 A or 5 A nominal (model dependent) |
| VT Inputs | 0-300 VAC phase to neutral |
| Digital Inputs | Opto-isolated, configurable thresholds |
| Digital Outputs | Form A trip, Form C signal, latching relays |
| Communication Interfaces | Ethernet 10/100 Mbps, fiber optic, RS232/RS485 |
| Protocol Support | IEC 61850, DNP3, Modbus, IEC 60870-5-104 |
Backplane Bus Communication and Deterministic Network Integration
The GE UR platform implements modular backplane communication with high-speed internal data exchange between CPU, protection, and I/O modules. Deterministic behavior is maintained through synchronized scanning cycles and firmware-controlled interrupt handling. External integration supports IEC 61850 GOOSE messaging alongside legacy SCADA protocols. Ethernet-based communication stacks support deterministic routing behavior in switched industrial networks, including VLAN segmentation and priority tagging. Firmware flash compatibility is maintained across UR family revisions, allowing staged upgrades without altering protection logic configuration sets.
FrequentlyAskedQuestions
Q: Can the UR7BH CPU module be replaced without disturbing I/O wiring?
A: The architecture supports modular replacement; however, configuration reloading is required after CPU swap due to internal mapping tables.
Q: Does the UR7BH support hot-swap of communication modules?
A: Communication modules are generally not hot-swappable under energized conditions; system shutdown is required to maintain backplane integrity.
Q: What is the effect of firmware mismatch between protection modules?
A: Mixed firmware revisions may lead to configuration rejection or reduced protocol interoperability, especially in IEC 61850 datasets.
FieldInstallationGuidelines
Backplane connectors must be fully seated to ensure stable internal bus communication. Shielded Ethernet cables should be grounded at a single cabinet point to avoid ground loop currents. CT and VT wiring shall be routed separately from low-level digital input lines to reduce induced noise coupling. Terminal torque should follow GE Multilin cabinet assembly standards. Fiber optic links must maintain bend radius limits to prevent attenuation losses. All configuration uploads should be performed via secure engineering workstation with validated firmware alignment.
