Overview
Specification
| Parameter | Specification |
|---|---|

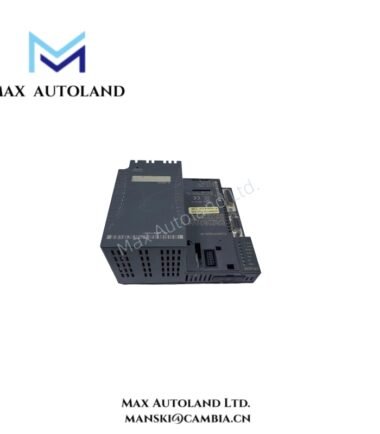

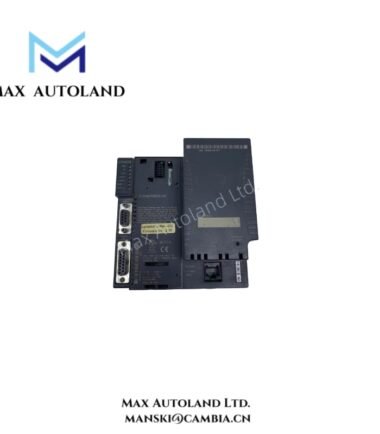

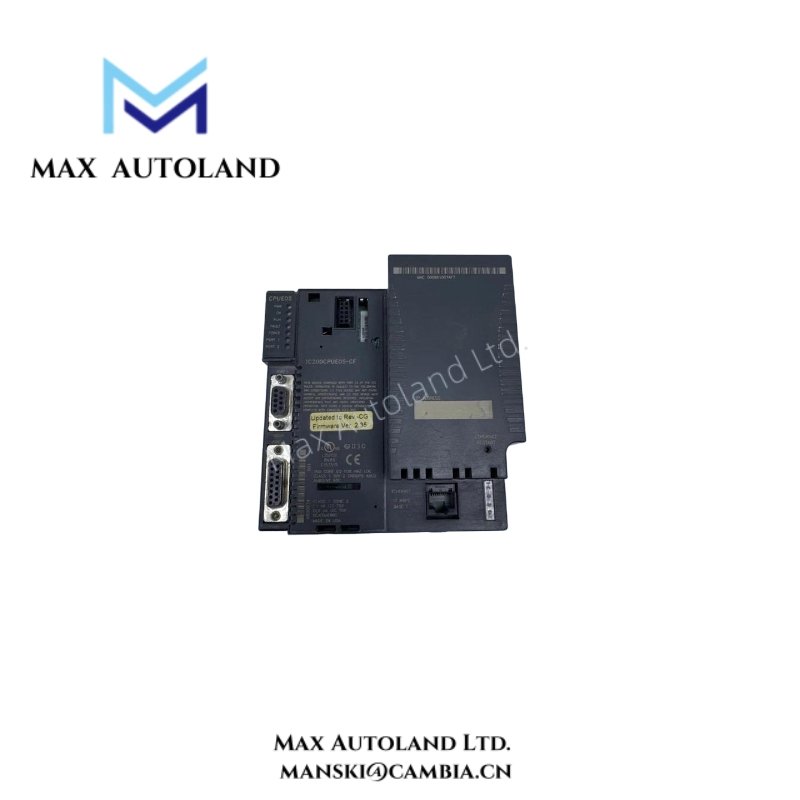

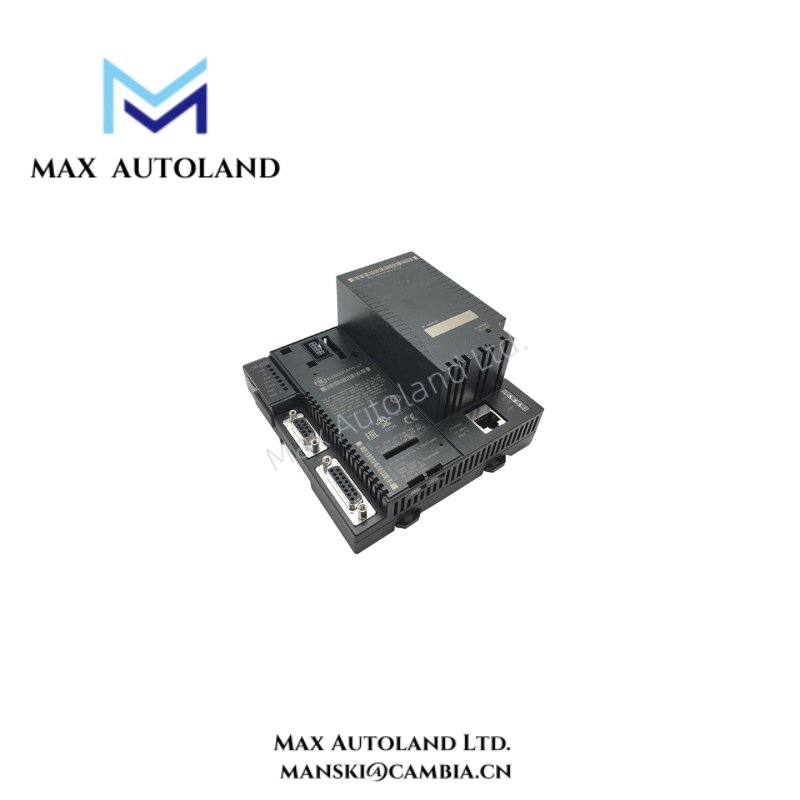

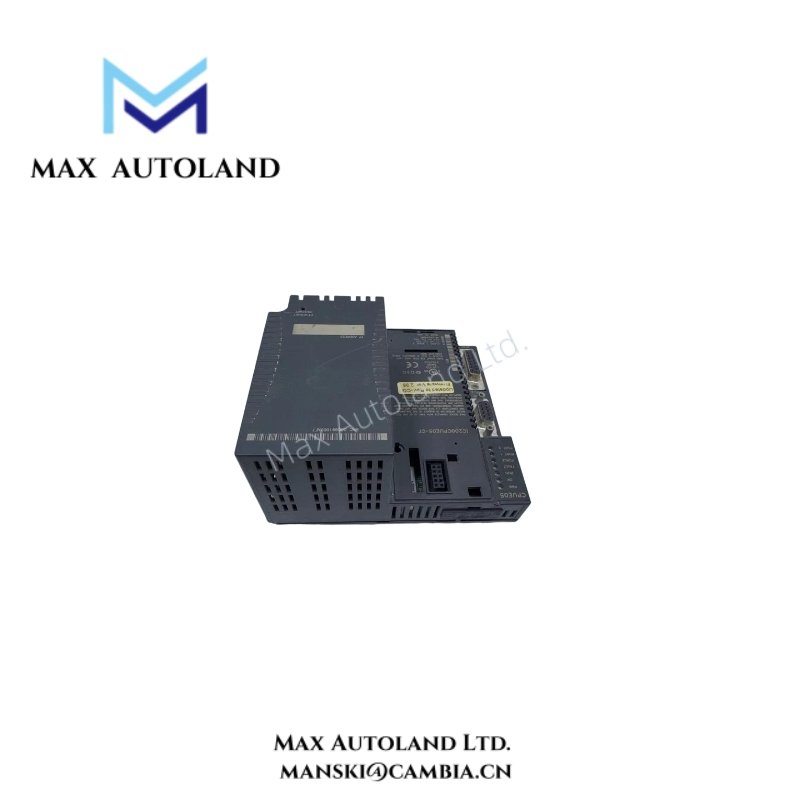

| Model | IC200CPUE05 |
| Module Type | VersaMax CPU Module |
| Processor | 16-bit microprocessor, high-speed deterministic execution |
| User Memory | 64 KB, configurable for complex program storage |
| System Memory | 32 KB, firmware and system operation data |
| Program Storage | Non-volatile memory, retains program during power loss |
| Maximum I/O Points | Up to 256 points via VersaMax digital and analog modules |
| Digital I/O Scan Rate | 2 ms per 100 instructions (typical) |
| Analog I/O Support | 0–10 V, 4–20 mA, compatible with VersaMax analog modules |
| Communication Interfaces | DH+ (Data Highway Plus), Modbus RTU |
| Power Supply | 5 VDC ±5%, 1.3 A typical |
| Power Consumption | Approximately 6.5 W |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting | DIN rail or panel mount |
| Dimensions | 122 mm (H) x 112 mm (W) x 35 mm (D) |
| Certifications | CE, UL Listed |
| Status Indicators | LEDs for RUN, ERROR, COMM |
| Redundancy | Optional backup CPU for critical applications |
| Firmware Upgrade | Via PC or network for simplified maintenance |
| Environmental Protection | Designed to resist vibration, electrical noise, and industrial stress |
| Typical Applications | Factory automation, process control, packaging, material handling |
FAQ
It provides 64 KB of configurable user memory for complex program storage.Q2: Which communication protocols are supported?
It supports DH+ and Modbus RTU protocols for flexible industrial network integration.
Q3: Can it handle expansion modules?
Yes, it supports up to 256 I/O points with compatible VersaMax modules.
Q4: What is the typical scan rate?
The module executes 100 instructions in approximately 2 milliseconds under normal conditions.
Q5: Is it suitable for harsh industrial environments?
Yes, it operates reliably between 0°C to 60°C and is resistant to vibration and electrical noise.
