ABB RB601 Dummy Module

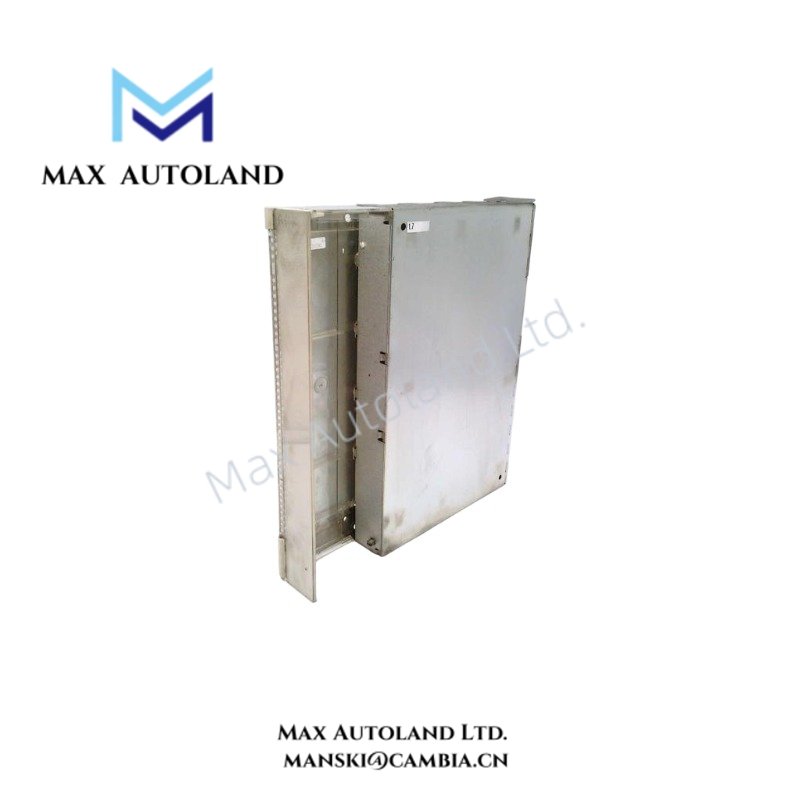

Configured for vacant slot coverage in ABB Advant Controller 160 subracks, the ABB RB601 (3BSE002803R1) (RB601 Dummy Module) provides direct physical protection and mechanical completion. The module occupies an unused rack position without performing active signal processing, logic execution, or electrical control. It helps maintain enclosure integrity around unused subrack locations and protects exposed internal areas from unintended physical access.
Suffix Breakdown & Model Matrix
The supplied documentation identifies RB601 (3BSE002803R1) as a fixed single product configuration. No official suffix breakdown or configurable model matrix is provided in the available technical information.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | RB601 |
| Order Number | 3BSE002803R1 |
| Brand | ABB |
| Product Type | Dummy Module |
| System Family | ABB Advant OCS / Advant Controller 160 |
| Primary Function | Covers vacant or unused subrack slots |
| Installation Location | Compatible ABB industrial control subracks |
| Weight | 1 lbs 15.0 oz (0.9 kg) |
| Dimensions | 2.0 in x 10.0 in x 10.0 in (5.1 cm x 25.4 cm x 25.4 cm) |
| Shipping Location | Webster, NY, USA |
ABB Backplane and Rack Configuration
The RB601 is a passive hardware component and does not provide backplane bus communication, deterministic network processing, or active I/O density scaling. Instead, it occupies an unused physical position within the Advant Controller 160 rack structure. Therefore, installation planning should confirm that the selected slot does not require an active module or a system-specific termination component.
The module also supports orderly rack configuration by closing unused positions and reducing direct exposure around internal rack areas. Furthermore, technicians should preserve the intended mechanical arrangement when adding or removing active modules from adjacent positions.
Frequently Asked Questions (FAQ)
Q: Does the ABB RB601 (3BSE002803R1) perform signal processing or control functions?
A: No. The RB601 is identified as a dummy module for vacant slot coverage. The supplied information does not specify any active signal processing, logic execution, or control function.
Q: Does the RB601 require a power supply connection?
A: No power consumption or electrical operating requirement is specified in the supplied documentation. Installation should follow the applicable ABB Advant Controller 160 rack documentation.
Q: Can the RB601 be installed in any unused industrial rack slot?
A: No. Compatibility should be confirmed with the ABB Advant OCS or Advant Controller 160 subrack configuration. Physical fit alone does not confirm system compatibility.
Field Installation Guidelines
- Verify that the target position is an unused slot approved for dummy module installation.
- Isolate equipment and follow applicable site lockout and electrical safety procedures before modifying the subrack.
- Confirm that adjacent active modules remain correctly seated after installing or removing the RB601.
- Do not force the module into a slot intended for a different mechanical or electrical configuration.
- Keep the rack interior free from loose hardware, cable fragments, and other foreign objects during installation.
- Maintain the enclosure and grounding arrangement specified for the ABB control cabinet.
- Inspect the installed module for correct alignment and secure mechanical seating before returning the system to service.
