Overview

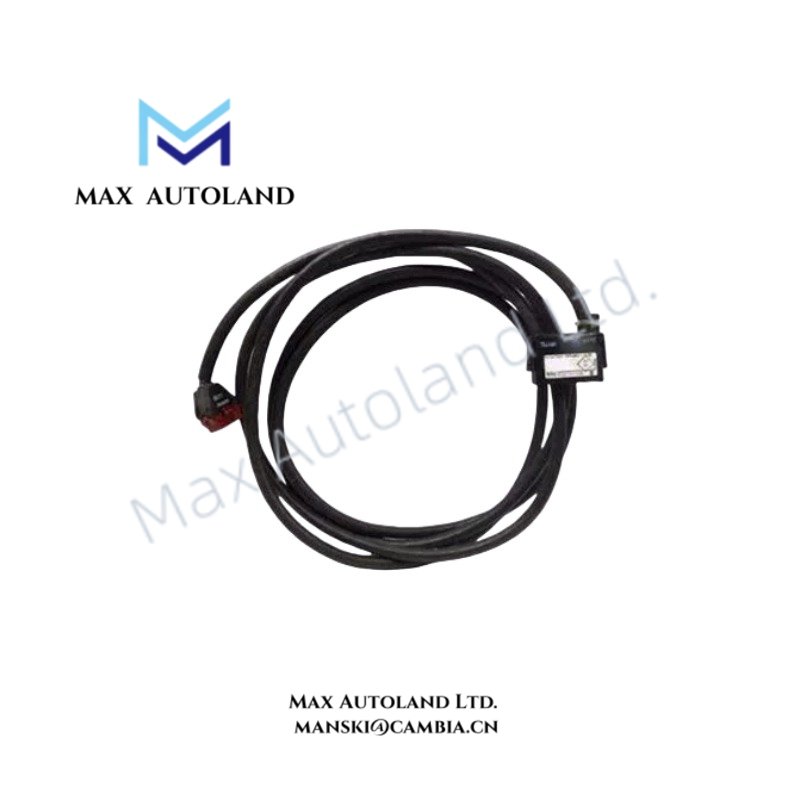

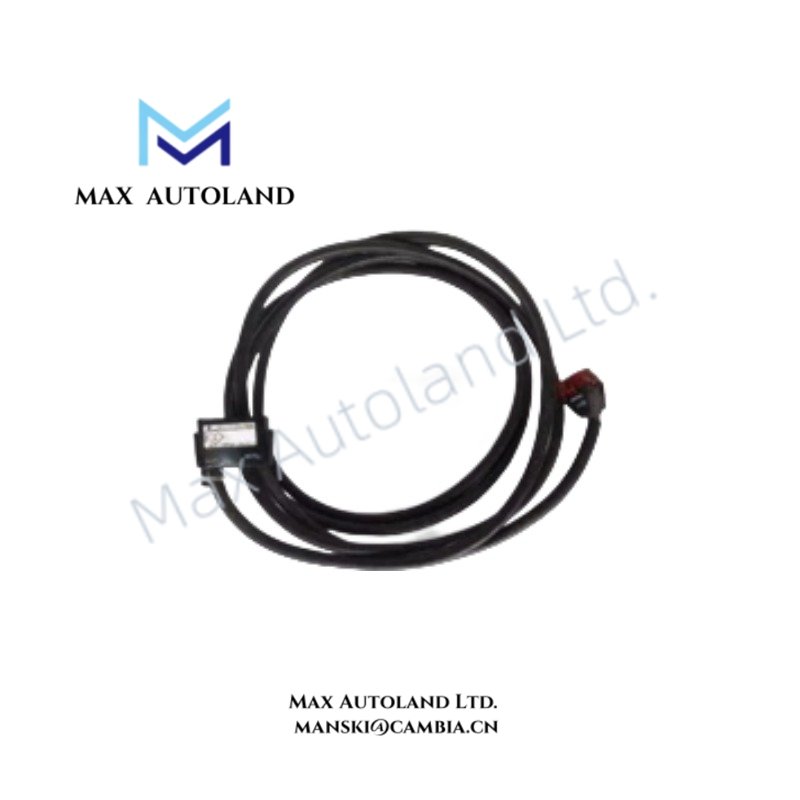

Configured for NIS to NTCL communication connection in INFI-Net system networks, the ABB NKLM01-15 INFI-Net Interface Cable) provides direct physical signal transmission through a prefabricated cable assembly. The cable supports interface connection between ABB INFI-Net communication components with a 15 Ft PVC cable construction.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | NKLM01-15 |
| Brand | ABB |
| Product Type | Prefabricated Cable |
| Communication Function | INFI-Net Interface Cable |
| Connection Application | Connects NIS to NTCL |
| Cable Length | 15 Ft |
| Cable Material | PVC insulated cable |
| Origin | Not specified |
| Weight | 0 kg (catalog data) |
| Dimensions | 50.8 mm depth x 307.34 mm height x 307.34 mm width |
| Cable Diameter | 0.0508 mm (catalog data) |
| Operating Temp | Not specified |
| Power Consumption | Passive cable assembly, no power consumption |
| Product ID | NKLS01-15 |
| ABB Type Designation | NKLS01-15 |
| HS Code | 85444290 |
Industrial Network Interface and Backplane Communication Characteristics
The ABB NKLS01-15 operates as a dedicated INFI-Net interface cable within ABB industrial control architectures. Therefore, the cable provides a direct electrical path between NIS and NTCL interface points without active signal processing components.
The prefabricated cable design supports consistent connector alignment and reduces field wiring requirements. Additionally, the assembly maintains communication continuity through controlled cable routing and proper termination practices.
For ABB control systems, interface cable assemblies support structured communication infrastructure where signal integrity depends on correct connection methods, shielding practices, and installation conditions. The NKLS01-15 contains no firmware, configuration memory, or active communication electronics.
Frequently Asked Questions
Q: Does the ABB NKLS01-15 require external power during operation?
A: No. The NKLS01-15 is a passive prefabricated cable assembly and does not consume electrical power.
Q: What equipment connection does the NKLS01-15 provide?
A: The cable provides an INFI-Net interface connection between NIS and NTCL components.
Q: Can the NKLS01-15 be configured through software or firmware updates?
A: No. The cable has no programmable components and does not support firmware configuration.
Field Installation Guidelines
Install the ABB NKLS01-15 according to the applicable ABB INFI-Net system wiring documentation.
Verify connector compatibility before installation and avoid excessive mechanical stress on cable ends. Route the cable separately from high-voltage power conductors to reduce possible electromagnetic interference.
Maintain proper cable bend radius during installation and prevent sharp bends or compression points. Ensure all connection points remain clean and securely seated before system commissioning.
For industrial cabinet installations, maintain organized cable routing and provide suitable separation between communication cables and power circuits.
