Overview
It enables reliable high-speed Ethernet communication between PLC controllers and supervisory or enterprise-level networks.Moreover, the module supports deterministic data exchange, ensuring stable connectivity in mission-critical industrial environments.
Therefore, it serves as a key communication interface for distributed and networked automation architectures.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Automation |
| Product Series | Series 90-70 PLC |

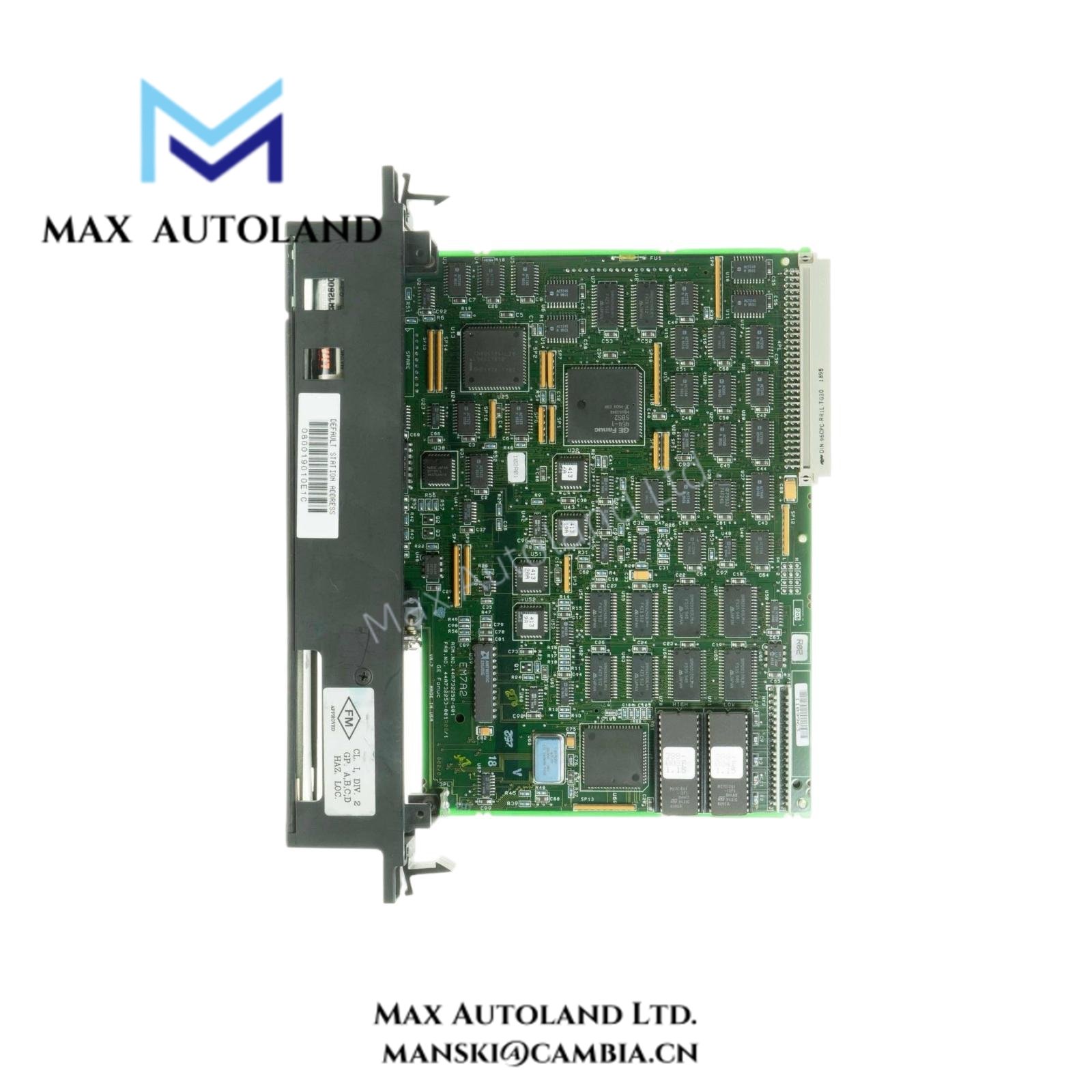

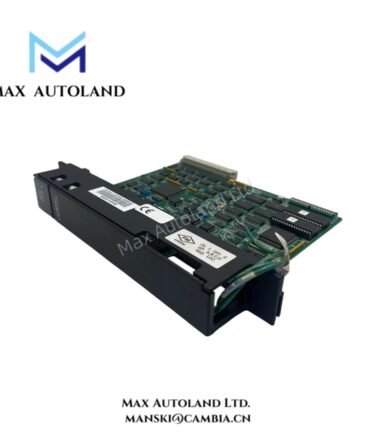

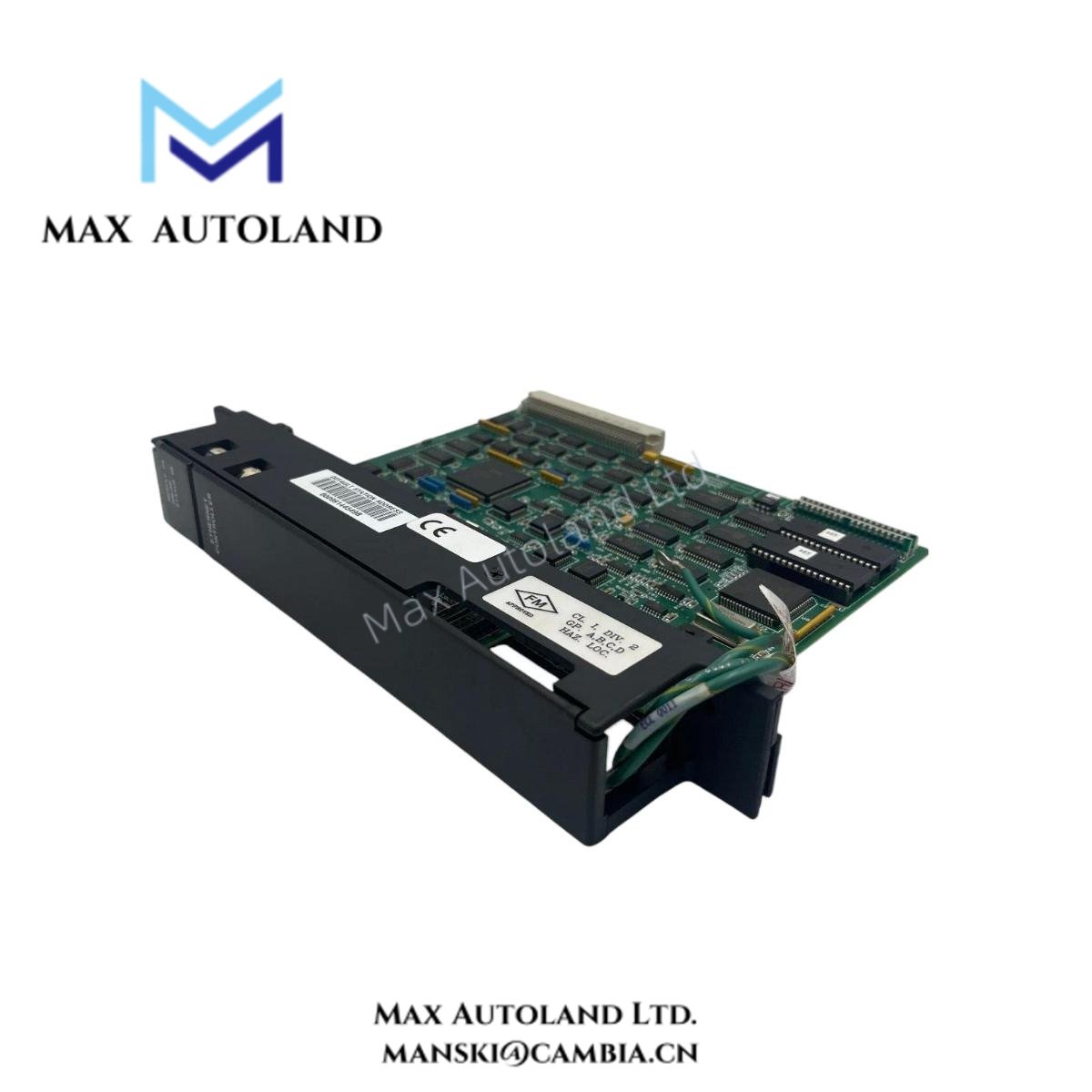

| Model Number | IC697CMM741 |
| Module Type | Ethernet Controller Module |
| Slot Requirement | Occupies one standard Series 90-70 PLC slot |
| Network Type | Industrial Ethernet |
| Ethernet Standard | IEEE 802.3 CSMA/CD |
| Communication Speed | 10 Mbps |
| Physical Network Interface | 15-pin AUI D-connector |
| Supported Media Types | 10Base5, 10Base2, 10BaseT, 10BaseF (via external transceiver) |
| Supported Protocols | TCP/IP, Ethernet Global Data (EGD), MMS |
| Serial Service Port | RS-232, 9-pin D-sub, 9600 bps |
| Onboard Processing | Dedicated communication processor |
| Memory Type | Battery-backed RAM and embedded firmware ROM |
| Data Retention | Configuration retained for at least 6 months without power |
| PLC Compatibility | GE Series 90-70 CPUs |
| Configuration Software | GE Logicmaster 90-70 / Proficy tools |
| Backplane Power Requirement | +5 VDC approx. 1.0 A; +12 VDC approx. 0.5 A |

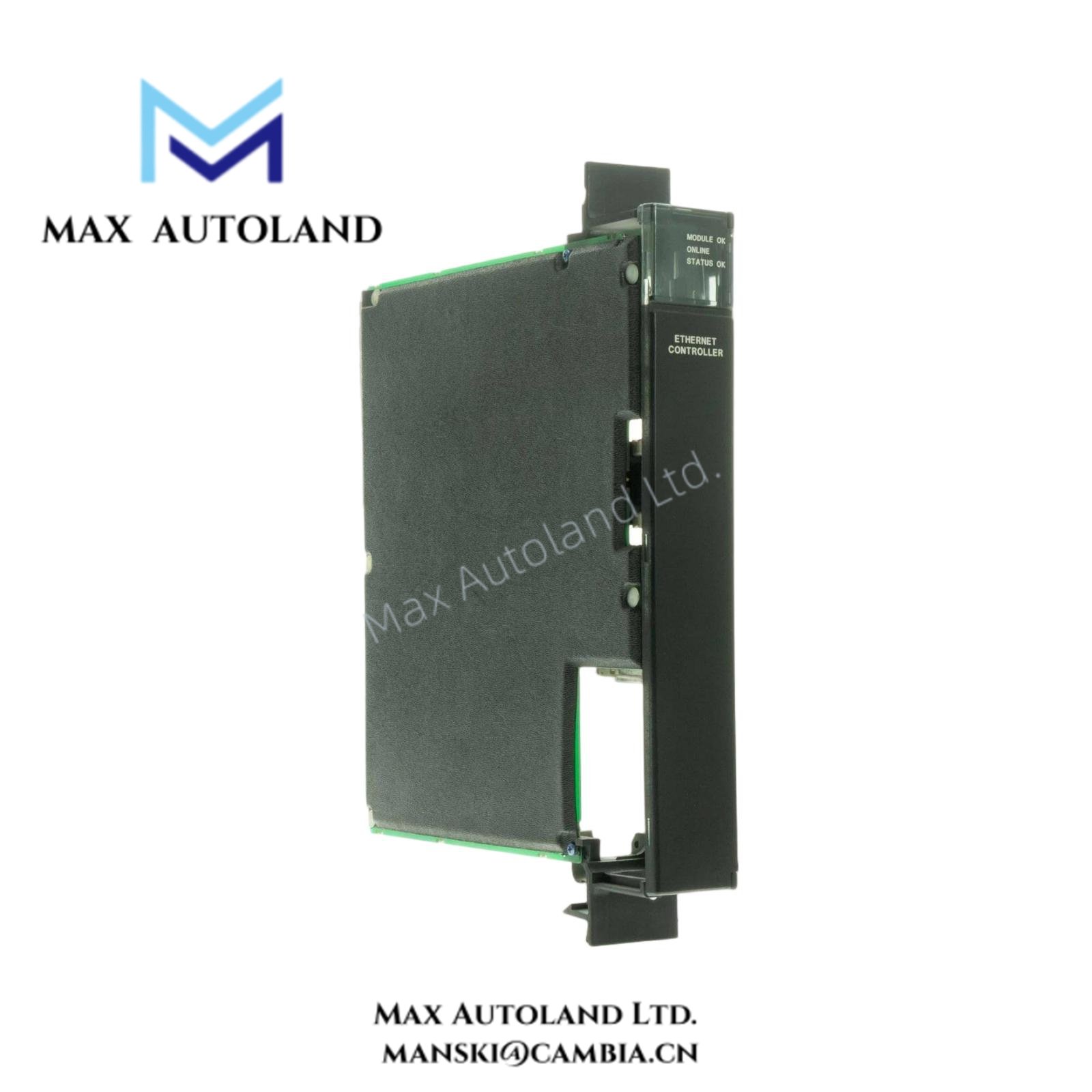

| Status Indicators | Module OK, Online, Status LEDs |
| Diagnostics | Network status monitoring and module fault indication |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| Storage Temperature | −40 °C to 85 °C |
| Relative Humidity | 5% to 95%, non-condensing |
| Mounting Method | Standard Series 90-70 PLC rack |
| Form Factor | Standard Series 90-70 module housing |
| Typical Applications | PLC networking, SCADA connectivity, plant data exchange |
FAQ
Q1: What is the primary function of the IC697CMM741 module?
A1: It provides Ethernet communication between Series 90-70 PLCs and industrial network systems.
Q2: Which PLC series supports this Ethernet controller?
A2: The module is fully compatible with GE Series 90-70 PLC platforms.
Q3: Does the module support standard Ethernet protocols?
A3: Moreover, it supports TCP/IP and Ethernet Global Data communication.
Q4: Is this module suitable for SCADA integration?
A4: Yes, it connects PLC systems directly to SCADA and supervisory software.
Q5: Can IC697CMM741 be used in retrofit projects?
A5: Therefore, it is commonly selected for network upgrades in existing Series 90-70 systems.
