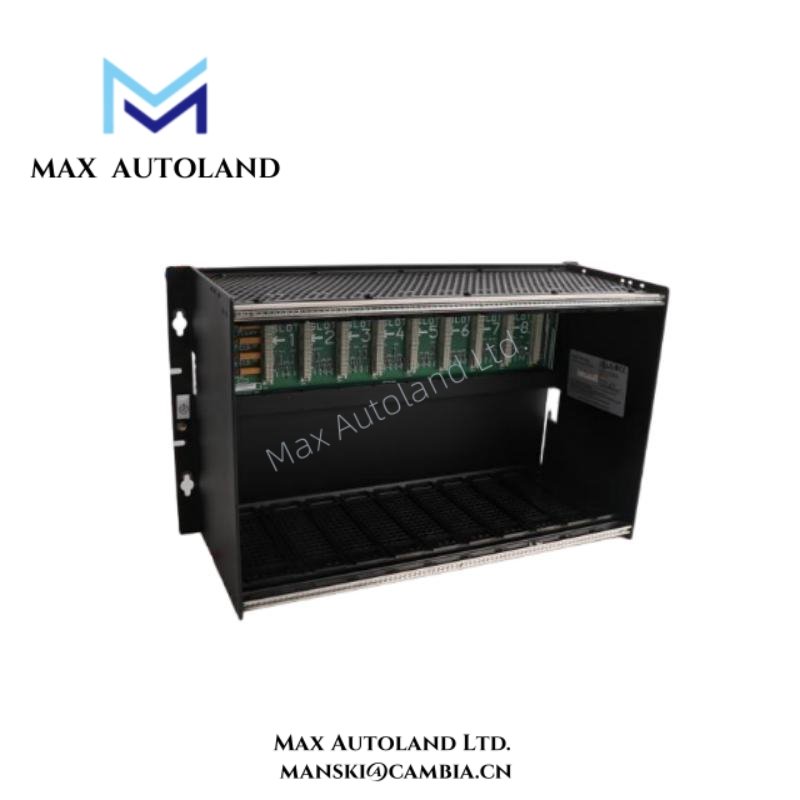

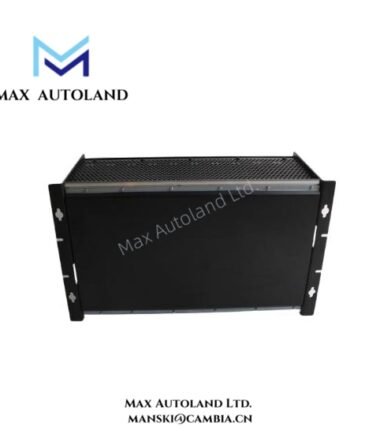

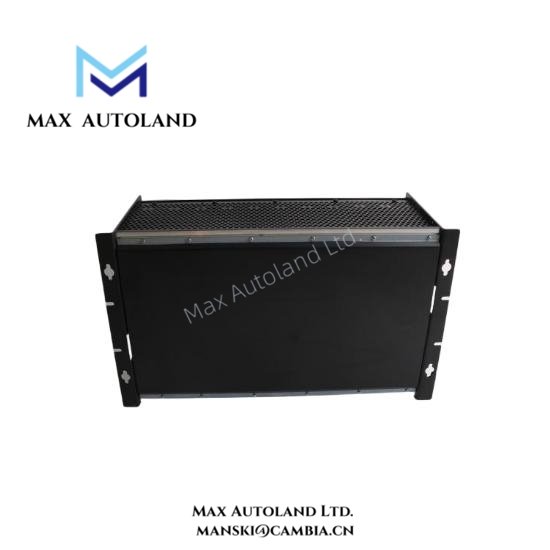

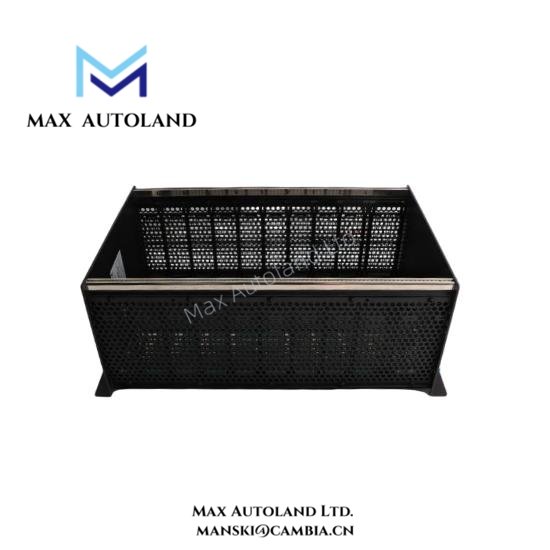

Overview
In addition, this rack integrates seamlessly with Series 90-70 modules, allowing scalable expansion while maintaining system stability. Furthermore, its high-quality metal construction guarantees long-term durability in demanding industrial environments. Technicians also benefit from its intuitive layout and clearly labeled slots, which accelerate installation and reduce commissioning time.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | GE (General Electric) |
| Model Number | IC697CHS790 |
| Series | Series 90-70 PACSystems |
| Module Type | Rack / Backplane |
| Number of Slots | 9 |
| Mounting Type | Rear-mount, vertical installation |
| Backplane Compatibility | Supports Series 90-70 CPU, I/O, and communication modules |
| Slot Pitch | Standard 1.5-inch per module (typical) |
| Electrical Interface | Integrated backplane connectors per slot |
| Power Distribution | Provides power and signal distribution for all installed modules |
| Rack Material | Industrial-grade metal, corrosion-resistant finish |
| Front/Rear Access | Rear-mounted for cable routing and maintenance |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Shock Resistance | IEC 60068-2-27 compliant |
| EMC Compliance | CE, UL (system dependent) |
| Weight | Approx. 4.5 kg (9.9 lbs) |
| Dimensions (H × W × D) | 12.7 × 4.8 × 27.9 cm (5 × 1.9 × 11 inches) |
| Mounting Hardware | Standard industrial rack screws included |
| Typical Applications | Factory automation, process control, machine control panels, modular expansion of Series 90-70 systems |
| Maintenance | Easy slot replacement and cable management for serviceability |
| System Integration | Compatible with Series 90-70 PACSystems and peripheral modules for scalable solutions |
FAQ
A1: This rack offers 9 slots for CPUs, I/O, and communication modules.
Q2: Is this rack compatible with Series 90-70 modules?
A2: Yes. It supports all Series 90-70 I/O, CPU, and communication modules.
Q3: What mounting style does this rack use?
A3: It uses a rear-mount design for improved cable management and accessibility.
Q4: What operating temperature range does the rack support?
A4: It operates safely between 0°C and 55°C in industrial environments.
Q5: What materials are used in the rack construction?
A5: The rack is made of rugged industrial-grade metal to ensure durability.
Q6: Can this rack be used for system expansions?
A6: Yes. It supports modular expansion and simplifies installation of additional modules.
