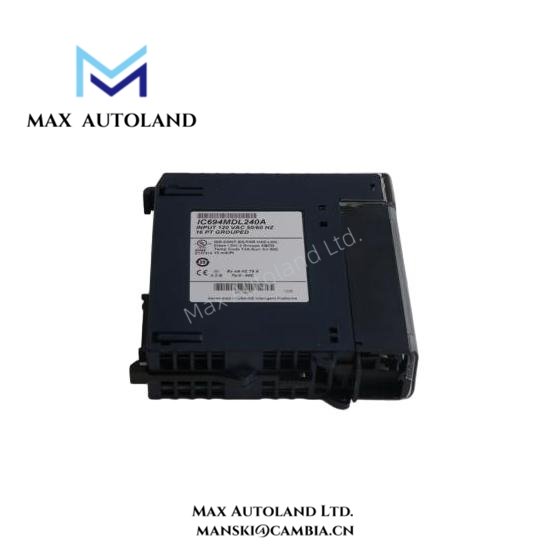

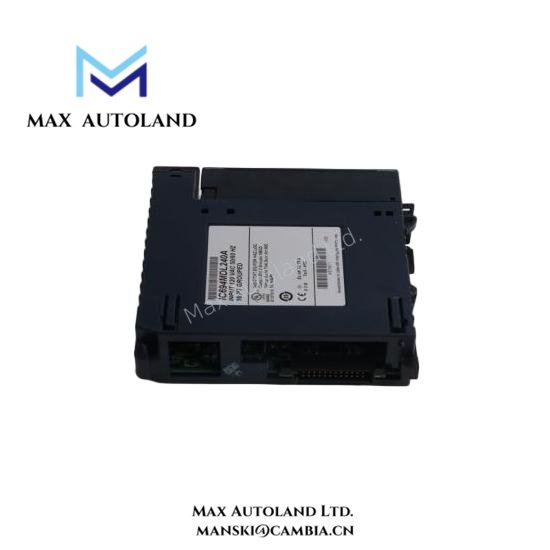

Overview
The IC694MDL240 supports 120 VAC input signals for industrial control applications. Therefore, it integrates easily with standard AC-powered field devices and control panels. In addition, optical isolation protects the backplane and CPU from field-side electrical disturbances. Its clear LED indicators provide immediate visual status for each input channel.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | GE (General Electric) |
| Product Series | PACSystems RX3i / Series 90-30 Compatible |
| Model Number | IC694MDL240 |
| Module Type | AC Digital Input Module |
| Number of Input Points | 16 discrete inputs |
| Input Voltage (Nominal) | 120 VAC |
| Input Voltage Range | 85–132 VAC |
| Input Frequency Range | 47–63 Hz |
| Input Current (Typical) | Approx. 12 mA per point at 120 VAC |
| Input Configuration | Two isolated groups of 8 points each (grouped commons) |
| Common Type | Shared common per group |
| On-State Voltage Range | 85–132 VAC |
| Off-State Voltage Range | 0–20 VAC |
| On-State Current (Minimum) | Approx. 8 mA |
| Off-State Leakage Current | Minimal, below on-threshold level |
| Input Impedance | Designed for standard industrial AC signals |
| Isolation (Field to Backplane) | Optical isolation |
| Isolation Voltage Rating | 1500 VAC (typical isolation rating) |
| Response Time (On/Off) | Approx. 20 ms (AC cycle dependent) |
| Power Consumption | Supplied from rack backplane; no external field power required |
| LED Indicators | Individual LED per input point |
| Backplane Compatibility | RX3i Universal Backplane / 90-30 racks |
| Mounting | Rack-mounted I/O slot installation |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Shock Resistance | IEC 60068-2-27 compliant |
| EMC Compliance | CE compliant (installation dependent) |
| Safety Certification | UL recognized (revision dependent) |
| Typical Applications | AC signal monitoring, limit switches, relays, push buttons, machine control panels |
FAQ
A1: The IC694MDL240 is a 16-point 120VAC digital input module designed to monitor AC field signals such as push buttons, limit switches, selector switches, and relay contacts in PACSystems RX3i and Series 90-30 PLC systems.
Q2: How many input groups does the IC694MDL240 have?
A2: The module provides 16 inputs divided into two isolated groups of 8 points each, with a shared common per group. This grouping helps simplify wiring and improve electrical isolation.
Q3: What voltage range does this module support?
A3: It is designed for 120VAC nominal input, with an operational voltage range of approximately 85–132VAC at 47–63 Hz.
Q4: Does the module provide diagnostic indicators?
A4: Yes. Each input point has an individual LED indicator on the front of the module, allowing technicians to quickly verify signal status during operation and troubleshooting.
Q5: Is the IC694MDL240 compatible with both RX3i and Series 90-30 racks?
A5: Yes. The module is compatible with PACSystems RX3i universal backplanes and Series 90-30 racks, making it suitable for both legacy system upgrades and newer installations.
Q6: What types of applications commonly use this module?
A6: It is widely used in industrial automation applications such as manufacturing lines, packaging systems, material handling equipment, and process control systems where 120VAC discrete signal monitoring is required.
