Overview
Engineers select this universal power supply for reliable performance in critical industrial automation systems.

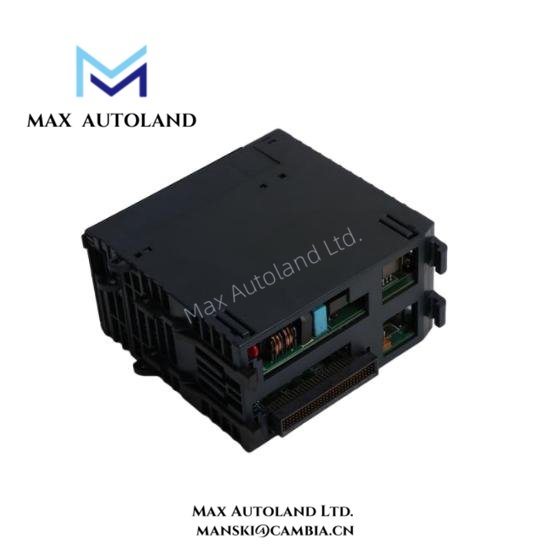

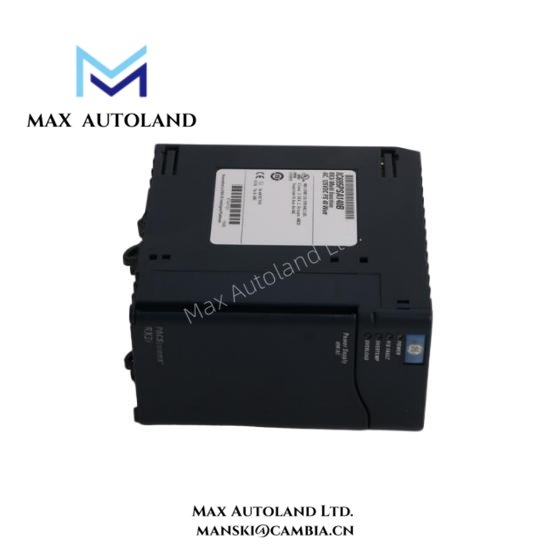

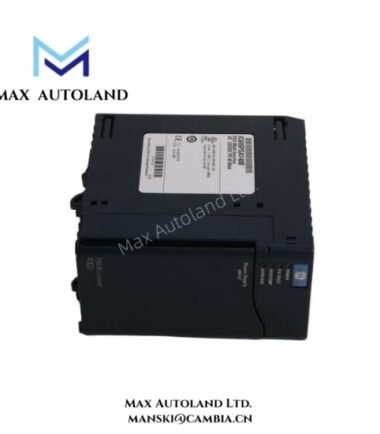

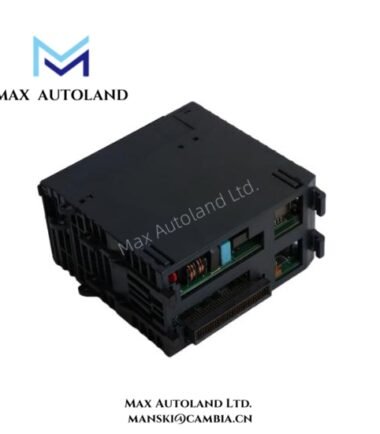

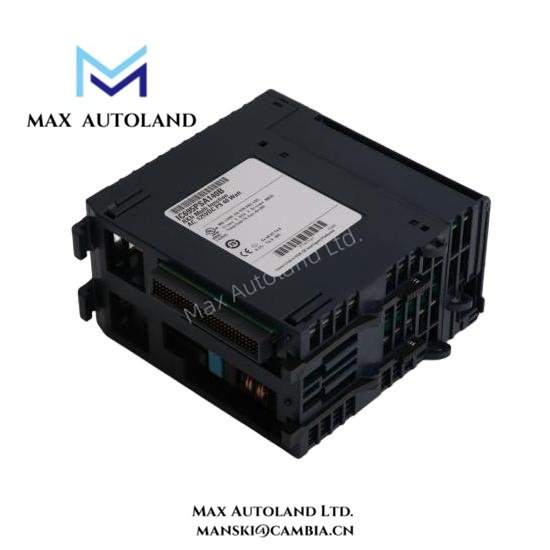

The IC695PSA140 installs directly into the RX3i backplane power slot.
Therefore, it distributes controlled DC voltages across the entire rack efficiently.
This module supports universal AC input ranges, which simplifies global deployment.
Moreover, it maintains consistent output under fluctuating plant voltage conditions.
Specification
| Parameter | Detailed Specification |
|---|---|
| Manufacturer | GE Intelligent Platforms / Emerson Automation |
| Model Number | IC695PSA140 |
| Product Type | Universal Power Supply for PACSystems RX3i |
| Series Compatibility | PACSystems RX3i PLC Architecture |
| Installation Slot | Slot 0 on RX3i Backplane (e.g., IC695CHS007) |
| Input Voltage Range | 85–264 VAC |
| Nominal Input Voltage | 120 VAC / 240 VAC selectable |
| Input Frequency | 47–63 Hz |
| Max Input Current | ~2.0 A at 120 VAC (typical) |
| Inrush Current | <30 A (cold start) |
| Power Consumption | ~150 VA maximum under full load |
| Output Voltage Rails | +3.3 VDC, +5 VDC, +24 VDC |
| Total Output Power | ~40 Watts maximum (combined rails) |
| 3.3 VDC Output | Up to ~30 W capacity |
| 5 VDC Output | Up to ~30 W capacity |
| +24 VDC Output | Auxiliary supply for relay and logic loads |
| Output Regulation | ±5% typical across load range |
| Ripple & Noise | <50 mV peak-to-peak on 5 V and 3.3 V outputs |
| Efficiency | High-efficiency switching design |
| Protection Features | Overcurrent protection |
| Protection Features | Short-circuit shutdown |
| Protection Features | Overtemperature shutdown |
| Cooling Method | Natural convection (no fan) |
| Operating Temperature | 0°C to +60°C (industrial range) |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Altitude | Up to 2000 m without derating |
| Mounting | Horizontal insertion into backplane slot |
| Connector Type | RX3i slot-edge interface |
| Indicators | Front-panel status LEDs for input/output health |
| Dimensions (approx.) | ~140 mm × ~110 mm × ~120 mm |
| Weight (approx.) | ~1.2 kg |
| Safety Standards | Meets industrial control system requirements |
| Environmental Compliance | Designed for industrial automation use |
FAQ
Q1: Is the IC695PSA140 brand new and original?
Yes, we supply brand-new original factory units with verified authenticity and traceable sourcing.
Q2: Do you keep IC695PSA140 in stock?
We maintain regular inventory, and most standard orders ship directly from stock.
Q3: How long does shipping take?
We ship within 3 days to 2 weeks depending on order size and destination.
Q4: Which logistics carriers do you use?
We commonly use DHL and other major international express logistics providers.
Q5: What input voltage does IC695PSA140 support?
The IC695PSA140 supports a universal 85–264 VAC input at 47–63 Hz frequency.
Q6: How much output power can IC695PSA140 provide?
It delivers approximately 40 watts total output across 3.3 VDC, 5 VDC, and 24 VDC rails.
