Overview
Engineers rely on this module when applications demand stable voltage or current signal transmission.

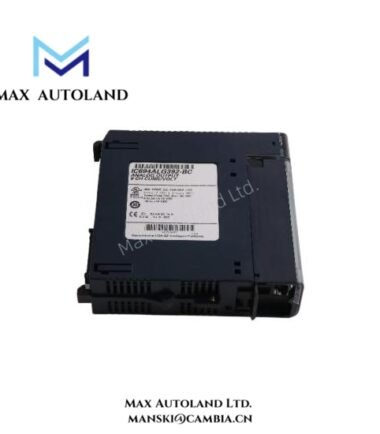

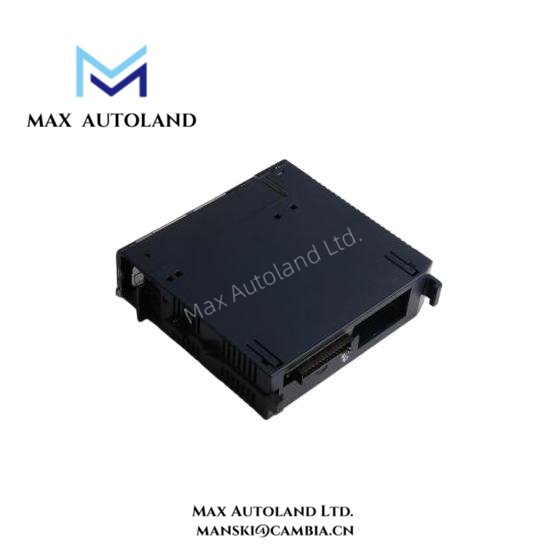

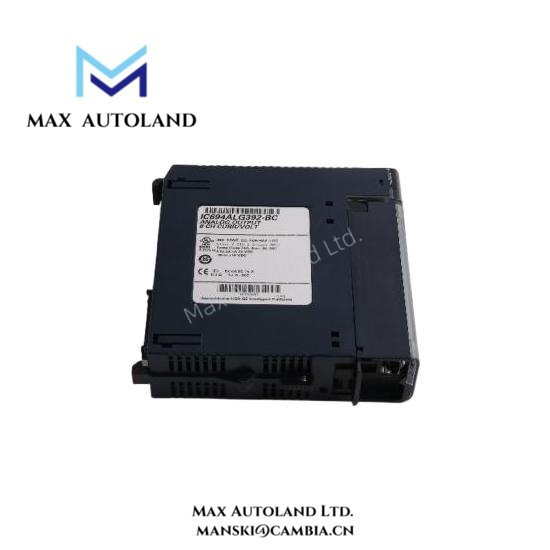

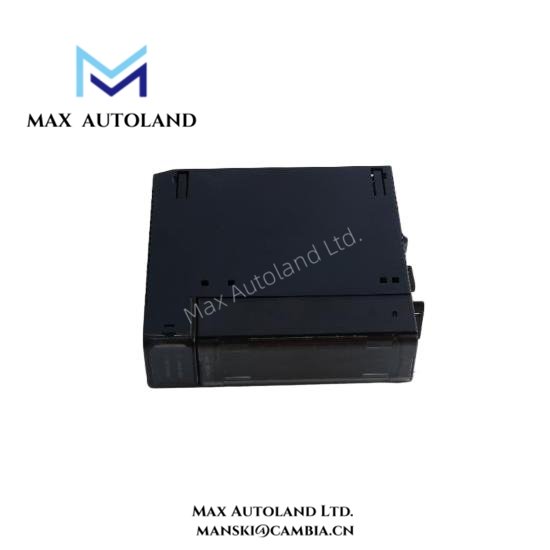

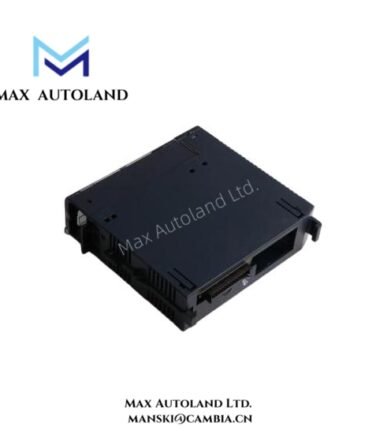

The IC694ALG392 converts digital control data into accurate analog output signals.
Therefore, it enables smooth control of drives, valves, and process instrumentation.
This module integrates seamlessly into compatible GE backplanes without additional adapters.
Moreover, it supports high-resolution output for demanding industrial process environments.
Specification
| Parameter | Detailed Specification |
|---|---|
| Manufacturer | GE Intelligent Platforms |
| Model Number | IC694ALG392 |
| Product Type | Analog Output Module |
| Platform Compatibility | RX3i and Series 90-30 PLC Systems |
| Number of Output Channels | 8 independent analog output channels |
| Output Configuration | Software selectable per channel |
| Supported Output Modes | Voltage mode or Current mode |
| Voltage Output Ranges | 0 to +10 VDC; –10 to +10 VDC |
| Current Output Range | 4 to 20 mA |
| Digital Resolution | 12-bit D/A conversion |
| Output Update Time | Approximately 4 ms typical |
| Voltage Output Current Capacity | Up to 5 mA per channel |
| Current Output Maximum Load | 500 Ω typical at 24 VDC field supply |
| Output Accuracy | ±0.1% of full scale typical at 25°C |
| Linearity | ±1 Least Significant Bit (LSB) |
| Repeatability | ±0.05% full scale typical |
| Channel Isolation | Channel-to-backplane isolation provided |
| Crosstalk | Minimal, designed for industrial noise environments |
| External Field Power | 24 VDC required for current outputs |
| Backplane Power Consumption | 5 VDC supplied from rack power supply |
| Diagnostic Indicators | Front-panel LEDs for module status |
| Configuration Method | Programmable via GE configuration software |
| Calibration | Factory calibrated, no user adjustment required |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | –40°C to +85°C |
| Relative Humidity | 5%–95%, non-condensing |
| Mounting Method | Installs into compatible GE rack backplane |
| Form Factor | Standard Series 90-30 single-width module |
| Approximate Dimensions | 127 mm × 38 mm × 140 mm |
| Approximate Weight | 0.5–0.7 kg |
| Compliance | Designed for industrial control system standards |
FAQ
Q1: Is the IC694ALG392 brand new and original?
Yes, we supply brand-new original factory modules with verified authenticity.
Q2: Do you keep IC694ALG392 in stock?
We maintain available inventory, and most orders ship directly from stock.
Q3: How quickly can you ship?
We ship within 3 days to 2 weeks depending on order volume.
Q4: Which carriers do you use for logistics?
We commonly use DHL and other major international courier services.
Q5: What output types does IC694ALG392 support?
It supports selectable voltage outputs up to ±10 VDC and current outputs from 4–20 mA.
