Overview

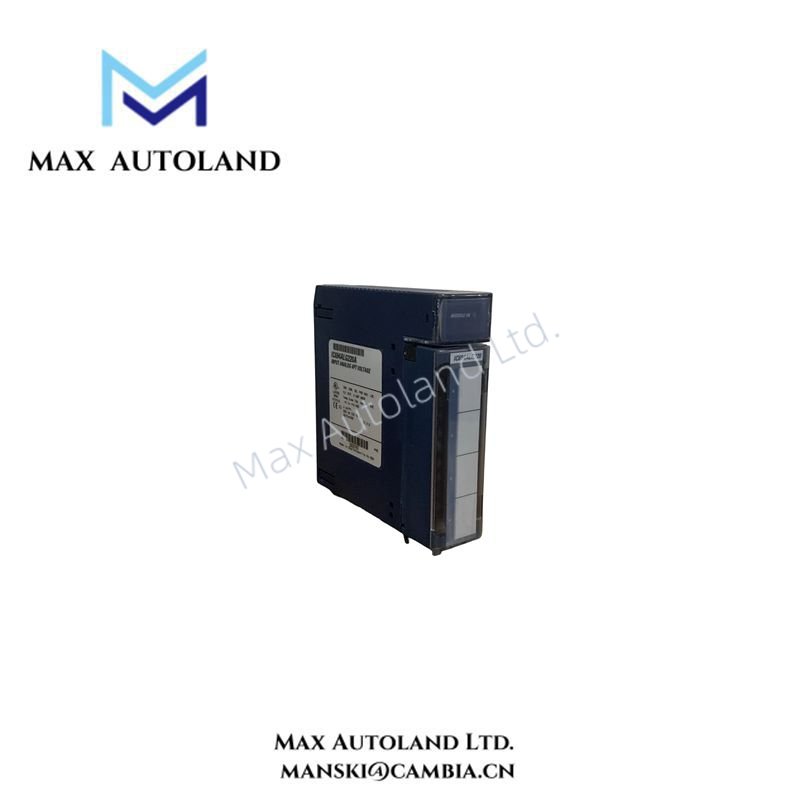

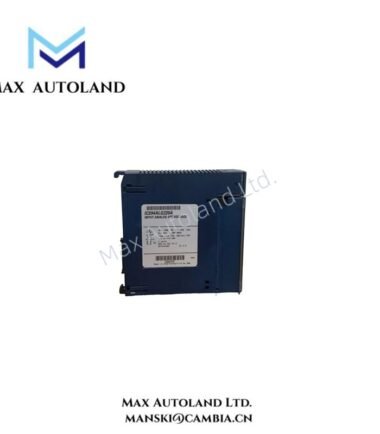

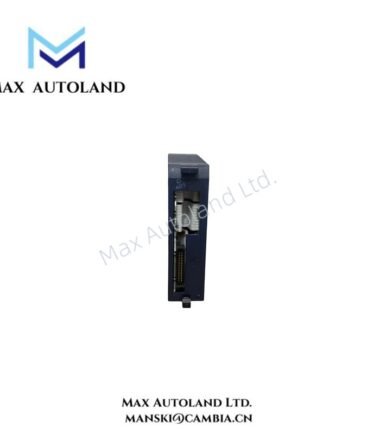

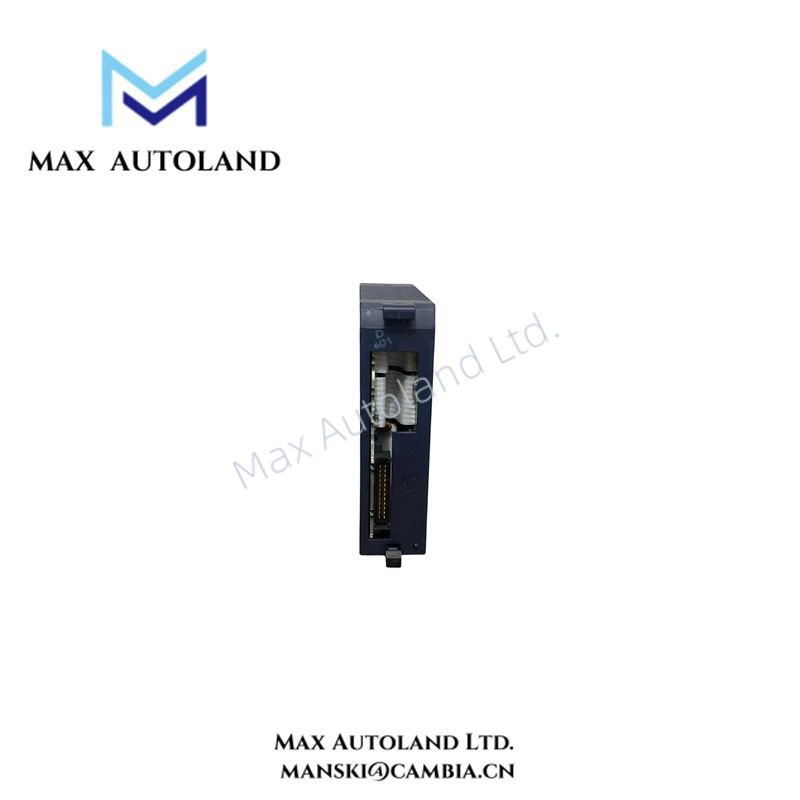

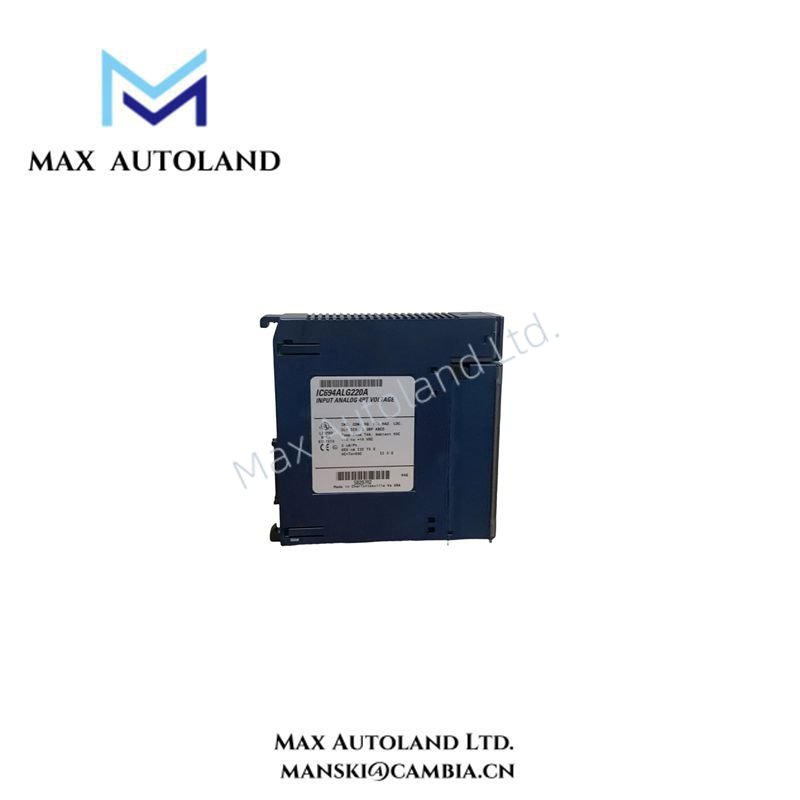

Thanks to its compact form and efficient thermal design, the IC694ALG220A optimizes cabinet space and ensures stable performance even under demanding environmental conditions.
Specification
| Parameter | Description |
|---|---|
| Brand | GE Fanuc |
| Model | IC694ALG220A |
| Series | Rx3i PACSystem |
| Product Type | 4-Channel Analog Voltage Input Module |
| Input Channels | 4 single-ended or differential |
| Input Range | ±10 VDC |
| Resolution | 15 bits |
| Input Impedance | 1 MΩ minimum |
| Conversion Time | 1 ms per channel |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and channel-to-ground |
| Power Consumption | 80 mA at +5 VDC |
| Connector Type | Removable terminal block |
| Dimensions (H × W × D) | 130 mm × 35 mm × 120 mm |
| Weight | 0.25 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting | DIN rail or Rx3i rack slot |
| Certifications | CE, UL, RoHS Compliant |
FAQ
Yes, the IC694ALG220A is 100% brand new, factory-sealed, and original GE Fanuc.
Q2: How fast can you ship the product?
We ship within 3 days to 2 weeks, depending on the order size and quantity.
Q3: Which logistics carriers are available?
We typically use DHL, FedEx, or UPS for safe and timely global delivery.
Q4: Do you accept returns if the module has quality issues?
Yes, we provide a 30-day return policy for any verified quality problems.
Q5: Is the IC694ALG220A compatible with all Rx3i racks?
Yes, this module fits all GE Fanuc Rx3i PACSystem racks and bases.
Q6: What input range does the IC694ALG220A support?
It supports an input range of ±10 VDC with 15-bit resolution, ideal for precision analog signals.
