Overview

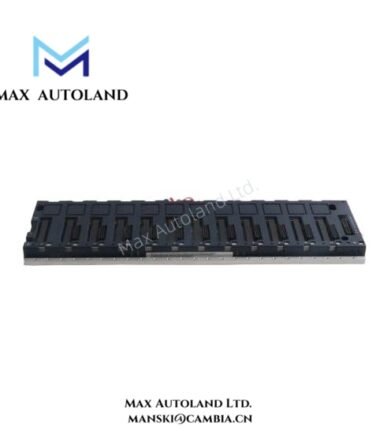

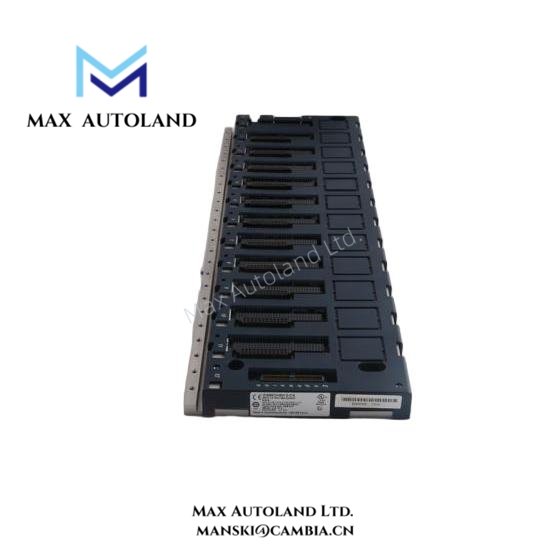

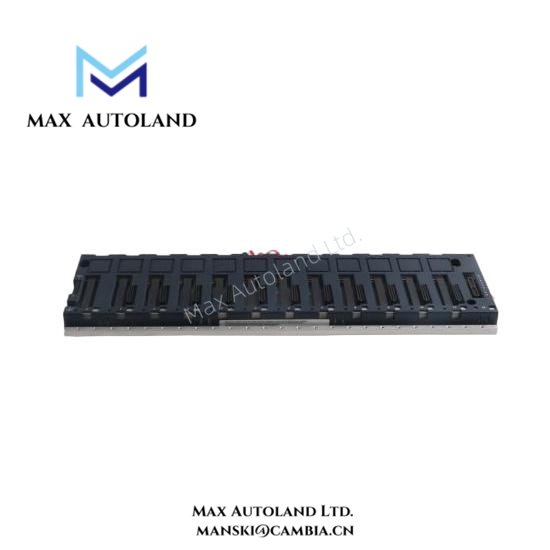

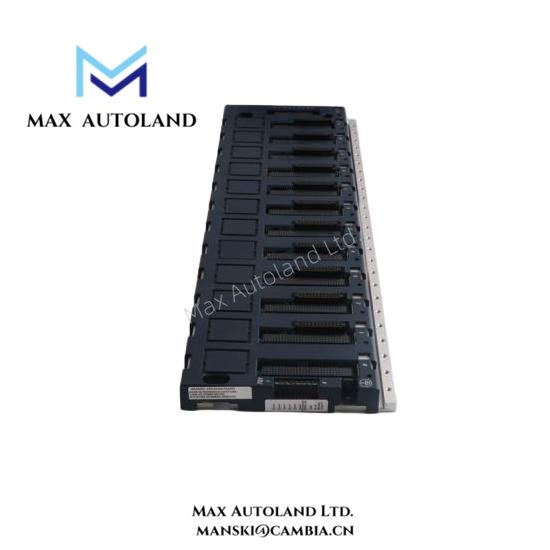

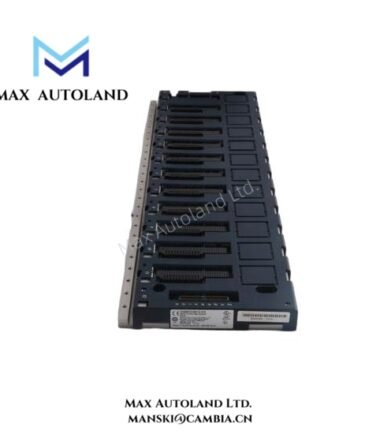

The IC695CHS012 from GE Rx3i PACSystem provides a robust 12-slot universal backplane for modular PLC system architectures. Moreover, it supports flexible placement of CPUs, I/O modules, and communication cards within a single rack. Therefore, system designers use this backplane to build scalable and maintainable industrial automation platforms. In addition, its universal slot design simplifies hardware planning across mixed Rx3i configurations.
Specification
| Parameter | Specification | Details |
|---|---|---|
| Model | IC695CHS012 | GE Rx3i PACSystem |
| Module Type | Universal Backplane | PLC rack chassis |
| Number of Slots | 12 slots | Universal slot configuration |
| Slot Compatibility | CPU, I/O, communication modules | Rx3i series |
| Backplane Bus | High-speed parallel bus | Deterministic communication |
| Mounting Type | Panel-mounted | Control cabinet installation |
| Power Distribution | Via power supply module | Shared backplane power |
| Mechanical Construction | Industrial-grade metal frame | Rigid structure |
| Backplane Addressing | Automatic | No manual configuration |
| Expansion Capability | Supports system growth | Modular scalability |
| Operating Temperature | 0°C to 60°C | Industrial rated |
| Storage Temperature | -40°C to 85°C | Long-term storage |
| Relative Humidity | 5–95% non-condensing | Harsh environments |
| Vibration Resistance | Industrial compliant | Continuous operation |
| Dimensions (Approx.) | Standard 12-slot width | Rack-mounted footprint |
| Approximate Weight | 2.0 kg | Including chassis |
FAQ
Q1: Is the IC695CHS012 compatible with all GE Rx3i modules?
A1: Yes, the IC695CHS012 supports CPUs, I/O, and communication modules across the GE Rx3i PACSystem family.
Q2: How many modules can this backplane hold?
A2: The backplane provides 12 universal slots for flexible PLC system configuration.
Q3: Does this backplane support future system expansion?
A3: Yes, its universal slot design allows easy expansion as control requirements grow.
Q4: Is this product new and factory original?
A4: Yes, all IC695CHS012 units are brand-new, original, and factory-sealed.
Q5: What is the typical shipping time after ordering?
A5: We maintain stock and ship within 3 days to 2 weeks, depending on order volume.
Q6: Do you support returns if quality issues arise?
A6: Yes, we offer a 30-day return policy for verified quality-related issues.
Reviews
There are no reviews yet.
