Overview

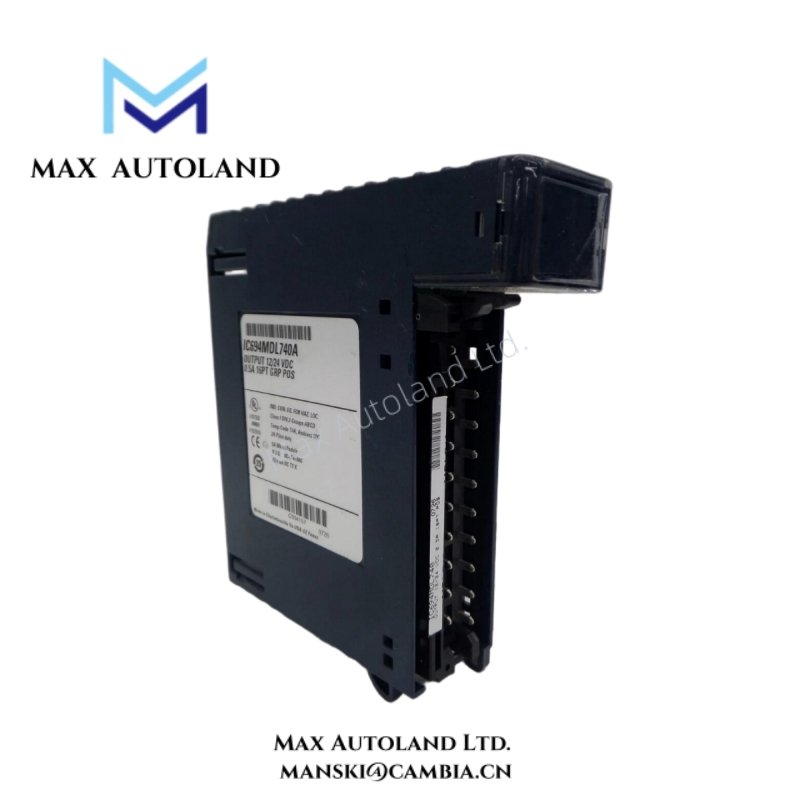

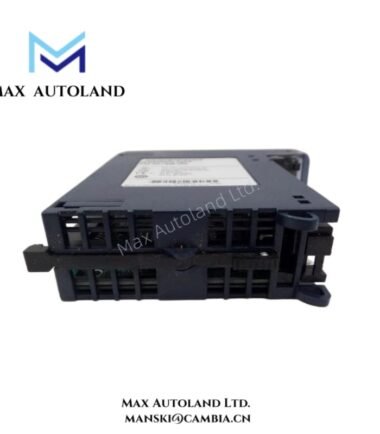

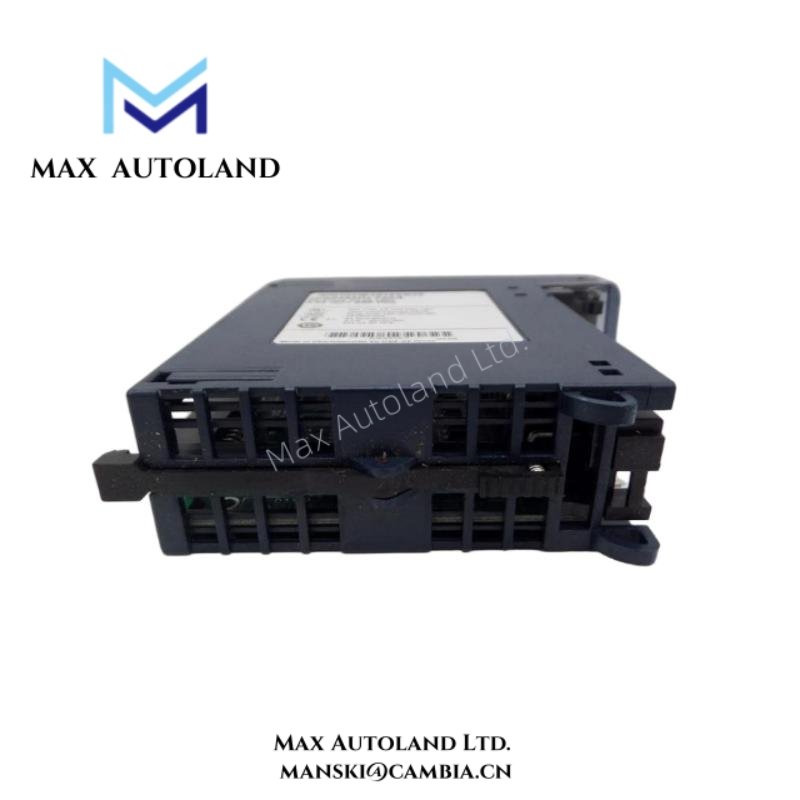

The IC694MDL740 digital output module from GE Rx3i PACSystem provides stable and responsive switching for industrial automation control systems. Moreover, this module supports reliable control of actuators, relays, and solenoids across demanding factory environments. Therefore, engineers frequently select it to expand discrete output capacity without redesigning existing PLC architectures. In addition, its compact design allows seamless installation within GE Rx3i and Series 90-30 racks.
Specification
| Parameter | Specification | Details |
|---|---|---|
| Model | IC694MDL740 | GE Rx3i / Series 90-30 |
| Module Type | Digital Output Module | Discrete DC outputs |
| Number of Outputs | 16 points | Single group configuration |
| Output Voltage Range | 12–24 VDC | Nominal 24 VDC |
| Output Type | Sourcing outputs | Positive logic |
| Output Current per Point | 0.5 A maximum | Field-dependent load |
| Total Module Current | 4 A maximum | All points combined |
| Isolation | Output-to-backplane isolation | Electrical protection |
| Output Response Time | Fast switching | Suitable for automation |
| Status Indication | Individual LED indicators | Per-point diagnostics |
| Backplane Compatibility | Rx3i / 90-30 baseplates | Slot-mounted |
| Power Requirement | Backplane powered | No external supply |
| Operating Temperature | 0°C to 60°C | Industrial rated |
| Storage Temperature | -40°C to 85°C | Long-term storage |
| Relative Humidity | 5–95% non-condensing | Harsh environments |
| Form Factor | Single-slot module | Compact footprint |
| Approximate Weight | 0.3 kg | Lightweight design |
FAQ
Q1: Is the IC694MDL740 compatible with GE Rx3i systems?
A1: Yes, the IC694MDL740 works fully with GE Rx3i and Series 90-30 PLC baseplates.
Q2: What voltage range does this digital output module support?
A2: The module supports 12–24 VDC outputs, commonly used in industrial control circuits.
Q3: Does each output channel include status indication?
A3: Yes, each output point includes an LED indicator for quick visual diagnostics.
Q4: Is this product brand new and original?
A4: Yes, all units are new, original, factory-sealed GE products.
Q5: How fast can you ship this module after ordering?
A5: We keep stock available and ship within 3 days to 2 weeks, depending on order quantity.
Q6: What is your return policy for quality issues?
A6: We support returns within 30 days if any quality-related problems occur.
