Overview
It executes user programs, manages I/O modules, and ensures reliable automation control.
Moreover, its high-speed processing capabilities optimize system performance for demanding industrial applications.
Engineered for industrial environments, the CPU provides deterministic execution and predictable cycle times.
Therefore, control engineers can rely on this module for critical process automation tasks.
Its compact design fits standard Series 90-30 racks, simplifying system integration and expansion.
Specification
| Category | Parameter | Specification |
|---|---|---|
| General Information | Model Number | IC693CPU352 |
| Product Type | Central Processing Unit (CPU) Module | |
| Platform | GE Series 90-30 PLC Systems | |
| Rack Slot Requirement | Single-slot CPU module | |
| Program Memory | Up to 256 KB user program memory | |
| Processing & Performance | Scan Rate | High-speed execution, typical < 1 ms per 1k instructions |
| Logic Execution | Deterministic, cycle-based processing | |
| Memory Type | Non-volatile for program retention | |
| I/O Processing | Manages multiple I/O modules over backplane | |

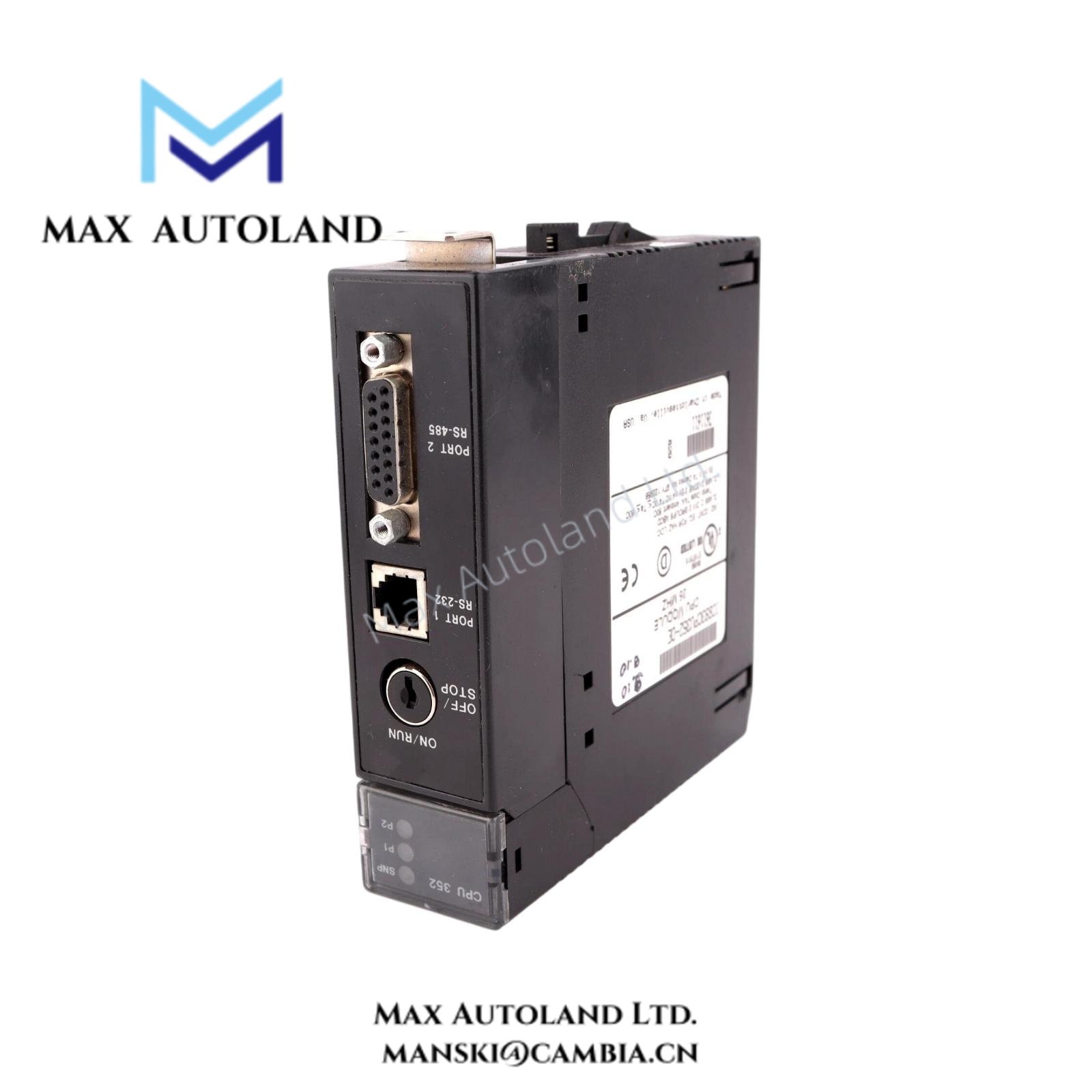

| Communication | Ports | RS-232, RS-485, or system-specific communication ports |
| Remote I/O Support | Compatible with distributed I/O modules | |
| Protocols | GE Series 90-30 proprietary communication protocols | |
| Electrical Characteristics | Power Supply | Powered via Series 90-30 backplane |
| Current Consumption | Dependent on system configuration | |
| Isolation | Module isolated from field wiring via I/O modules | |
| Indicators & Diagnostics | Status LEDs | Module status, RUN, FAULT indicators |
| Fault Detection | Onboard diagnostics for power, memory, and communication faults | |
| Environmental Specifications | Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C | |
| Humidity | 5–95% non-condensing | |
| Vibration & Shock | Rated for industrial control panels | |
| Mechanical Characteristics | Mounting | Standard Series 90-30 rack |
| Module Width | Single-slot module | |
| Construction | Industrial-grade electronics enclosure | |
| Compliance & Standards | Certifications | CE and UL system-compliant design |
| Application Environment | Industrial automation, process control, manufacturing systems |
FAQ
A1: It serves as the central processing unit, executing user programs and managing I/O modules.
Q2: How much program memory does this CPU provide?
A2: It offers up to 256 KB of user program memory for control applications.
Q3: Which systems are compatible with this CPU module?
A3: It supports GE Series 90-30 PLC racks and compatible I/O modules.
Q4: Does the module support remote I/O communication?
A4: Yes, it connects to distributed I/O modules via system-specific communication ports.
Q5: Can this CPU operate in industrial environments?
A5: Yes, it functions reliably between 0°C and 60°C in control panel installations.
