Overview
It enables digital and analog sensor integration with minimal configuration effort for industrial automation systems.
Moreover, the module supports high-speed communication for real-time data acquisition and control.
Engineers benefit from its robust backplane interface and plug-and-play functionality, reducing setup complexity.

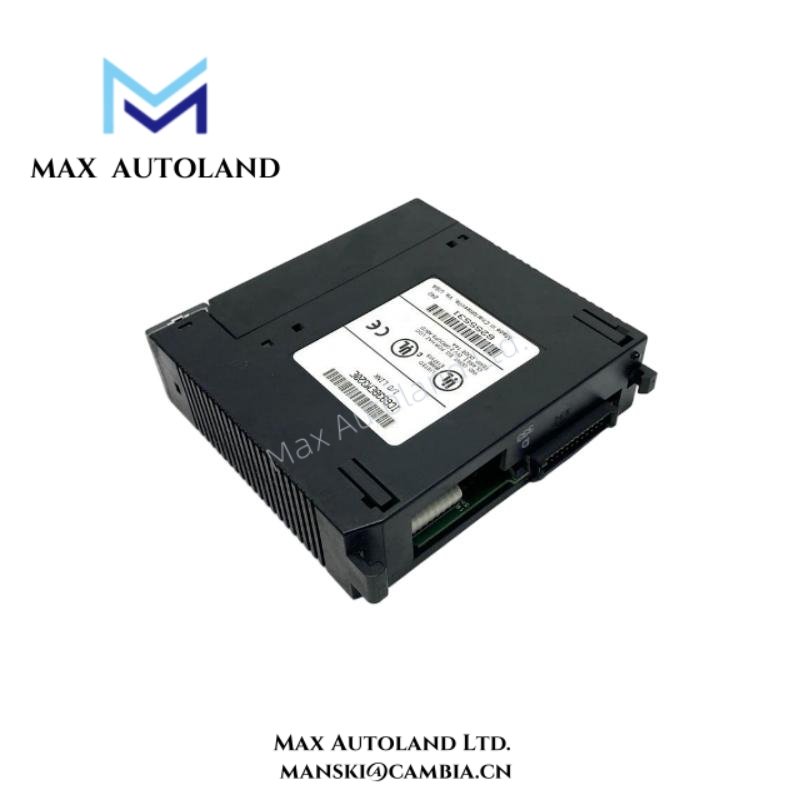

Therefore, manufacturing systems can maintain accurate monitoring and control with improved uptime.The IC693BEM320 is compatible with a wide range of I/O LINK sensors and actuators.
In addition, it simplifies diagnostics and maintenance by reporting device status directly to the PLC.
Specification
| Parameter | Specification |
|---|---|
| Model Number | IC693BEM320 |
| Manufacturer | GE |
| Device Type | I/O LINK Interface Module (Slave) |
| Compatible Series | Series 90-30 PLC |
| Communication Protocol | I/O LINK v1.1 compatible |
| Number of I/O LINK Ports | 4 slave channels |
| Supported Devices | Standard and enhanced I/O LINK sensors and actuators |
| Data Transfer | Cyclic process data and acyclic parameter data |
| Input Voltage | 5 V DC from backplane |
| Power Consumption | Typical 2.5 W |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Storage Temperature | –20°C to +70°C (–4°F to 158°F) |
| Mounting | DIN-rail or backplane mounting |
| Diagnostics | Status LEDs for each channel, error reporting to CPU |
| Backplane Interface | Series 90-30 PLC compatible |
| Response Time | <1 ms typical per channel |
| Certifications | UL, CE, IEC 61131-3 |
| Applications | Sensor/actuator integration, automated production lines, industrial monitoring |
FAQ
A1: It is compatible with GE Series 90-30 PLCs.Q2: How many I/O LINK ports does this module provide?
A2: The module provides four I/O LINK slave channels.
Q3: Can it support both standard and enhanced I/O LINK devices?
A3: Yes, it supports both standard and enhanced I/O LINK sensors and actuators.
Q4: Does it offer diagnostics for connected devices?
A4: Yes, status LEDs and error reporting are provided for each channel.
Q5: Is it suitable for high-speed industrial applications?
A5: Yes, it supports cyclic and acyclic data transfer for real-time control.
