Overview

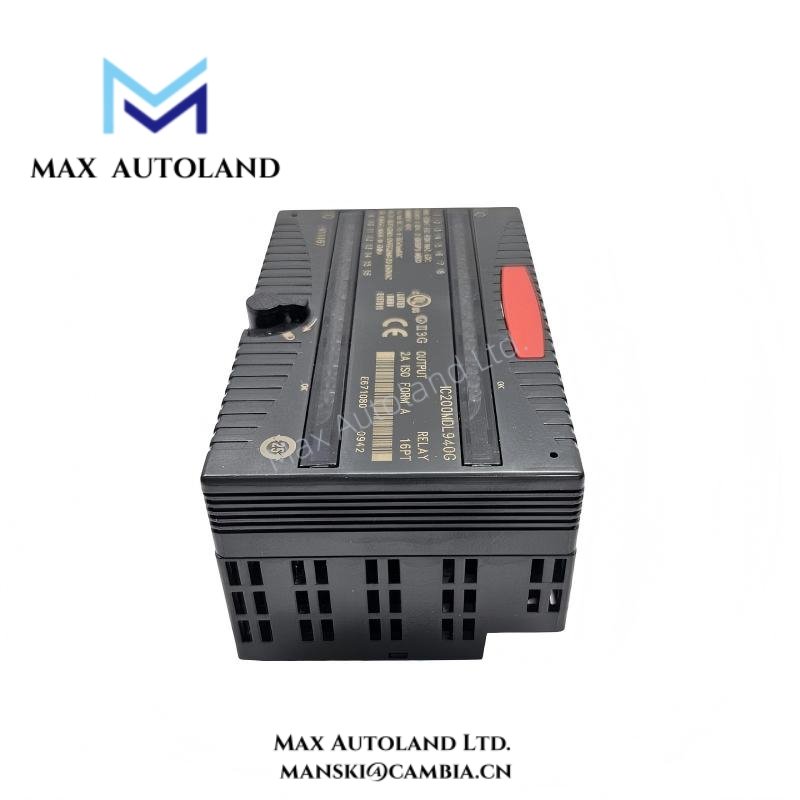

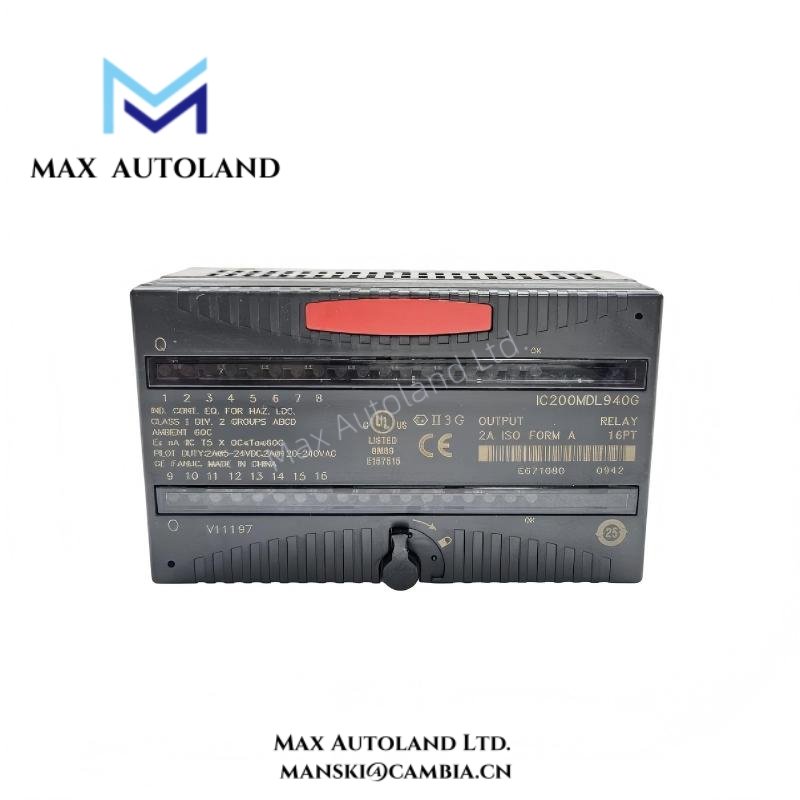

The IC200MDL940 module provides reliable relay output control for VersaMax modular automation systems.
Engineers use this module to drive actuators, indicators, and auxiliary devices requiring discrete relay outputs in industrial applications.
Designed by General Electric, the module integrates seamlessly with VersaMax I/O carriers, delivering robust switching performance.
Moreover, its compact design allows dense installation in control panels, saving valuable space while ensuring reliable electrical isolation.
Therefore, the IC200MDL940 module ensures precise output control, ideal for distributed I/O systems in manufacturing, process control, and machine automation.
In addition, built-in LED indicators provide immediate visual feedback of relay states, simplifying commissioning and troubleshooting.
Specification
| Parameter | Specification |
|---|---|
| Product Model | IC200MDL940 |
| Manufacturer | General Electric |
| Product Series | VersaMax Modular I/O |
| Module Type | Relay Output Module |
| Number of Outputs | 8 discrete relay outputs |
| Output Type | Form A (SPST) relay contacts |
| Output Rating (DC) | 2 A at 30 V DC |
| Output Rating (AC) | 0.5 A at 125 V AC |
| Contact Material | Silver alloy for durability |
| Response Time | Typical 5 ms |
| Isolation | Electrical isolation between outputs and backplane |
| Backplane Interface | VersaMax modular backplane |
| Configuration | Programmed via VersaMax PLC software |
| LED Indicators | One per output for status indication |
| Power Supply | Powered via VersaMax I/O carrier |
| Power Consumption | Approx. 2.8 W |
| Module Width | 66 mm |
| Module Height | 130 mm |
| Module Depth | 73 mm |
| Approximate Weight | 0.31 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | −40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Mounting Method | VersaMax modular carrier installation |
| Industrial Standards | Designed for industrial automation environments |
FAQ
Q1: What is the maximum number of relay outputs in IC200MDL940?
The IC200MDL940 provides eight discrete relay output channels for industrial automation control.
Q2: Can the module handle AC and DC loads?
Yes, it supports 2 A at 30 V DC and 0.5 A at 125 V AC for various applications.
Q3: How do I verify the output status?
LED indicators on each output channel allow immediate visual confirmation of relay states.
Q4: Is the module compatible with VersaMax I/O carriers?
Yes, it integrates seamlessly with VersaMax modular backplanes and I/O carriers.
Q5: Do you provide original new IC200MDL940 modules?
Yes, we supply brand-new original modules, with available stock ready for fast shipping.
Q6: What is the typical delivery time after placing an order?
Orders typically ship within 3 days to 2 weeks depending on order size and logistics.
