Overview

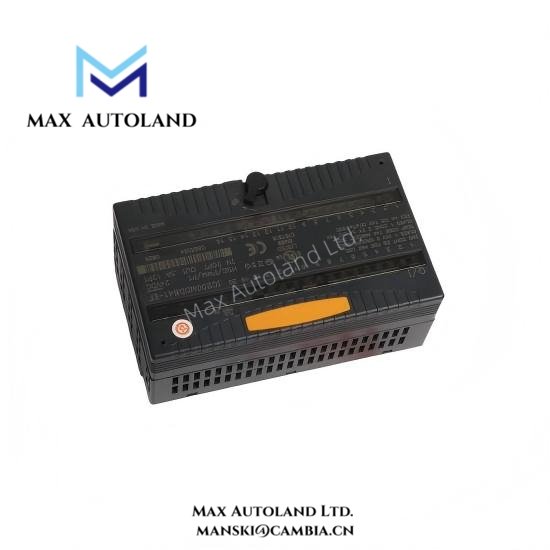

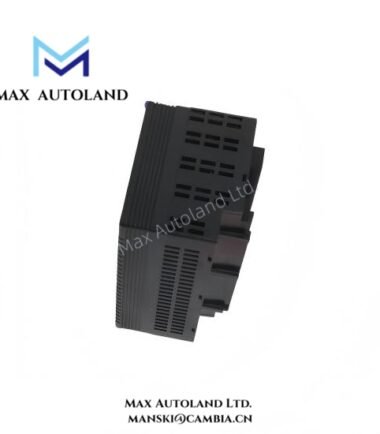

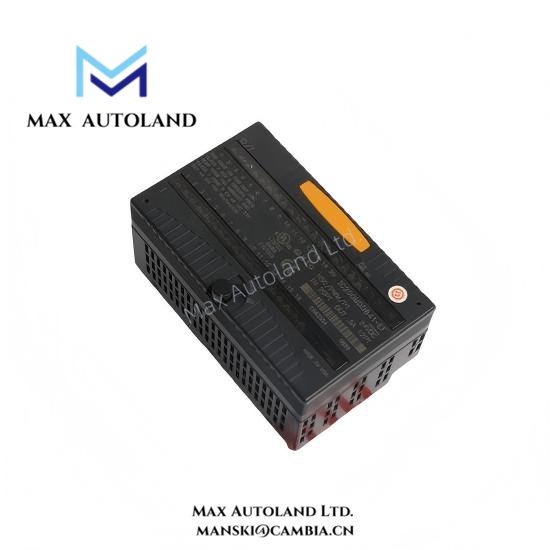

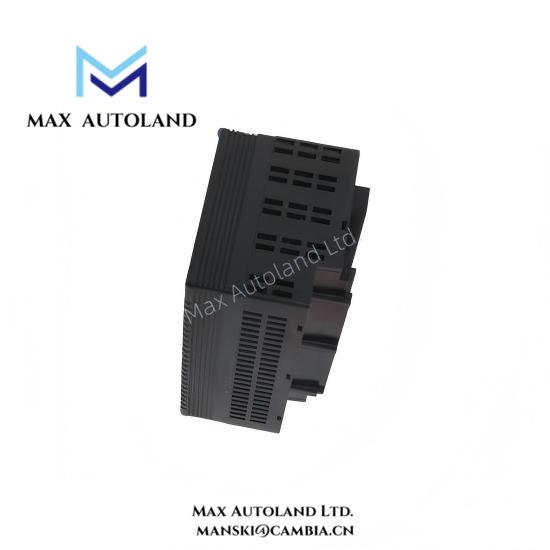

The IC200MDD841 module combines discrete I/O control with high-speed counting capabilities for industrial automation systems.
Engineers choose this module for applications requiring simultaneous monitoring of digital inputs and precise event counting within compact PLC architectures.
Designed by General Electric, the module integrates seamlessly with the VersaMax modular I/O system.
Moreover, it ensures accurate high-speed counting operations while maintaining reliable discrete input/output performance for various industrial processes.
Therefore, the IC200MDD841 module optimizes control loops and machine automation tasks, providing a flexible solution for both discrete control and high-speed counting.
In addition, system integrators benefit from its scalable architecture, enabling easy expansion across complex distributed automation systems.
Specification
| Parameter | Specification |
|---|---|
| Product Model | IC200MDD841 |
| Manufacturer | General Electric |
| Product Series | VersaMax Modular I/O |
| Module Type | Mixed Discrete / High-Speed Counter Module |
| Discrete Inputs | 8 channels, sourcing or sinking configurable |
| Discrete Outputs | 4 channels, relay type |
| High-Speed Counters | 2 channels, up to 100 kHz counting frequency |
| Counter Modes | Up/down counting, quadrature input |
| Input Voltage Range | 24 V DC nominal |
| Output Voltage Range | 24 V DC for discrete outputs |
| Output Current Capacity | 0.5 A per channel |
| Response Time | Typically 1 ms for discrete inputs |
| Diagnostic Indicators | LED status indicators for I/O and counters |
| Communication Interface | VersaMax modular backplane |
| Configuration | Programmed via VersaMax programming software |
| Power Supply | Powered via VersaMax I/O carrier |
| Power Consumption | Approx. 3.5 W |
| Module Width | 66 mm |
| Module Height | 130 mm |
| Module Depth | 73 mm |
| Approximate Weight | 0.32 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | −40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Mounting Method | VersaMax I/O modular carrier |
| Industrial Standards | Designed for distributed automation and machine control |
FAQ
Q1: What types of I/O does the IC200MDD841 support?
The IC200MDD841 provides 8 discrete inputs, 4 discrete outputs, and 2 high-speed counters for industrial applications.
Q2: What is the maximum counting frequency for the high-speed counters?
The module supports up to 100 kHz counting frequency, suitable for fast pulse events and encoder monitoring.
Q3: Can the module integrate with existing VersaMax systems?
Yes, the module integrates seamlessly with VersaMax modular backplane and distributed I/O carriers.
Q4: What is the operating voltage for discrete channels?
Discrete input and output channels operate at 24 V DC nominal, compatible with standard industrial devices.
Q5: Are IC200MDD841 modules supplied as new original hardware?
Yes, we provide brand-new original IC200MDD841 modules, ensuring long-term reliability in industrial automation.
Q6: What is the typical delivery time after placing an order?
Orders usually ship within 3 days to 2 weeks depending on quantity and inventory availability.
