Overview

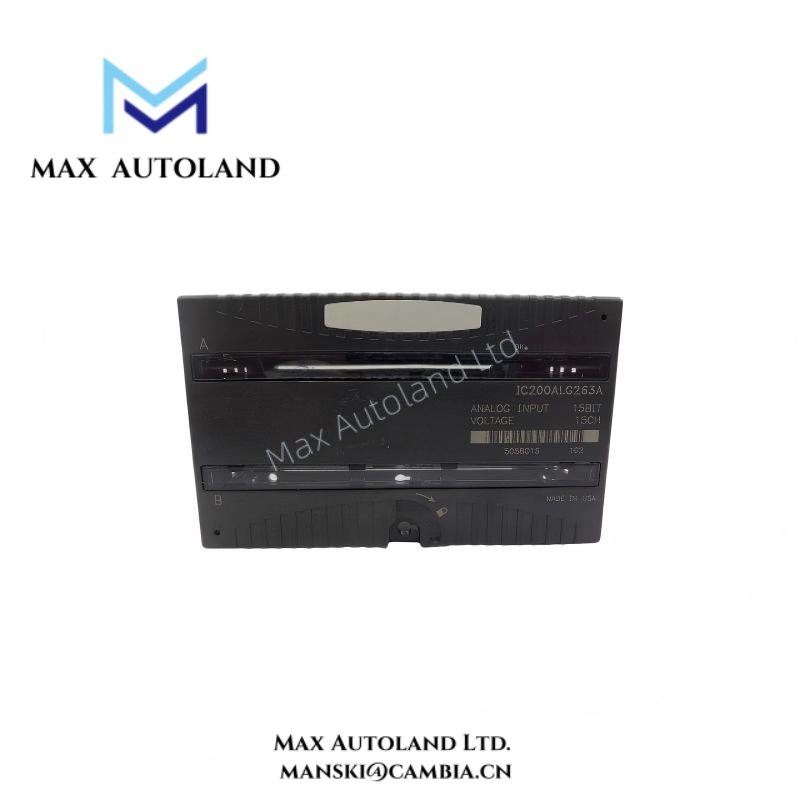

IC200ALG263 belongs to the VersaMax distributed I/O platform developed by GE for compact industrial automation systems.
This module captures high-resolution voltage signals from sensors, transmitters, and industrial instrumentation devices across multiple automation environments.
Moreover, IC200ALG263 integrates eight independent voltage input channels within a compact VersaMax module housing.
The module converts analog field signals into precise digital values for PLC processing and real-time industrial monitoring tasks.
In addition, the 15-bit resolution ensures accurate measurement of small signal variations within demanding industrial process control systems.
Therefore engineers rely on IC200ALG263 when applications require stable data acquisition from instrumentation loops and analog measurement devices.
Furthermore, the module installs directly into VersaMax base units, therefore system expansion remains simple and efficient.
Specification
| Parameter | Specification |
|---|---|
| Model | IC200ALG263 |
| Manufacturer | GE |
| Product Series | VersaMax PLC I/O System |
| Module Type | Voltage Analog Input Module |
| Analog Input Channels | 8 differential channels |
| Input Signal Type | Voltage input |
| Supported Voltage Range | ±10 V DC |
| Resolution | 15-bit analog-to-digital conversion |
| Input Impedance | Greater than 1 MΩ |
| Conversion Method | Successive approximation ADC |
| Data Update Rate | Approx. 10 ms typical |
| Accuracy | ±0.1% of full scale typical |
| Channel Isolation | Channel-to-channel electrical isolation |
| Backplane Power Supply | 5 VDC from VersaMax base |
| Backplane Current Consumption | Approx. 60 mA |
| External Field Power | Not required for voltage inputs |
| Signal Filtering | Digital noise filtering integrated |
| Diagnostic Indicators | Power LED and module status indicator |
| Terminal Type | Removable screw terminal block |
| Wiring Capacity | 22–14 AWG field wiring |
| Number of Terminals | 20 connection terminals |
| Mounting Method | DIN rail mounting within VersaMax base |
| Module Dimensions | Approx. 110 mm × 66 mm × 50 mm |
| Weight | Approx. 0.3 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | −40°C to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Typical PLC Integration | VersaMax CPU and distributed I/O nodes |
FAQ
Q1: Is the IC200ALG263 module new and original?
Yes. All IC200ALG263 modules we supply are brand-new original units with factory packaging.
Q2: Do you have IC200ALG263 available in stock?
Yes. We usually keep IC200ALG263 in stock and ready for immediate order processing.
Q3: How quickly can you ship the IC200ALG263 module?
Orders normally ship within 3 days to 2 weeks depending on order size and warehouse inventory allocation.
Q4: Which logistics companies do you use for shipping?
We commonly use international carriers such as DHL to ensure fast and reliable delivery worldwide.
Q5: What type of signals can IC200ALG263 measure?
The module measures voltage signals up to ±10 V from industrial sensors and instrumentation transmitters.
Q6: What happens if the product has a quality issue?
If any quality problem occurs, we support product returns within 30 days according to our service policy.
