Overview

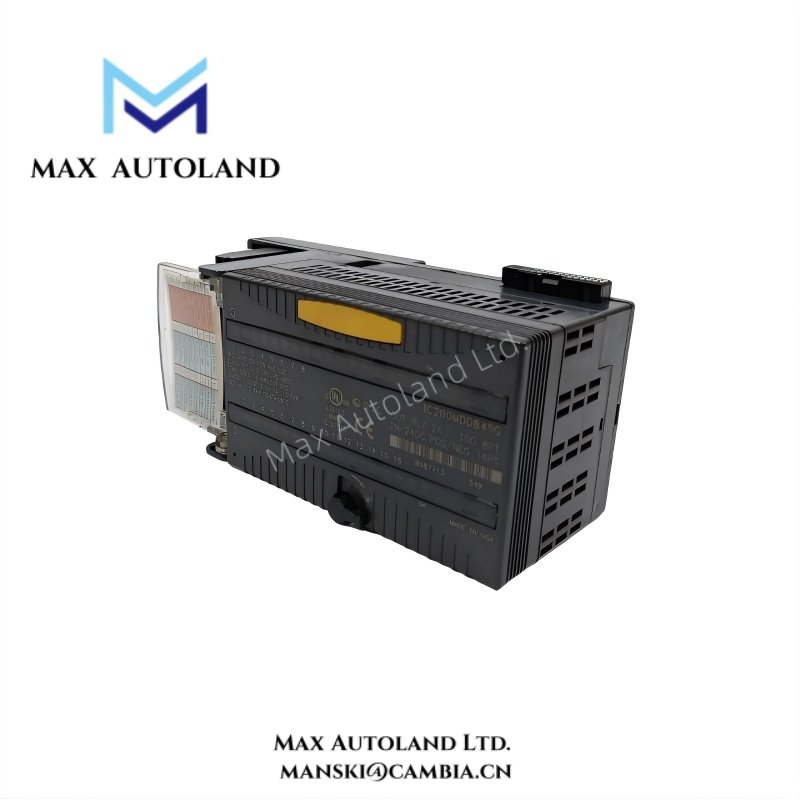

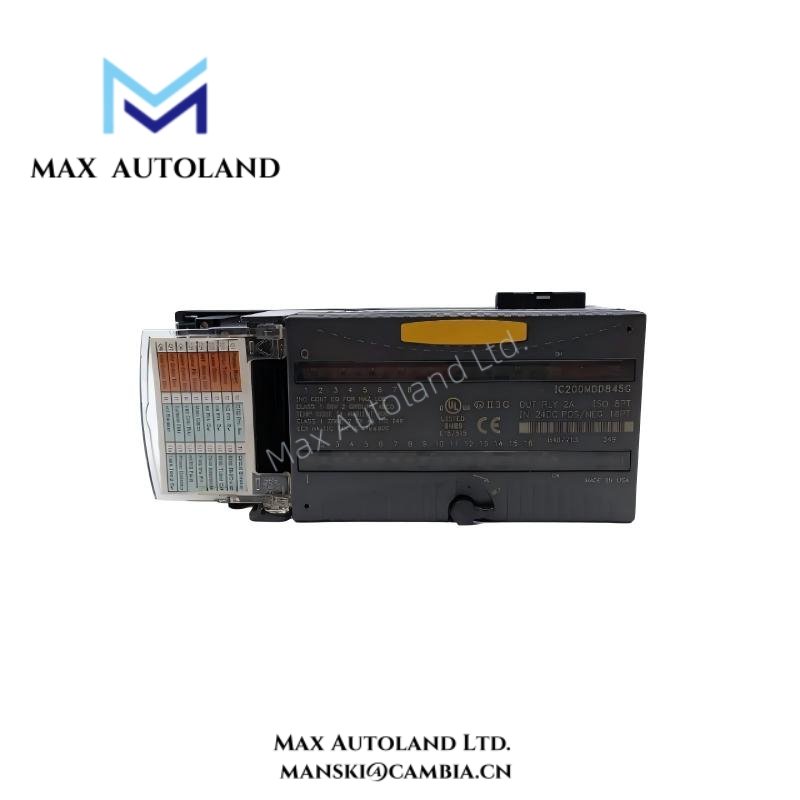

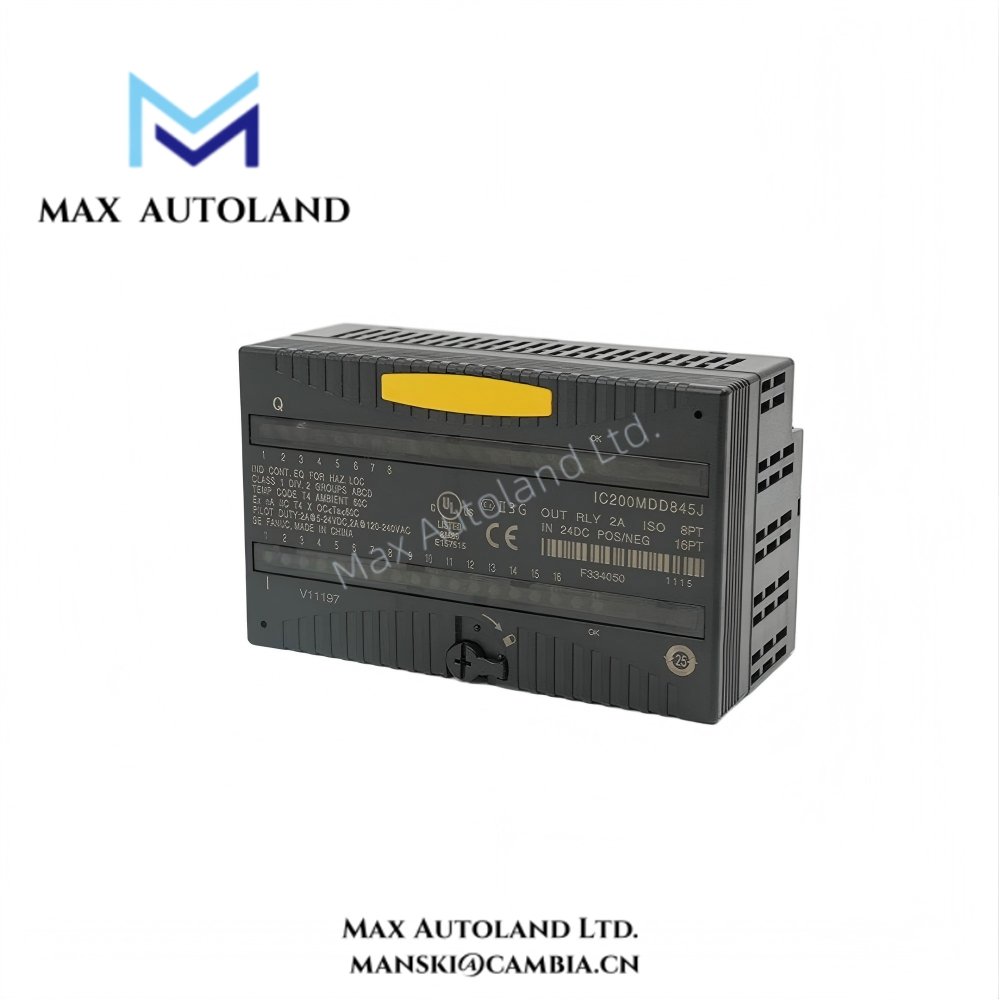

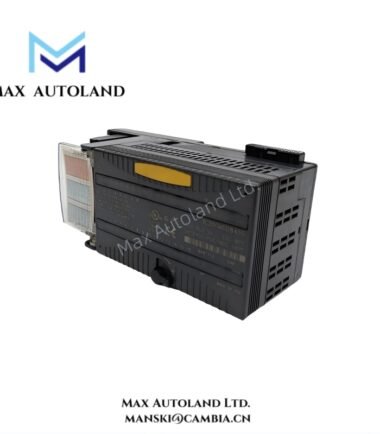

IC200MDD845 belongs to the VersaMax distributed I/O family developed by GE for compact industrial automation systems.
This module delivers reliable mixed relay output switching for PLC-based control panels, machinery interfaces, and distributed industrial I/O networks.
Moreover, IC200MDD845 integrates eight relay output channels within a compact housing designed for dense control cabinet installations.
The VersaMax architecture allows fast installation, therefore engineers expand PLC systems without redesigning existing rack structures.
In addition, IC200MDD845 connects directly to the VersaMax backplane and distributes switching commands from the PLC processor.
The module switches AC or DC loads through mechanical relays, therefore industrial devices receive robust electrical isolation and dependable control signals.
Furthermore, the design emphasizes electrical durability, stable relay contacts, and reliable wiring terminals for long-term industrial operation.
Specification
| Parameter | Specification |
|---|---|
| Model | IC200MDD845 |
| Manufacturer | GE |
| Series | VersaMax PLC I/O System |
| Module Type | Mixed Relay Output Module |
| Output Channels | 8 relay output channels |
| Output Type | Electromechanical relay contacts |
| Contact Configuration | Normally open relay contacts |
| Rated Output Voltage | 5–250 VAC / 5–30 VDC |
| Maximum Switching Current | 2 A per channel |
| Maximum Switching Power | 60 W (DC) / 125 VA (AC) |
| Minimum Switching Load | 10 mA |
| Relay Isolation | Channel-to-channel electrical isolation |
| Output Response Time | Approx. 10 ms relay switching |
| Mechanical Relay Life | Up to 10 million operations (typical) |
| Electrical Relay Life | Approximately 100,000 operations at rated load |
| Backplane Voltage | 5 VDC |
| Backplane Current Consumption | Approx. 75 mA |
| Field Wiring Terminals | 20 screw terminals |
| Wiring Size | 22–14 AWG |
| Mounting Method | DIN rail mounting |
| Module Dimensions | Approx. 110 mm × 66 mm × 50 mm |
| Weight | Approx. 0.3 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | −40°C to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Status Indicators | Power LED and individual output status indicators |
| System Compatibility | VersaMax PLC CPU and remote I/O systems |
FAQ
Q1: Is the IC200MDD845 module new and original?
Yes. All IC200MDD845 modules we supply are brand-new original units with factory packaging.
Q2: Do you keep IC200MDD845 in stock?
Yes. We usually keep IC200MDD845 available in stock for immediate order processing.
Q3: How long does shipping usually take?
Orders typically ship within 3 days to 2 weeks depending on order quantity and warehouse allocation.
Q4: Which logistics carriers do you use for delivery?
We commonly use international carriers such as DHL, which ensures fast and traceable global delivery.
Q5: Can IC200MDD845 switch both AC and DC loads?
Yes. The relay contacts support both AC and DC switching loads within the specified voltage and current ratings.
Q6: What happens if the product has a quality problem?
If any quality issue appears, we support returns within 30 days according to our after-sales service policy.
