Overview
Specification
| Parameter | Specification |
|---|---|

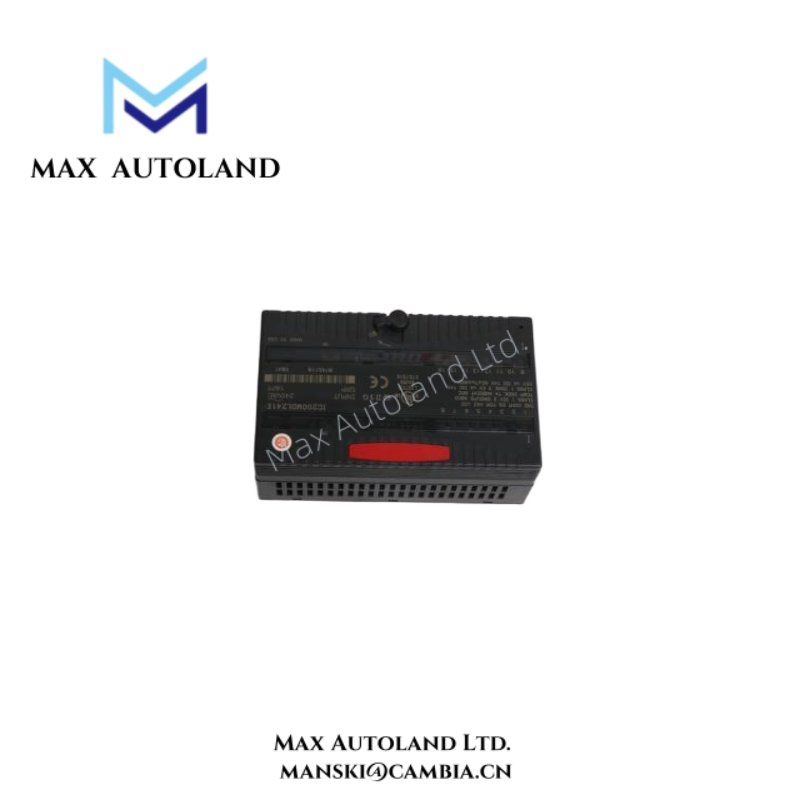

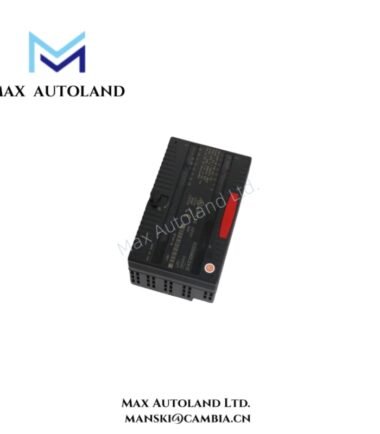

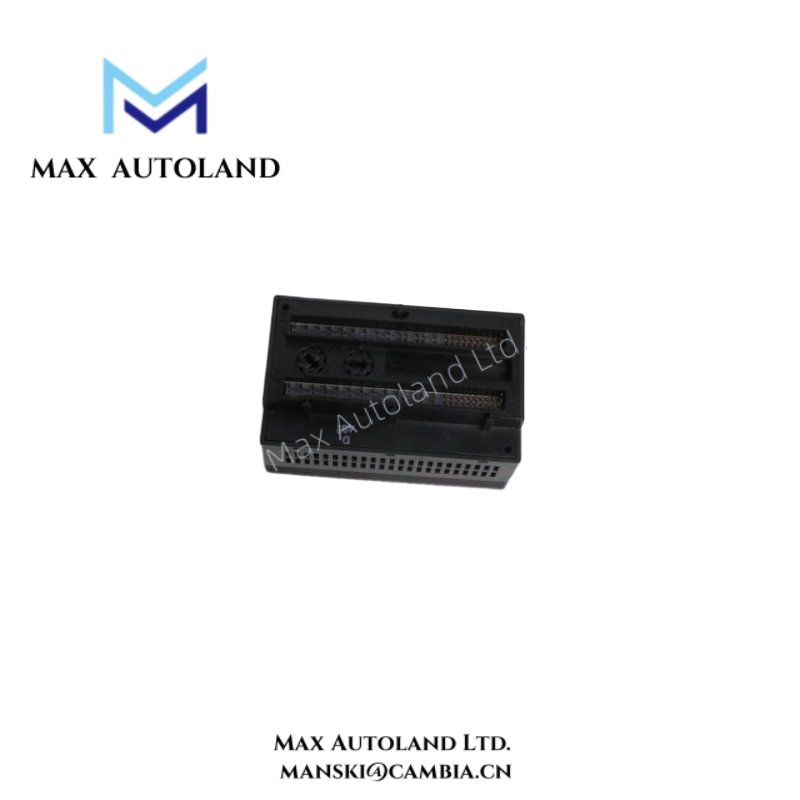

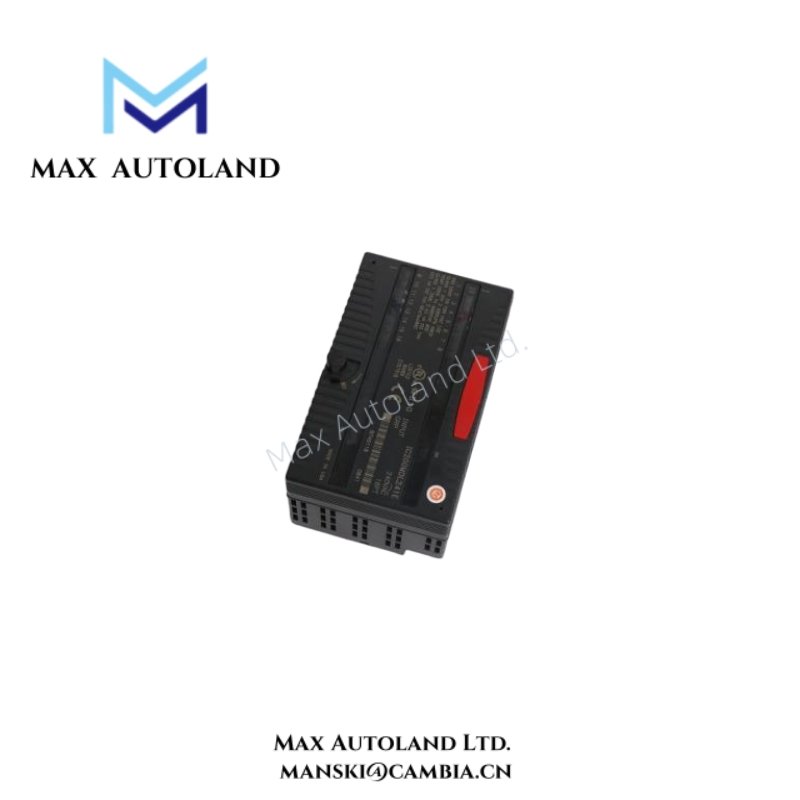

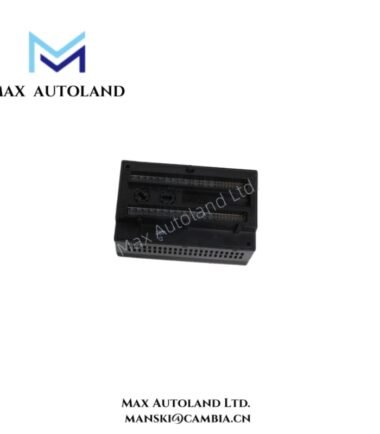

| Model | IC200MDL241 |
| Module Type | Discrete I/O Module |
| Digital Inputs | 16 channels, 24 VDC |
| Digital Outputs | 16 channels, 24 VDC, 0.5 A per channel |
| Input Type | Sinking or sourcing, compatible with standard industrial signals |
| Output Type | Sourcing with overload and short-circuit protection |
| Communication | VersaMax backplane interface to CPU |
| Power Supply | 5 VDC ±5%, 0.7 A typical |
| Power Consumption | Approximately 4 W |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting | DIN rail or panel mount |
| Dimensions | 122 mm (H) x 35 mm (W) x 112 mm (D) |
| Status Indicators | LEDs for RUN, ERROR, and channel activity |
| Certifications | CE, UL Listed |
| Environmental Protection | Resistant to vibration, electrical noise, and industrial stress |
| Typical Applications | Factory automation, process control, packaging, material handling |
FAQ
It provides 16 discrete inputs and 16 discrete outputs at 24 VDC.
Q2: Can it integrate with VersaMax CPU modules?
Yes, it communicates via the VersaMax backplane interface for seamless integration.
Q3: What is the operating temperature range?
The module operates reliably between 0°C to 60°C (32°F to 140°F).
Q4: How are I/O statuses monitored?
LED indicators show RUN, ERROR, and channel activity for quick diagnostics.
Q5: Is it suitable for industrial environments?
Yes, it resists vibration, electrical noise, and standard industrial stresses.
