Overview

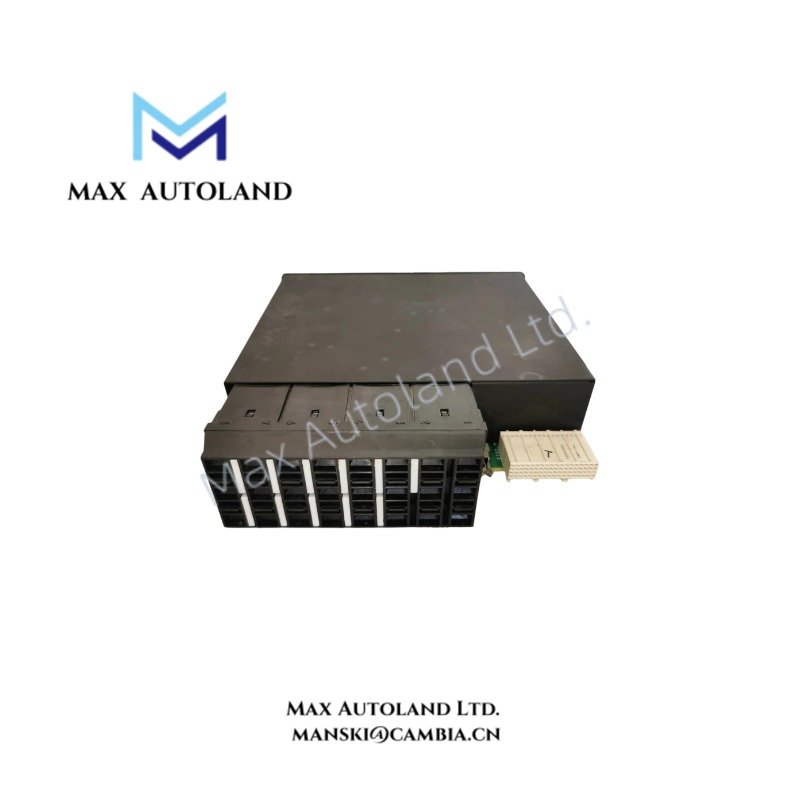

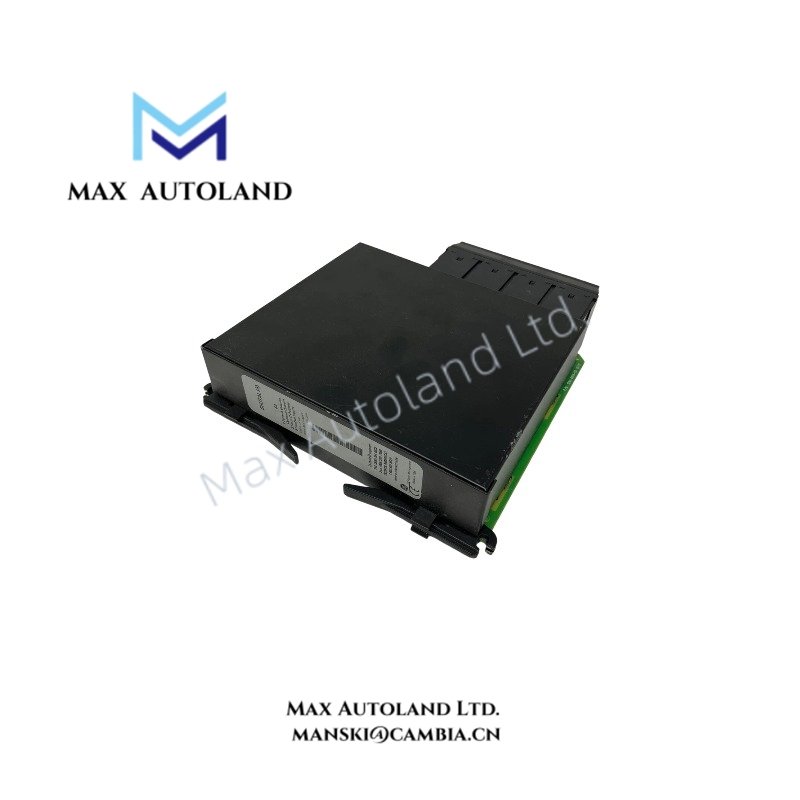

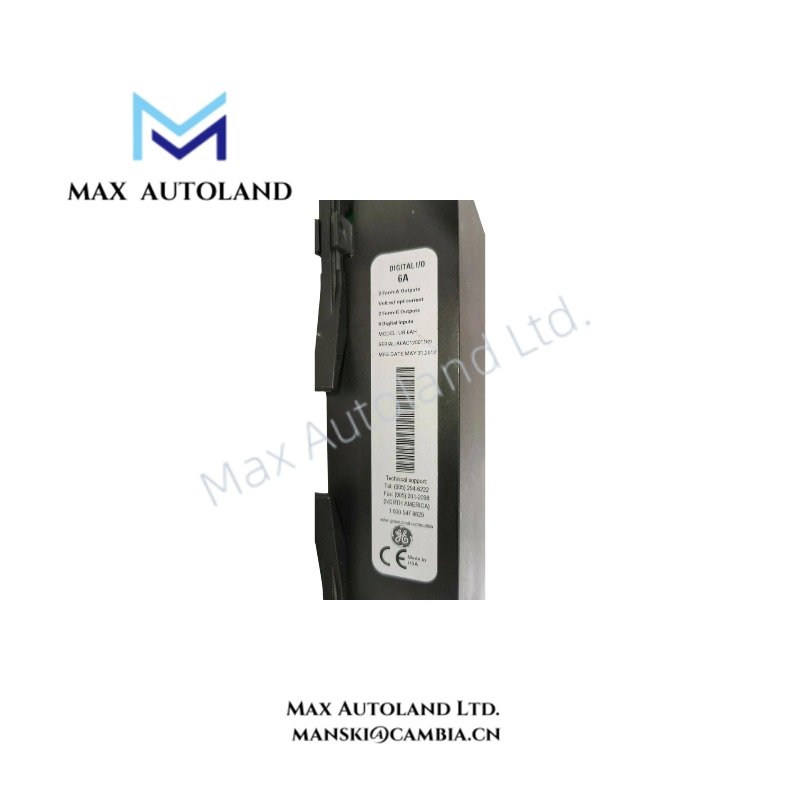

The GE Multilin UR6AH, also cataloged as the UR6AH Universal Relay Digital I/O Module, operates as a dedicated hardware component for digital signal execution and control interfacing within GE Multilin UR Series relay platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | UR6AH |
| Brand | GE Multilin |
| Product Type | Digital I/O Module |
| Origin | United States |
| Dimensions | UR chassis plug-in module format |
| Operating Temp | -40 deg C to +60 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Humidity | Up to 95% RH, non-condensing at 55 deg C |
| Power Consumption | Low internal backplane power consumption, value depends on chassis configuration |
| Input Voltage Range | Supports typical substation control voltage applications, including 110 VDC to 250 VDC nominal systems |
| AC Input Range | Supports standard 120 VAC and 220 VAC control circuits |
| Contact Output Rating | Make and carry: 30 A for 0.2 seconds; continuous carry: 8 A limiting value |
| Internal Interface | High-speed UR Series backplane bus connection |
| Communication Protocols | IEC 61850, DNP 3.0, Modbus RTU/TCP compatibility |
| Dielectric Strength | 2 kV AC for 1 minute according to IEC 60255-5 |
| Surge Withstand | ANSI/IEEE C37.90.1 oscillatory and fast transient immunity |
| Protection Class | IP20 when installed inside the UR relay chassis |
GE Multilin UR Series Backplane and I/O Integration
The UR6AH module interfaces directly with the GE Multilin Universal Relay internal backplane architecture. Therefore, it exchanges control data with the main processing module through the chassis communication bus. The module supports digital signal acquisition and output execution functions while maintaining electrical separation between field wiring and relay processing circuits.
In addition, the UR platform supports firmware flash compatibility across supported hardware configurations. The module operates within the UR Series modular architecture, allowing I/O density scaling through chassis-based hardware expansion.
The UR6AH supports integration with substation communication networks through the host relay platform. Consequently, systems can exchange protection, control, and monitoring data using IEC 61850, DNP 3.0, and Modbus communication interfaces.
Frequently Asked Questions
Q: Can the GE Multilin UR6AH be installed or removed under energized conditions?
A: The UR6AH uses a modular chassis mounting structure. Hot-swap operation depends on the specific UR relay chassis configuration and operating procedure. Field replacement should follow the applicable GE Multilin maintenance instructions.
Q: How does the UR6AH connect with the relay processor?
A: The module connects through the internal UR Series backplane bus. The processor manages module configuration, signal processing, and communication functions through the chassis interface.
Q: What installation considerations apply to UR6AH field wiring?
A: Field wiring should maintain proper separation between control circuits and high-energy conductors. Shielded cables, correct grounding practices, and terminal tightening procedures should follow substation engineering standards.
Field Installation Guidelines
- Install the UR6AH only in compatible GE Multilin UR Series relay chassis positions.
- Verify the chassis slot assignment before inserting the module.
- Ensure terminal wiring matches the approved relay connection diagram.
- Route digital input and output wiring separately from high-current power cables to reduce electrical interference.
- Connect cable shields according to site grounding practices and avoid multiple uncontrolled grounding points.
- Inspect terminal blocks and module connectors for contamination or mechanical damage before commissioning.
- Confirm firmware compatibility between the UR6AH hardware module and the installed UR relay application before system operation.
- Perform insulation, continuity, and functional verification tests after installation.
