Overview
Configured for generator differential protection, control logic execution, and electrical measurement processing in GE Universal Relay (UR) platforms, the GE Multilin G60E00HCLF8FH6PM8FP6CU6CW6C (G60 Generator Protection Relay) provides direct physical and electrical execution through CT/VT inputs, digital I/O modules, and communication interfaces.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | G60E00HCLF8FH6PM8FP6CU6CW6C |
| Brand | GE Multilin |
| Origin | GE Universal Relay (UR) Series |
| Product Type | Generator Protection Relay |
| Weight | Not specified in provided data |
| Dimensions | 19 inch rack mount, 4U height |
| Operating Temp | -40 deg C to +60 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Power Supply | 125-250 VDC / 110-230 VAC nominal |
| DC Operating Range | 88-300 VDC |
| AC Operating Range | 88-265 VAC, 45-66 Hz |
| Protection Functions | 87S, 87G, 24, 27, 59, 32, 40, 46, 50, 51, 50BF, 64S, 64TN, 78, 81O, 81U, 81R |
| CT Inputs | 1 A / 5 A dual-rated current inputs |
| CT Thermal Withstand | 20 A continuous, 500 A for 1 second |
| VT Inputs | 50-240 VAC phase-to-neutral nominal |
| VT Continuous Voltage | 260 VAC continuous |
| Communication Protocols | IEC 61850, Modbus RTU, Modbus TCP, DNP 3.0, IEEE 1588 PTP |
| Communication Interfaces | RS485, Ethernet, fiber communication options |
| Front Panel | Enhanced graphical display, English interface |
| Protection Rating | IP40 front panel, IP20 terminal block |
| Engineering Software | EnerVista UR Setup Utility |
The GE Multilin G60 integrates generator protection functions with programmable control logic through the UR platform architecture. Therefore, the relay processes current and voltage inputs from generator circuits, applies protection algorithms, and issues trip or control outputs through configurable I/O modules.

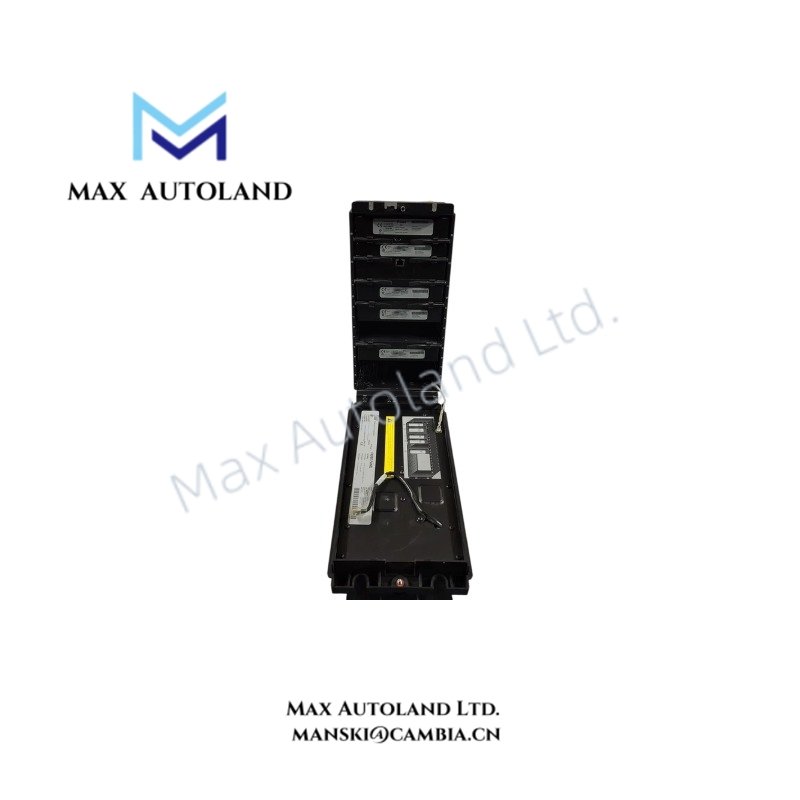

The configured hardware includes dual CT/VT DSP input modules, multiple digital input and output expansion modules, and communication resources for substation automation. The relay supports generator applications requiring stator differential protection, ground fault detection, excitation monitoring, power protection, and frequency supervision.
GE Multilin UR Platform Communication and Control Features
The G60 operates within the GE Universal Relay platform and uses modular hardware design for protection and automation functions. It supports IEC 61850 communication for substation data exchange and provides Ethernet, RS485, and fiber communication options depending on installed modules.
The relay uses FlexLogic programming to execute customized control sequences. Additionally, the modular I/O structure allows users to configure trip outputs, breaker control circuits, alarms, and monitoring signals according to generator protection schemes.
The UR platform supports firmware flash compatibility across supported hardware configurations. Furthermore, the relay architecture allows I/O density scaling through configurable module selection while maintaining communication and protection processing functions.
Frequently Asked Questions
Q: Does the G60E00HCLF8FH6PM8FP6CU6CW6C support IEC 61850 communication?
A: Yes. The relay supports IEC 61850 communication along with Modbus RTU, Modbus TCP, DNP 3.0, and IEEE 1588 PTP synchronization.
Q: What type of input signals does this G60 configuration process?
A: The relay processes generator current and voltage signals through CT and VT DSP modules. The installed configuration includes 4 CT / 4 VT input capability and an additional CT/VT expansion module.
Q: Can the G60 operate with multiple digital I/O expansion modules?
A: Yes. This configuration includes several digital input and output modules for breaker control, protection trips, alarms, and auxiliary monitoring circuits.
