Overview

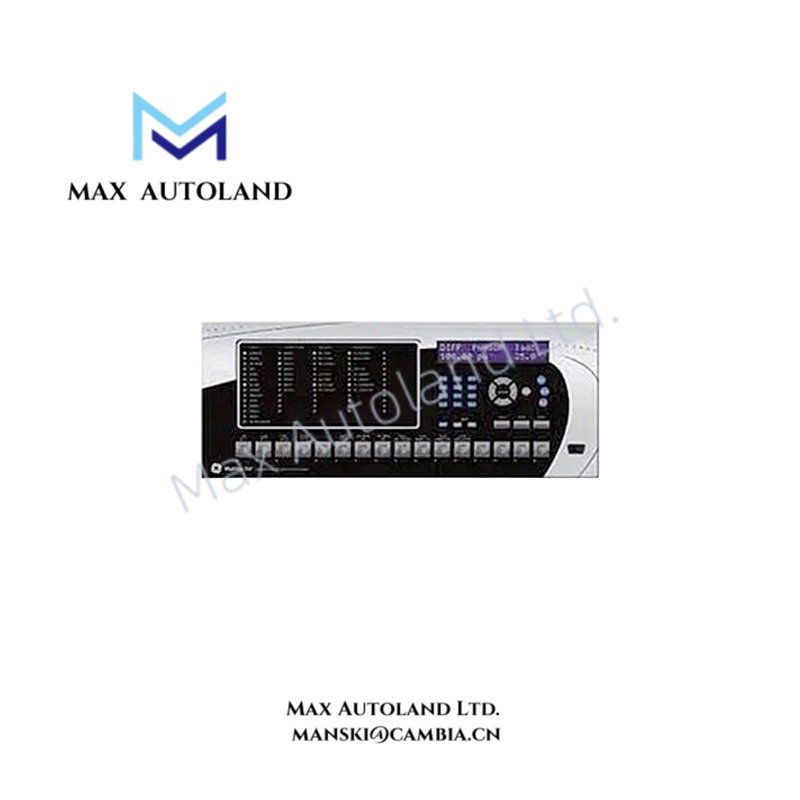

Configured for generator electrical protection processing and control execution in GE Multilin Universal Relay platforms, the GE Multilin G60-K03-HLH-F8M-H6G-M8M-P4L-U6T-W6C (G60 Generator Protection Relay) provides direct physical and electrical signal acquisition, protection logic execution, and communication functions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | GE Multilin G60-K03-HLH-F8M-H6G-M8M-P4L-U6T-W6C |
| Brand | GE Multilin |
| Origin | United States |
| Product Type | Generator Protection Relays |
| Protection Platform | Universal Relay (UR) Series |
| Power Supply | 110-250 VDC or 110-230 VAC nominal |
| CT Inputs | Configurable 1 A or 5 A secondary current inputs |
| VT Inputs | 50-240 VAC nominal voltage inputs |
| Communication Ports | Ethernet, RS232, USB maintenance port |
| Communication Protocols | IEC 61850 Ed. 1 / Ed. 2, Modbus RTU/TCP, DNP 3.0, IEEE C37.118 |
| Protection Functions | 87G, 87S, 21, 50/51, 27, 59, 64, 32, 49, 46, 81, 78 |
| Operating Temp | -40 deg C to +60 deg C |
| Enclosure | 19 inch rack-mount chassis, 4U height, IP40 front panel |
Industrial Control Platform Integration and Communication Processing
The GE Multilin G60 uses a modular Universal Relay hardware architecture with configurable processing, input, output, and communication modules. The relay receives generator current and voltage signals through CT and VT interfaces, then executes protection algorithms through embedded digital processing.
In addition, the G60 supports deterministic communication networks through Ethernet-based protocols, including IEC 61850 and Modbus TCP. The hardware configuration supports I/O density scaling by adding digital and analog interface modules according to protection scheme requirements.
The relay firmware manages protection logic, event recording, metering, and programmable control functions. Firmware flash compatibility allows controlled software maintenance while preserving configured protection parameters.
Frequently Asked Questions
Q: Does the G60-K03-HLH-F8M-H6G-M8M-P4L-U6T-W6C support hot-swapping of installed modules?
A: The UR platform uses modular construction; however, module replacement procedures must follow GE Multilin maintenance instructions. Protection functions should be disabled or isolated before hardware changes.
Q: What input signals does the F8M module process?
A: The F8M module provides CT and VT interfaces for generator current and voltage measurement. The exact input scaling depends on the configured hardware and application settings.
Q: Which communication networks can the G60 relay connect to?
A: The relay supports IEC 61850, Modbus RTU/TCP, DNP 3.0, and IEEE C37.118 communication interfaces through configured communication modules.
Field Installation Guidelines
- Install the relay inside a suitable protection panel with proper mechanical support for the 19 inch rack chassis.
- Connect CT secondary wiring using dedicated terminal blocks and maintain correct polarity to prevent measurement errors.
- Separate CT/VT signal cables from high-current power cables to reduce electromagnetic interference.
- Ground cable shields according to the protection panel grounding design and maintain low-impedance connections.
- Verify VT and CT ratios before commissioning protection settings.
- Confirm Ethernet fiber or copper communication wiring meets the selected network interface requirements.
- Perform insulation checks and terminal inspection before applying auxiliary power.
- Validate protection settings, input scaling, and trip logic through secondary injection testing before energizing the protected equipment.
