Overview

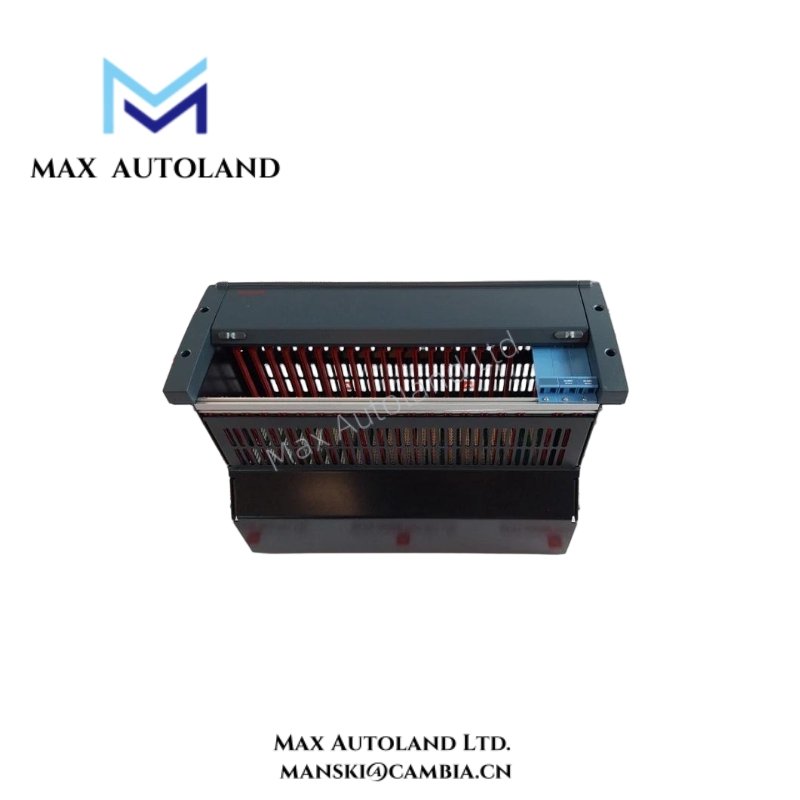

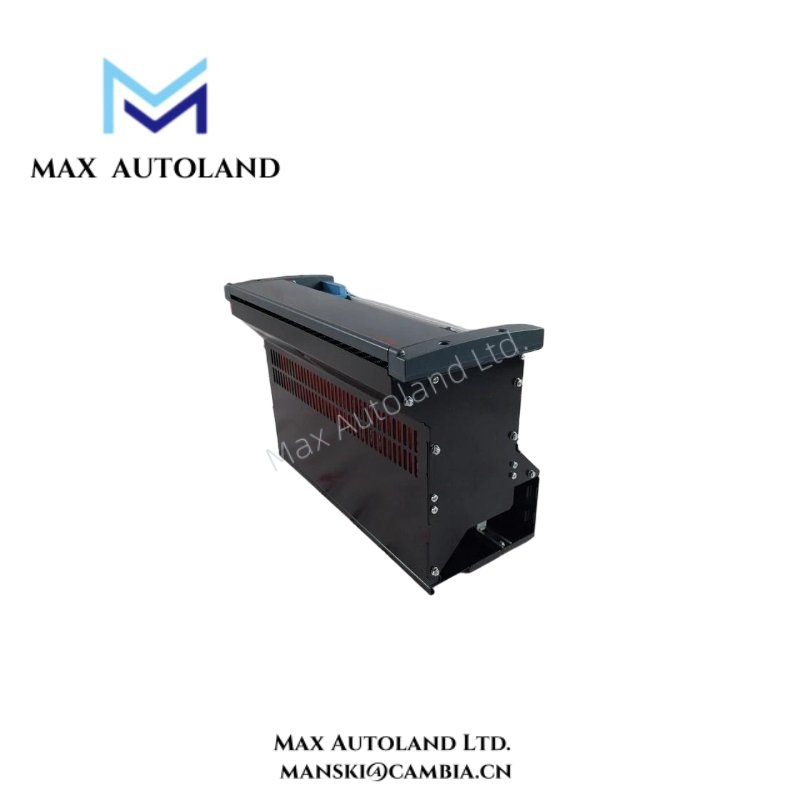

The Honeywell FC-IOCHAS-0003S chassis provides a robust platform for redundant I/O modules, ensuring high availability in industrial control systems. It supports multiple hot-swappable modules, allowing engineers to replace or upgrade components without disrupting operations. Moreover, the chassis integrates with Honeywell Experion PKS networks, providing reliable communication and control for process automation. Therefore, it is ideal for mission-critical applications where uptime and data integrity are essential. In addition, its modular design simplifies maintenance and expansion while maintaining optimal performance.
Specification
| Specification | Details |
|---|---|
| Model | FC-IOCHAS-0003S |
| Module Slots | 12 redundant I/O module slots |
| Module Compatibility | Honeywell redundant I/O modules |
| Power Supply | 24 VDC nominal, dual-redundant input supported |
| Power Consumption | Approx. 150 W fully populated |
| Mounting | 19-inch rack mountable or panel-mountable |
| Dimensions | Width: 483 mm (19 in), Height: 133 mm (3U), Depth: 400 mm |
| Weight | Approx. 12 kg (26.5 lbs) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Hot-Swap Capability | Yes, allows replacement of modules without shutting down system |
| Cooling | Convection cooled with optional fan support |
| Indicators | LED status indicators for each module and power supply |
| Connectivity | Supports Honeywell Experion PKS communication and control network |
| Safety & Compliance | CE, UL listed, conforms to industrial EMC and safety standards |
| Environmental Protection | IP20 (enclosed electronics), suitable for indoor industrial environments |
| Redundancy | Supports redundant I/O and dual power supply for high availability |
| Maintenance | Easy access for module installation and replacement |
| Typical Applications | Continuous process control, chemical, oil & gas, power plants, redundant I/O installations |
FAQ
Q1: What is the maximum number of I/O modules supported?
A1: The FC-IOCHAS-0003S chassis supports up to 12 redundant I/O modules.
Q2: Can I replace modules without shutting down the system?
A2: Yes, the chassis supports hot-swappable modules for uninterrupted operation.
Q3: What power supply does the chassis require?
A3: It requires a 24 VDC nominal input and supports dual-redundant power supplies.
Q4: Is the chassis compatible with Honeywell Experion PKS networks?
A4: Yes, it integrates seamlessly for reliable communication and control.
Q5: What are the operating temperature limits?
A5: The chassis operates reliably between 0°C to 60°C (32°F to 140°F).
