Overview

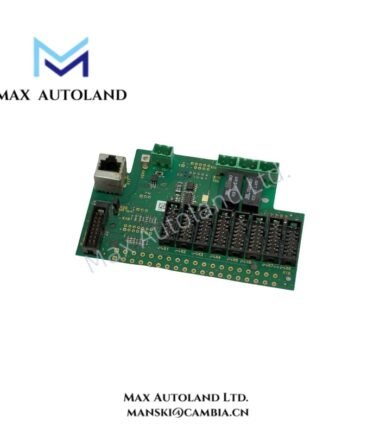

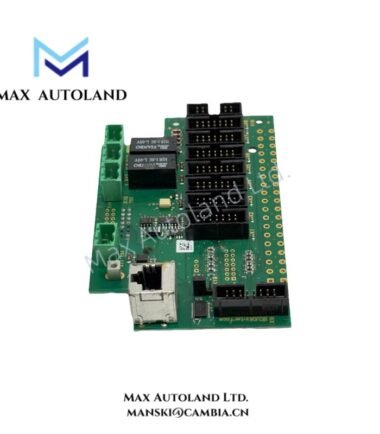

Configured for control processing and system communication in ABB automation architectures, the ABB BCU05 (BCU05 Control and Bus Connection Unit) provides direct physical and electrical execution for data acquisition, signal distribution, and bus-level communication. The exact functional role depends on the installed ABB system variant and associated hardware configuration.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | BCU05 |
| Brand | ABB |
| Product Type | Control and Bus Connection Unit |
| Primary Function | Control processing, data acquisition, signal distribution, and system communication |
| System Compatibility | ABB automation and control system configurations |
| Operating Voltage / Power Supply | 24 V DC, typical for system variants |
| Communication Interfaces | RS-232, RS-485, Ethernet, ARCNET, or CS31 bus depending on application |
| Communication Function | System data exchange and bus-level communication |
| Mounting Type | DIN rail, panel mount, or rack/back-side installation depending on system variant |
| Protection Class | IP20 |
| Operating Temp | -20 to +70 deg C, according to provided data |
| Storage Temperature | -40 to +85 deg C |
| Compliance | CE and applicable EMC industrial standards |
| EMC Standards | EN 55011 and EN 61000, according to system configuration |
ABB Backplane and Industrial Communication Integration
The BCU05 operates within an ABB control architecture where internal bus communication and external network interfaces depend on the associated system version. Communication functions may use serial interfaces or ABB-specific bus structures, while some configurations support Ethernet-based data exchange.
Furthermore, correct backplane and bus communication requires compatibility between the BCU05 hardware revision, installed firmware, and connected system components. Firmware flash compatibility should therefore be verified against the applicable ABB system documentation before replacement or commissioning.
Frequently Asked Questions
Q: Can the ABB BCU05 be installed as a universal communication module?
A: No. The BCU05 function depends on the ABB system architecture and configured application. Interface availability and bus compatibility must be verified against the associated controller or RTU configuration.
Q: Does the BCU05 support hot replacement?
A: The provided data does not specify hot-swap capability. Therefore, power isolation and system shutdown procedures should follow the applicable ABB installation documentation before module replacement.
Q: What should be checked before installing a replacement BCU05?
A: Verify the exact hardware model, system compatibility, connector arrangement, supply voltage, communication interface, and firmware requirements before installation.
Field Installation Guidelines
- Confirm that the installed module identification matches BCU05 and the applicable ABB system configuration.
- Isolate the system power before connecting or removing the unit unless the host system documentation explicitly permits energized replacement.
- Verify the 24 V DC supply polarity and terminal assignment before applying power.
- Route communication and signal wiring separately from high-current power conductors and motor cables.
- Apply cable shielding and grounding according to the applicable ABB system grounding arrangement.
- Check connector engagement and mechanical mounting before commissioning.
- Verify communication parameters and system diagnostics after installation.
- Confirm firmware compatibility when replacing an existing module or modifying the system configuration.
