Overview

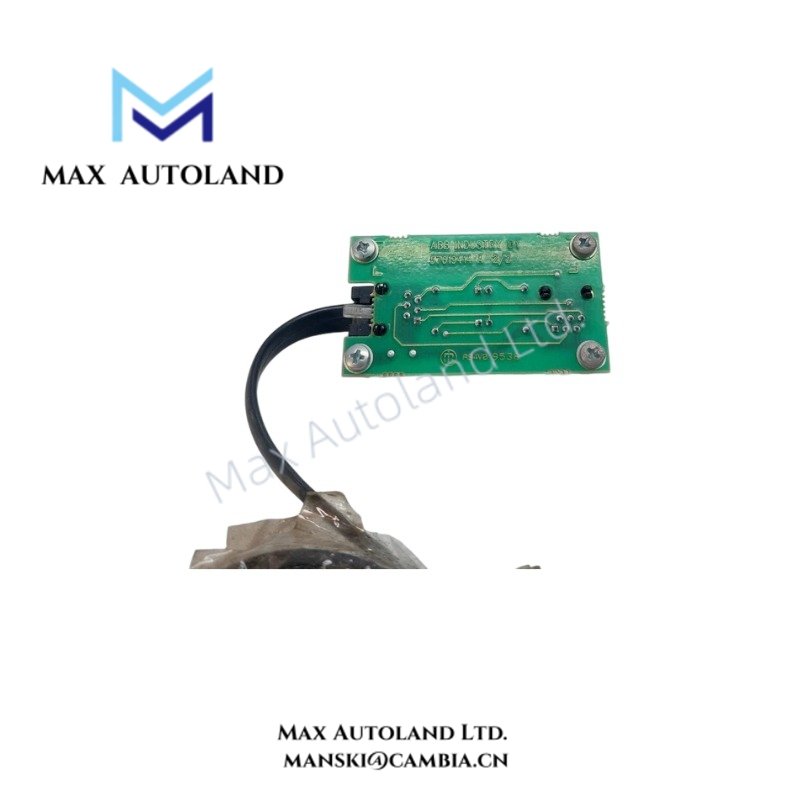

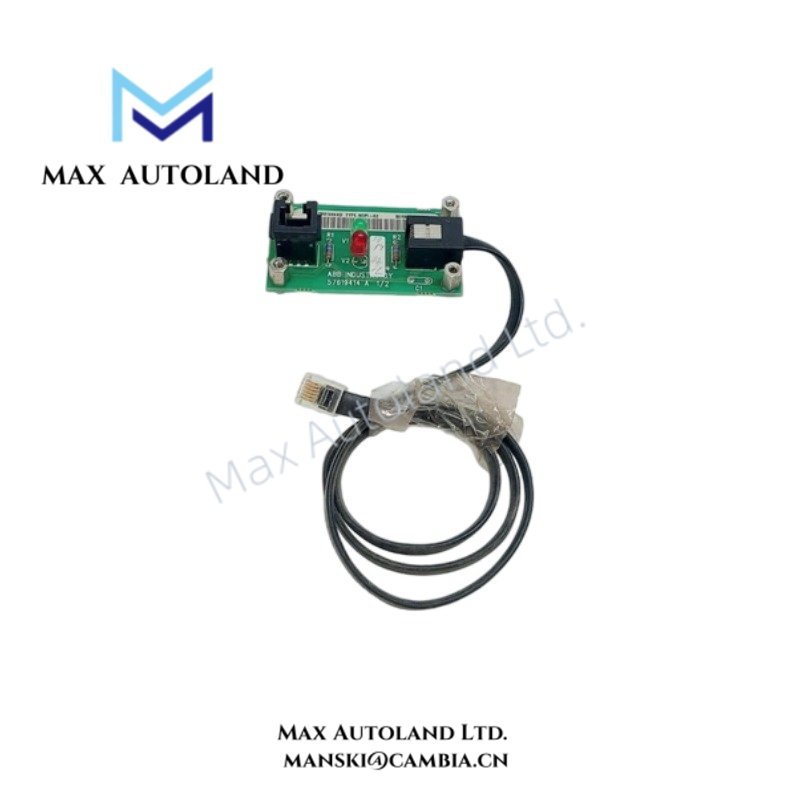

Configured for data interfacing in ABB industrial control and drive systems, the ABB 57619414 (57619414 LED Data Adapter Module) provides direct electrical and data-related execution for associated frequency inverter and VFD hardware. The available input data specifies operation with 380 V to 480 V AC systems and frequency control from 0 Hz to 400 Hz.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 57619414 |
| Product Type | LED Data Adapter Module |
| Brand | ABB |
| Manufacturer | ABB |
| Board Type | Frequency Inverters and VFDs |
| AC Input | 380 V to 480 V AC |
| Input Voltage | 380 V to 480 V |
| Frequency Control | 0 Hz to 400 Hz |
| Operating Temp | 0 deg C to 40 deg C |
| Storage Temp | -20 deg C to 70 deg C |
| Origin | Sweden |
| Weight | 0.28 kg |
| Dimensions | 5.1 x 2.5 x 5.1 cm |
ABB Drive and Control Interface Characteristics
The ABB 57619414 is associated with frequency inverter and VFD hardware operating within an industrial control environment. Its installation requires compatibility with the applicable system interface and firmware configuration.
In ABB control architectures, backplane and internal system communication depend on correct hardware recognition and firmware compatibility. Therefore, technicians should verify the installed board position, connector orientation, and supported system configuration before energizing the equipment.
The specified 380 V to 480 V AC operating environment requires appropriate electrical isolation and wiring practices. In addition, routing control and data wiring separately from high-power conductors can reduce conducted electrical interference within the drive assembly.
Frequently Asked Questions (FAQ)
Q: What AC voltage range is associated with the ABB 57619414 application?
A: The provided specification identifies an AC input and operating environment of 380 V to 480 V AC.
Q: What frequency control range is specified for the associated drive application?
A: The specified frequency control range is 0 Hz to 400 Hz.
Q: Is the power consumption of the ABB 57619414 specified?
A: No. The provided technical data does not state a specific power consumption value.
Field Installation Guidelines
Disconnect and isolate the associated equipment before installing or removing the ABB 57619414 module.
Confirm the module position and connector alignment before applying mechanical force. Do not force connectors into a board interface.
Keep control, data, and signal wiring separated from high-current power conductors where the equipment layout permits. In addition, follow the grounding and shielding practices specified for the complete ABB drive or control assembly.
Verify the system configuration and firmware compatibility after installation. Finally, inspect all connectors and mounting points before restoring power to the equipment.
