Overview

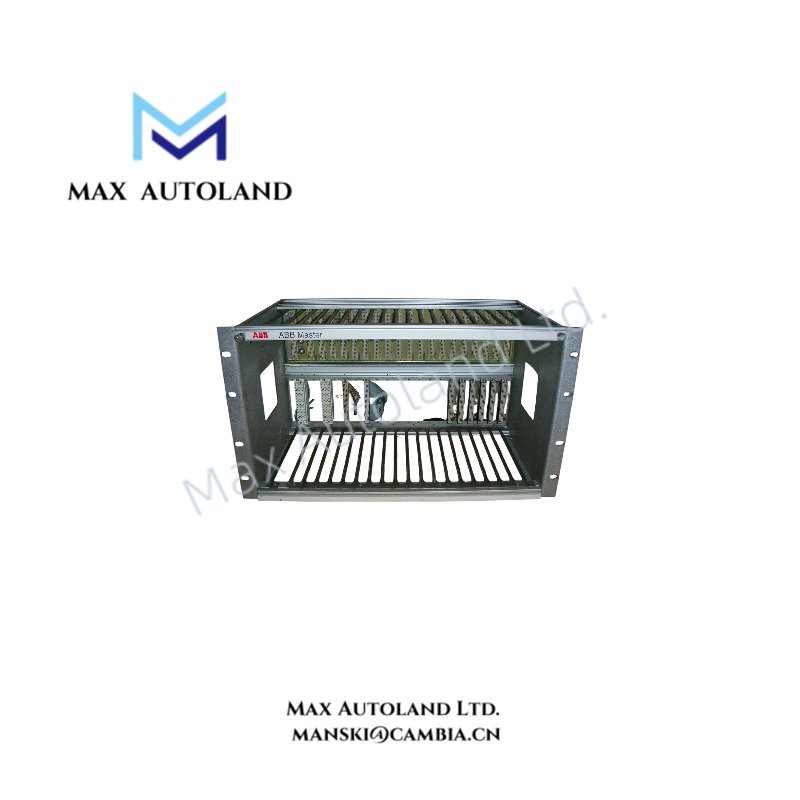

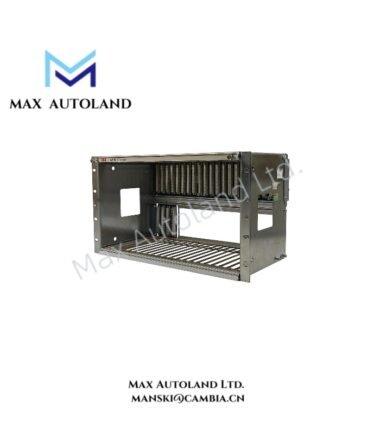

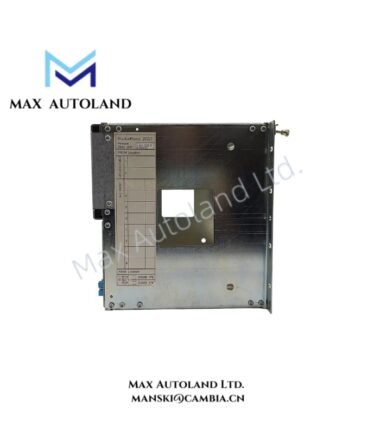

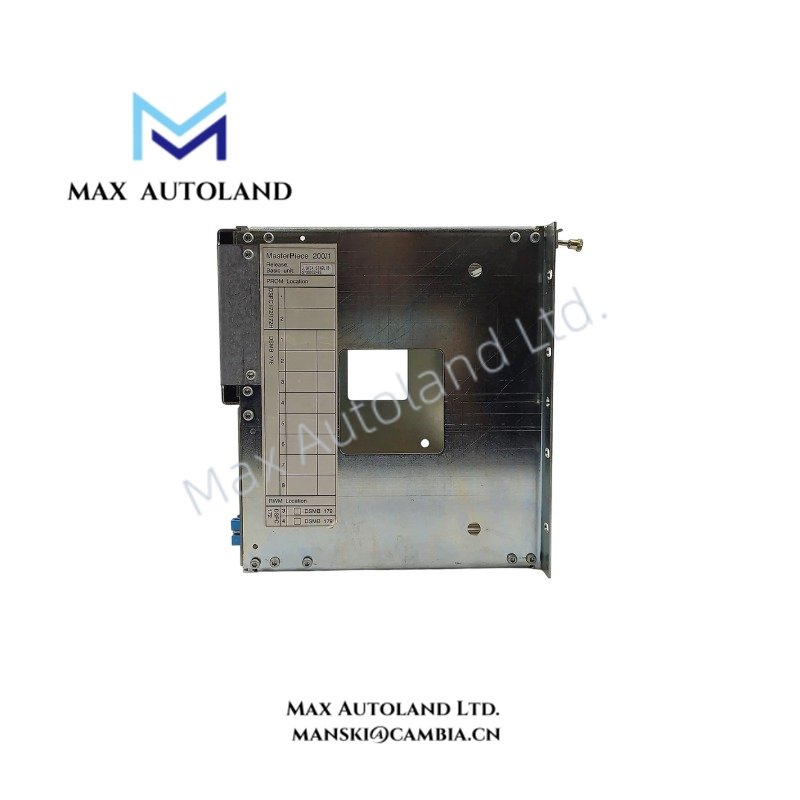

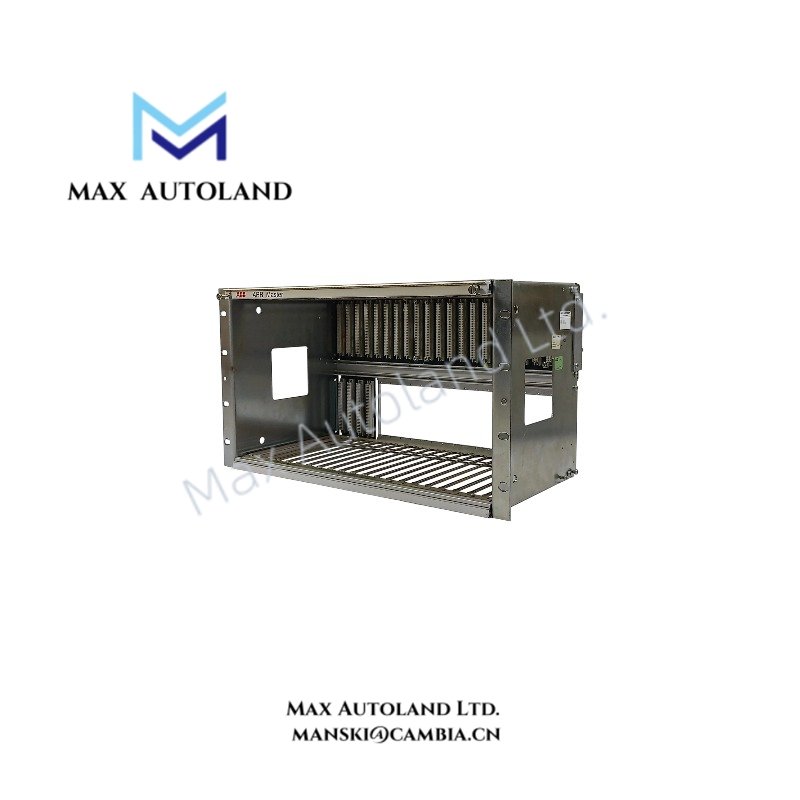

Configured for S100 I/O module mounting and rack-based signal distribution in the Advant Master Process Control System, the ABB DSRF182 57310255-AL (DSRF182 S100 I/O Equipment Frame) provides direct physical installation support for I/O modules within the controller cabinet infrastructure.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSRF182 57310255-AL |
| Brand | ABB |
| Product Type | S100 I/O Equipment Frame |
| Origin | Sweden |
| Weight | 6.55 kg |
| Dimensions | 48.2 x 34 x 26.5 cm (shipping size) |
| Operating Temp | 0 deg C to 55 deg C |
| Power Consumption | No power supply included; passive rack structure |
| Spare Model | 57310255-AL |
| System Platform | ABB Advant Master Process Control System |
| Slot Capacity | 18 slots for I/O modules |
| Rack Function | Central unit equipment frame without power supply |
| Communication Interface | Supports S100 fieldbus |
| Storage Temperature | -25 deg C to 70 deg C |
| Relative Humidity | 5% to 95%, non-condensing |
| Product Status | Discontinued by manufacturer |
ABB Industrial Control Rack and I/O Bus Integration
The ABB DSRF182 57310255-AL functions as a mechanical carrier for S100 I/O modules and provides the physical backplane structure required by Advant Master installations. Moreover, the frame supports S100 fieldbus connection architecture, allowing installed S100 I/O modules to communicate with controller systems through the existing I/O infrastructure.
The S100 I/O system uses rack-based module organization, therefore the DSRF182 provides defined module positioning and cabinet integration for process control configurations. In addition, ABB S100 I/O communication hardware supports Ethernet-based evolution paths when integrating existing S100 installations with AC 800M controller platforms.
The rack design follows ABB PLC/DCS hardware architecture requirements, including I/O density scaling through modular slot allocation and compatibility with established controller cabinet layouts. Furthermore, engineers should verify firmware and controller compatibility when migrating legacy Advant systems to newer ABB controller platforms.
Frequently Asked Questions
Q: Does the ABB DSRF182 57310255-AL include a power supply module?
A: No. The DSRF182 is an equipment frame without an integrated power supply. The rack requires compatible external power and controller system hardware.
Q: How many I/O modules can the DSRF182 rack accommodate?
A: The DSRF182 equipment frame provides 18 slots for S100 I/O modules according to the supplied technical specification.
Q: Is the DSRF182 compatible with ABB AC 800M migration systems?
A: The S100 I/O communication hardware supports Ethernet-based connection methods for evolving Advant Controller 400 Series installations toward AC 800M controller environments. Compatibility depends on the complete system configuration.
Field Installation Guidelines
- Install the DSRF182 inside a suitable control cabinet enclosure with proper mechanical support.
- Confirm rack positioning before inserting S100 I/O modules to avoid connector damage.
- Maintain correct grounding practices between cabinet earth points, rack structures, and connected equipment.
- Separate communication wiring from high-voltage power cables to reduce electrical interference.
- Verify S100 fieldbus wiring connections according to the applicable ABB system documentation.
- Inspect module seating, connector alignment, and mechanical fixing points before system energization.
