Overview

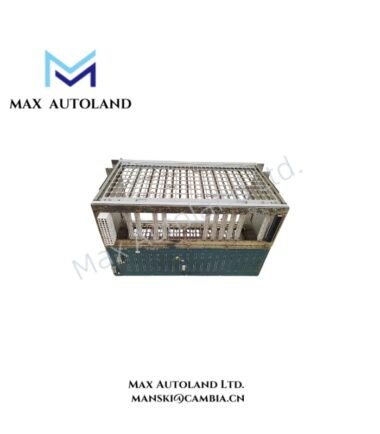

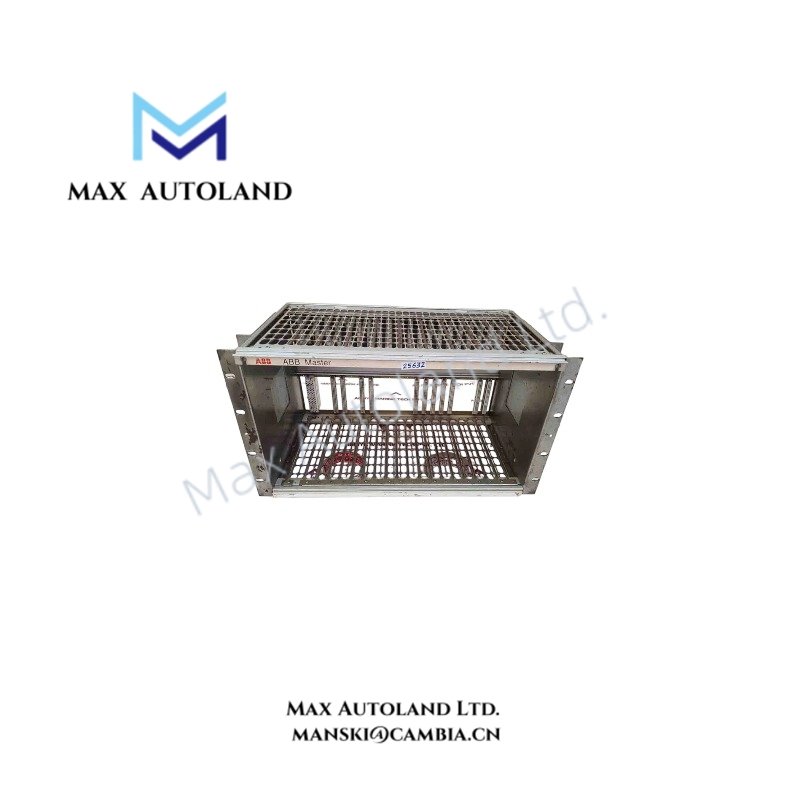

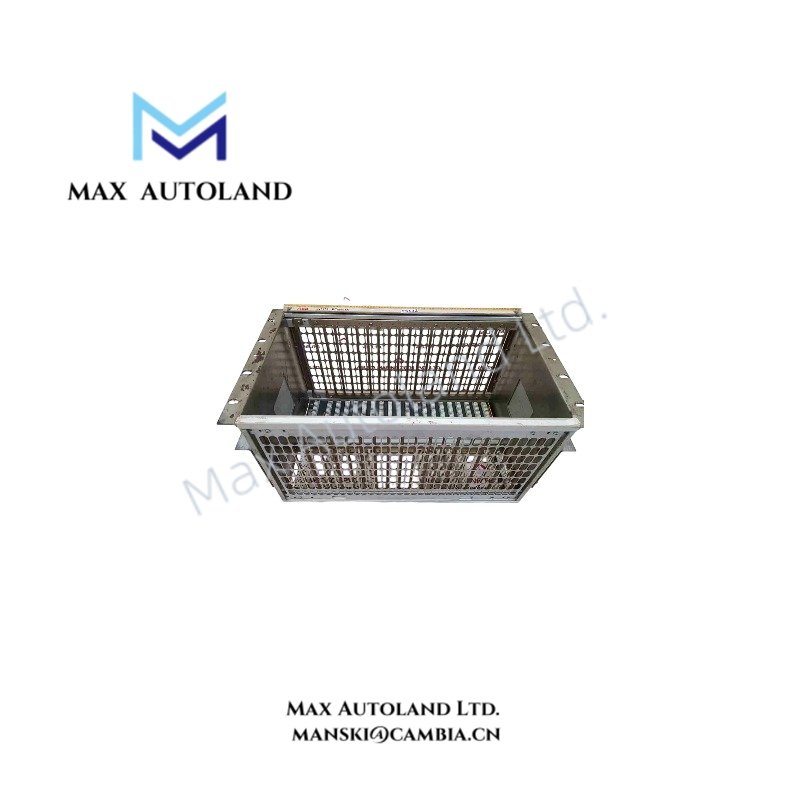

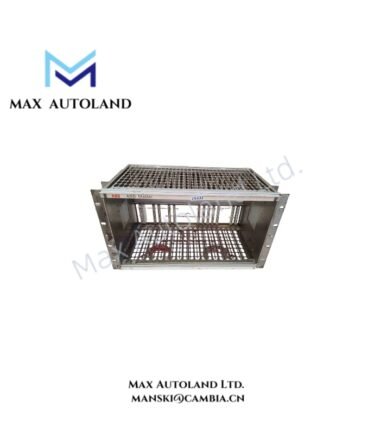

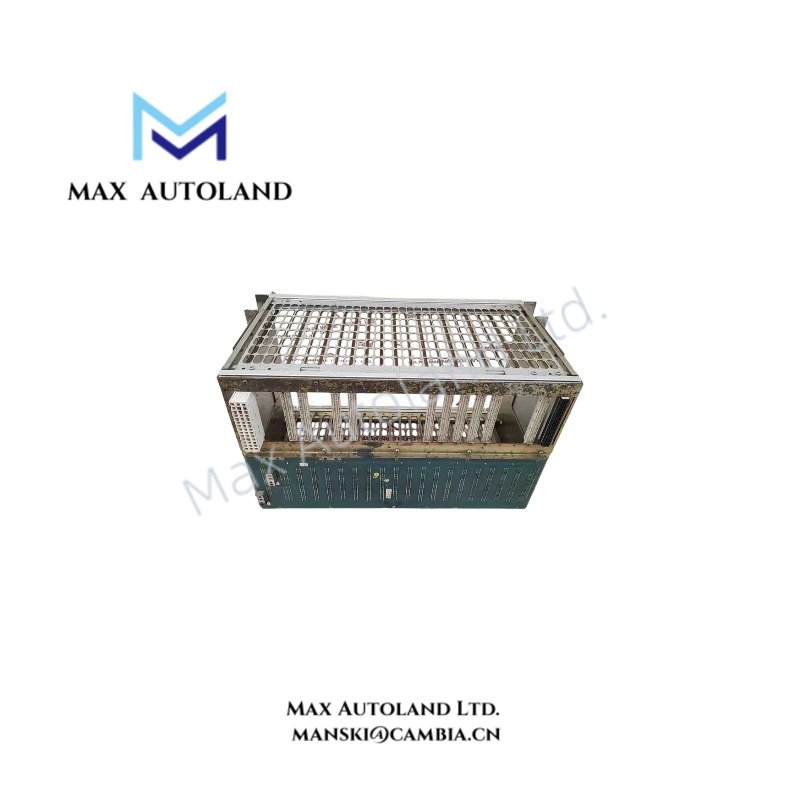

Configured for signal distribution and rack-level electrical interfacing in ABB MasterPiece 200 / Advant OCS platforms, the ABB DSRF154 57310255-F (DSRF154 Subrack Connection Board) provides direct physical connection execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSRF154 57310255-F |
| Brand | ABB |
| Origin | Sweden |
| Operating Temp | 0 deg C to +55 deg C |
| Power Consumption | Passive hardware component, no independent power consumption specified |
| System Compatibility | ABB MasterPiece 200 / Advant OCS / Advant Fieldbus systems |
| Component Type | Subrack Connection Board / Interface Board |
| Mounting Type | Rack or cabinet installation |
| Cooling Method | Natural convection |
| Storage Temperature | -40 deg C to +70 deg C |
| Relative Humidity | 5% to 95%, non-condensing |
Backplane Communication and Industrial Control Interface
The ABB DSRF154 57310255-F operates as a rack-level hardware interface component within ABB legacy automation architectures. Moreover, the module supports physical signal routing and electrical connection between installed control hardware assemblies.
For ABB control platforms, the hardware design aligns with industrial rack communication requirements, including backplane bus communication velocity management, I/O density scaling, and firmware flash compatibility considerations within supported system configurations. Therefore, installation requires verification of rack layout, connector assignment, and controller compatibility before system integration.
Frequently Asked Questions
Q: Does the ABB DSRF154 57310255-F provide independent control processing functions?
A: No. The DSRF154 functions as a passive rack-level interface component and does not operate as a standalone CPU or control processor.
Q: Does the DSRF154 require external power wiring?
A: The unit is designed as a passive connection and distribution component. External power requirements depend on the installed rack assembly and connected modules.
Q: Can the DSRF154 be installed in any ABB automation rack?
A: No. The module requires installation in compatible ABB MasterPiece 200 / Advant OCS rack configurations with matching mechanical and electrical interfaces.
Field Installation Guidelines
Install the ABB DSRF154 57310255-F according to the applicable ABB rack configuration documentation. Verify mechanical alignment before inserting the board into the rack assembly.
Maintain correct connector orientation and avoid excessive mechanical force during installation. In addition, route signal wiring separately from high-voltage cables to reduce electromagnetic interference.
Connect cable shields according to the system grounding design. Ensure cabinet grounding continuity before commissioning the connected control hardware.
Inspect connectors for contamination, oxidation, or mechanical damage before installation. Confirm rack addressing, module placement, and system configuration parameters before applying operational power.
