Overview
Specification
| Parameter | Specification / Details |
|---|---|
| Model Number | DSMC 112 |
| ABB Part Number | 57360001-HC |

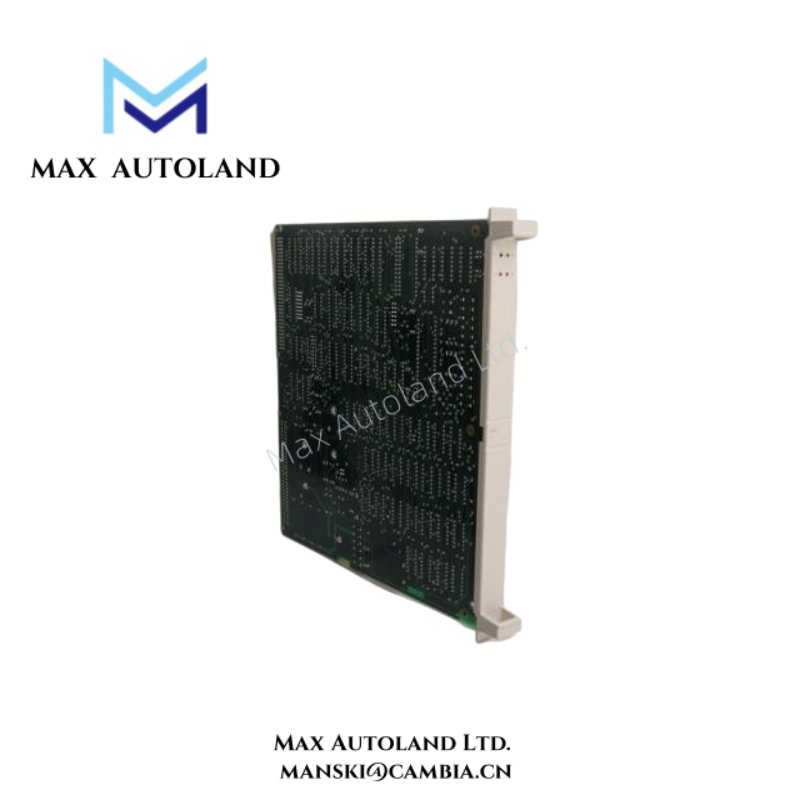

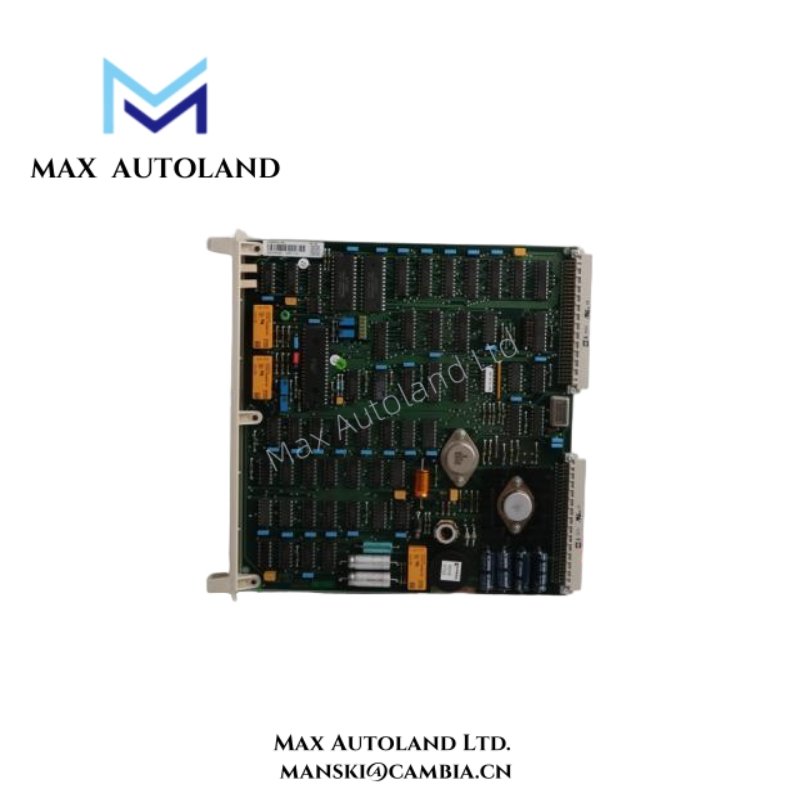

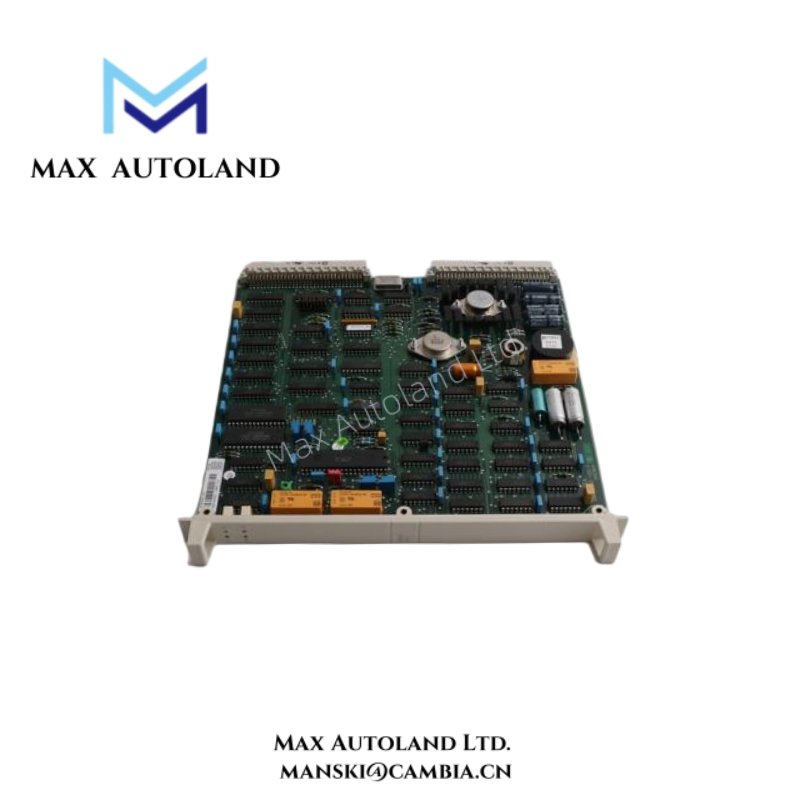

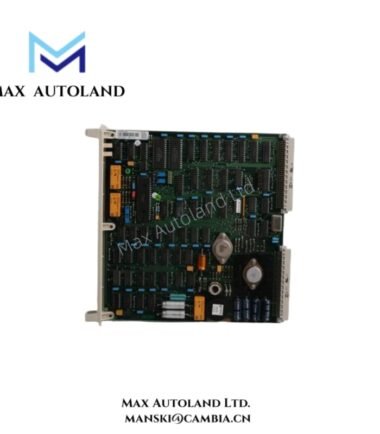

| Module Type | Master Floppy Disk Controller |
| Disk Interface | 3.5-inch or 5.25-inch floppy disks |
| Data Transfer Rate | Up to 500 Kbps (typical floppy speed) |
| Supported Formats | IBM-compatible FAT12/FAT16 |
| Power Supply Input | 24 V DC (per base unit specification) |
| Power Consumption | Approx. 8 W under typical load |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –20°C to +70°C |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Mounting / Form Factor | Rack-mounted module compatible with ABB control cabinets |
| Weight | Approx. 0.45 kg |
| Dimensions (approx.) | 234 mm × 238 mm × 27 mm |
| Compliance / Certification | ABB industrial-grade standards, CE/UL/EMC compliant |
| Application Scope | Data backup, historical process storage, and system maintenance |
FAQ
A1: Yes, it supports both disk types, enabling flexible legacy system integration.
Q2: Can this module operate in high-temperature industrial environments?
A2: Yes, it operates reliably between 0°C and 55°C, meeting standard industrial requirements.
Q3: Does the DSMC 112 support historical process data retrieval?
A3: Yes, it allows secure storage and retrieval of historical data for process monitoring.
Q4: What power supply does the module require?
A4: It requires 24 V DC power as supplied by the base unit or control cabinet.
Q5: How does this controller improve system reliability?
A5: By providing dependable floppy disk backup, it minimizes data loss and reduces downtime.
