Overview

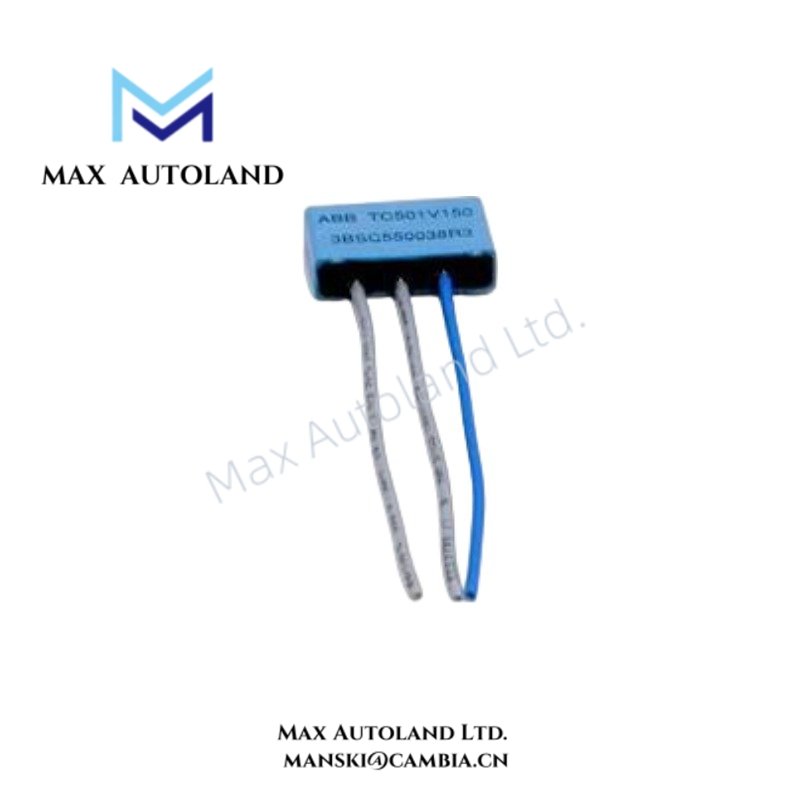

Configured for speed meter signal processing in ABB Advant Master S600 I/O systems, the ABB 3BSC550038R3 (TC501V150 Termination Unit) provides direct physical and electrical execution for speed input monitoring, direction detection, and overspeed trip signaling. The unit supports speed meter frequencies up to 50 kHz and accepts 24 VDC or 5 VDC operation. It also provides individually opto-isolated speed inputs and a solid-state output.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3BSC550038R3 |
| ABB Type Designation | TC501V150 |
| Catalog Description | TC501V150 Termination Unit, 150 Ohm |
| Brand | ABB |
| Product Type | Prefabricated Cable / Termination Unit |
| System Compatibility | ABB Advant Master S600 I/O |
| Primary Function | Speed meter input, direction detection, and overspeed trip processing |
| Maximum Input Frequency | 50 kHz |
| Input Current | +/- 13 mA |
| Operating Voltage | 24 VDC or 5 VDC |
| Direction Detection | Through second speed meter input |
| Overspeed Protection | Overspeed trip logic |
| Trip Signal Output | Solid-state 24 VDC output and dry contact 60 VDC |
| Input Isolation | Speed meter inputs individually opto-isolated |
| Output Isolation | Solid-state output individually opto-isolated |
| Resistance | 150 Ohm |
| Product Net Depth / Length | 100 mm |
| Product Net Height | 30 mm |
| Product Net Width | 200 mm |
| Dimensions | 100 mm x 30 mm x 200 mm |
| Weight | 0.005 kg |
| Cable Length | 0 m |
| RoHS Status | Following EU Directive 2011/65/EU; product exemption information applies as specified by ABB |
| WEEE Category | Product Not in WEEE Scope |
| HS Code | 853890 |
| Customs Tariff Number | 85389091 |
ABB Industrial I/O Integration Characteristics
The ABB 3BSC550038R3 TC501V150 operates within the ABB Advant Master S600 I/O architecture and supports direct integration of field speed meter signals into the control system. Its signal path handles frequencies up to 50 kHz while supporting direction detection through a second speed meter input.
In addition, the unit separates the speed meter inputs and solid-state output through individual opto-isolation. This arrangement electrically separates connected signal circuits and supports controlled signal transfer between field devices and associated I/O circuits.
For ABB industrial control platforms, correct I/O integration depends on compatible signal wiring, terminal allocation, and system configuration. Backplane bus communication and firmware compatibility remain system-level characteristics and are not specified as functions of the TC501V150 termination unit itself.
Frequently Asked Questions
Q: What type of speed signals can the ABB 3BSC550038R3 TC501V150 process?
A: The unit processes speed meter input signals up to 50 kHz with an input current specification of +/- 13 mA. The provided data specifies operation with 24 VDC or 5 VDC circuits.
Q: How does the TC501V150 detect rotational direction?
A: The ABB TC501V150 detects direction through a second speed meter input. The associated input wiring and system configuration determine the final direction processing arrangement.
Q: What overspeed outputs are available?
A: The unit provides overspeed trip logic with a trip signal output through a solid-state 24 VDC output and a dry contact rated for 60 VDC. The speed meter inputs and solid-state output are individually opto-isolated.
Field Installation Guidelines
Install the ABB 3BSC550038R3 TC501V150 according to the applicable ABB S600 I/O cabinet and termination arrangement.
- Verify the product identification and TC501V150 designation before installation.
- Isolate external field power before connecting or disconnecting speed meter wiring.
- Route speed signal cables separately from high-current switching and motor power conductors where practical.
- Follow the applicable system grounding and cable shield termination requirements for speed measurement circuits.
- Confirm the input voltage selection matches the connected 24 VDC or 5 VDC field circuit.
- Verify both speed meter inputs when the application uses direction detection.
- Check solid-state and dry contact wiring before enabling overspeed trip logic.
- Do not exceed the specified 50 kHz maximum speed meter input frequency.
- Inspect terminal connections and associated I/O wiring before system commissioning.
