Overview

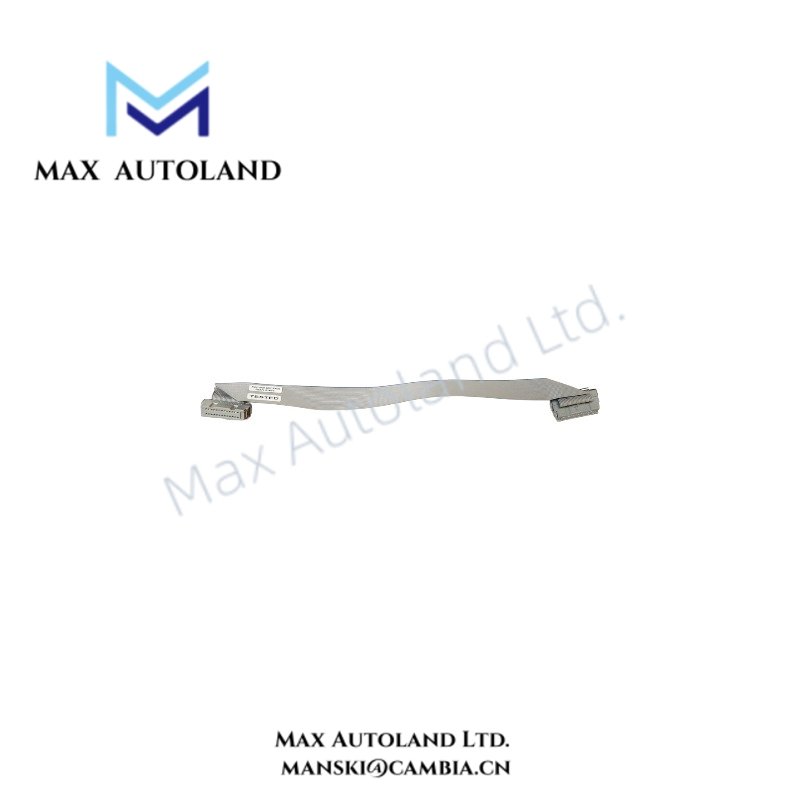

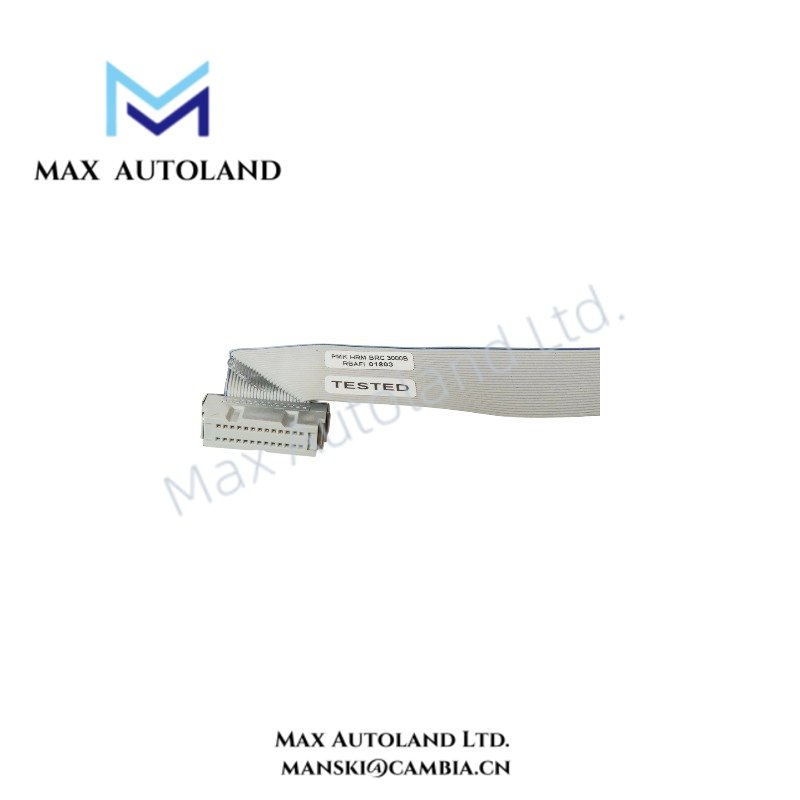

Configured for NPM22 redundancy interconnection in ABB control hardware assemblies, the ABB PMKHRMBRC3000B (PMKHRMBRC3000B Cable) provides direct physical connection for vertical mounting of NPM22 modules through a prefabricated 20 cm redundancy cable assembly.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PMKHRMBRC3000B |
| Brand | ABB |
| Origin | Not specified |
| Weight | 0.1 kg |
| Dimensions | 200 mm x 20 mm x 3 mm |
| Power Consumption | Passive cable component; no power consumption |
| Product Type | Prefabricated Cable |
| Cable Function | Redundancy Cable for NPM22 |
| Cable Length | 200 mm |
| Mounting Application | NPM22 vertical mounting configuration |

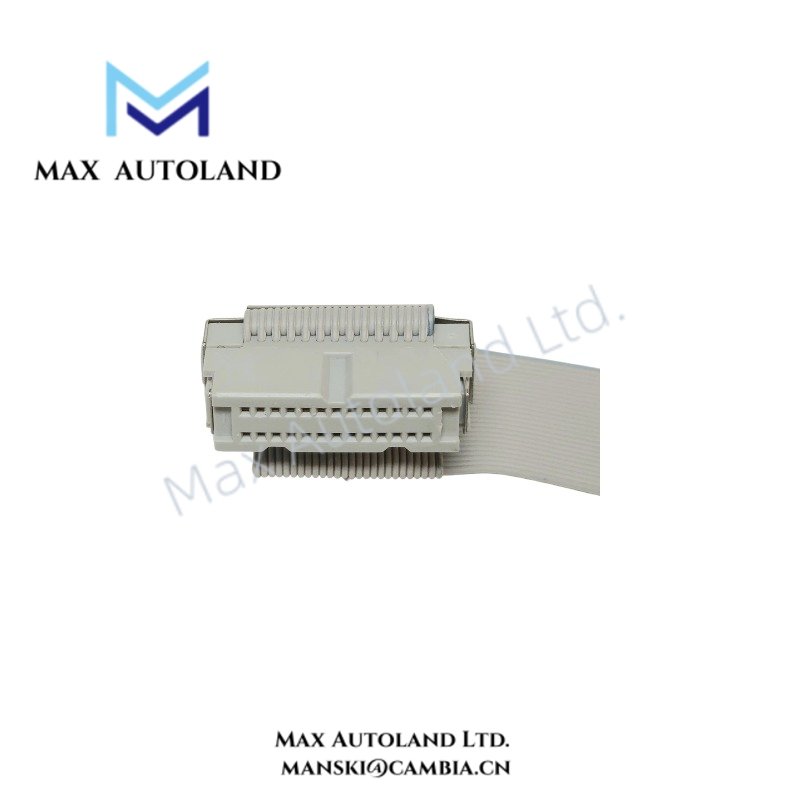

| Connector Type | Fitted electrical cable assembly; connector details not specified |
| HS Code | 85444290 |
Industrial Control Interconnection and Firmware Compatibility
The ABB PMKHRMBRC3000B functions as a passive hardware link within ABB industrial control configurations. Therefore, it does not execute firmware operations or provide active communication processing. However, the cable supports the physical architecture required for NPM22 redundancy arrangements.
ABB control platforms commonly depend on structured module placement and defined interconnection paths. This cable maintains the required physical connection between vertically mounted NPM22 units, while the active control functions remain managed by the associated processor and I/O hardware.
Frequently Asked Questions (FAQ)
Q: What is the primary function of the ABB PMKHRMBRC3000B?
A: The PMKHRMBRC3000B is a prefabricated redundancy cable designed for connecting NPM22 modules during vertical mounting configurations.
Q: Does the PMKHRMBRC3000B require firmware configuration?
A: No. The PMKHRMBRC3000B is a passive cable assembly and does not contain firmware, processing electronics, or configurable parameters.
Q: Can the PMKHRMBRC3000B be used as a general-purpose control cable?
A: No. The cable is specified for NPM22 redundancy mounting applications and should be installed according to ABB system hardware requirements.
Field Installation Guidelines
- Install the PMKHRMBRC3000B only in the designated NPM22 vertical mounting arrangement.
- Confirm cable routing before securing the connected modules to prevent mechanical stress on the cable assembly.
- Maintain separation from high-current power conductors and sources of electromagnetic interference where applicable.
- Ensure connectors are fully seated before system commissioning.
- Avoid excessive bending, twisting, or pulling forces that may affect internal conductors or connection integrity.
- Follow ABB hardware installation documentation for the associated NPM22 configuration.
