Overview

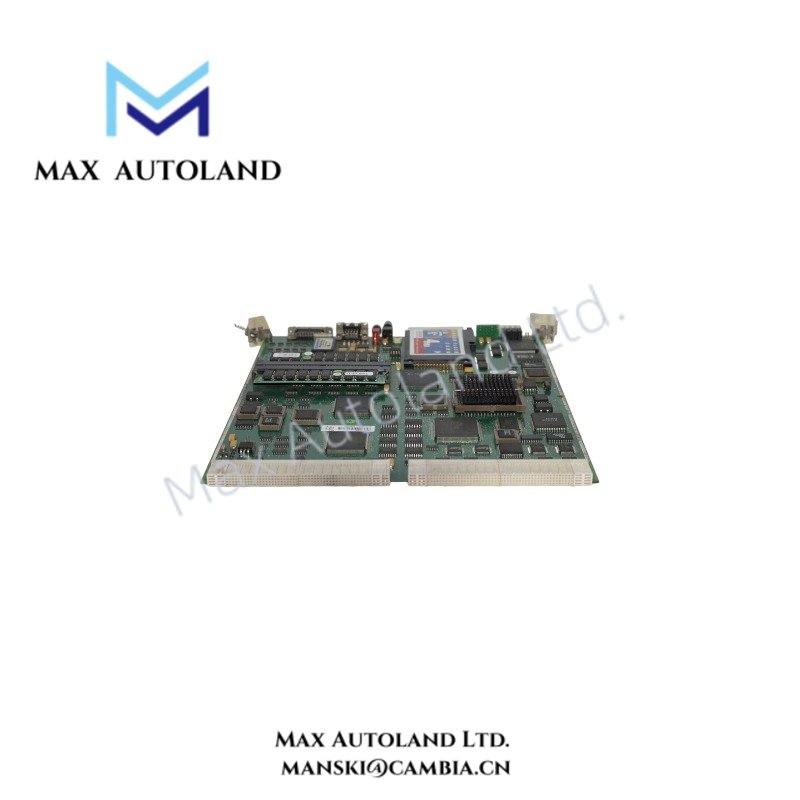

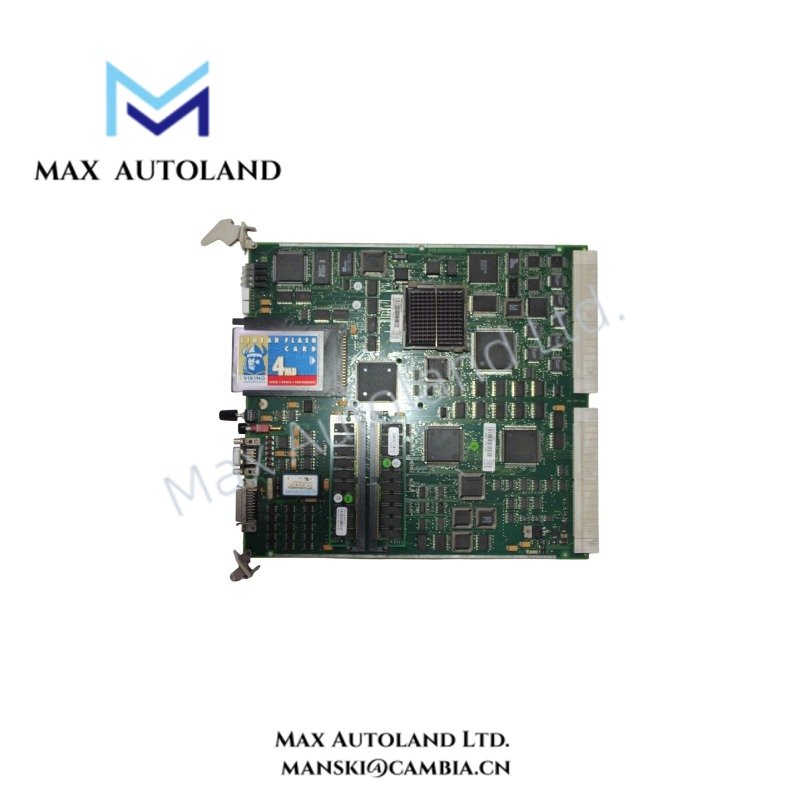

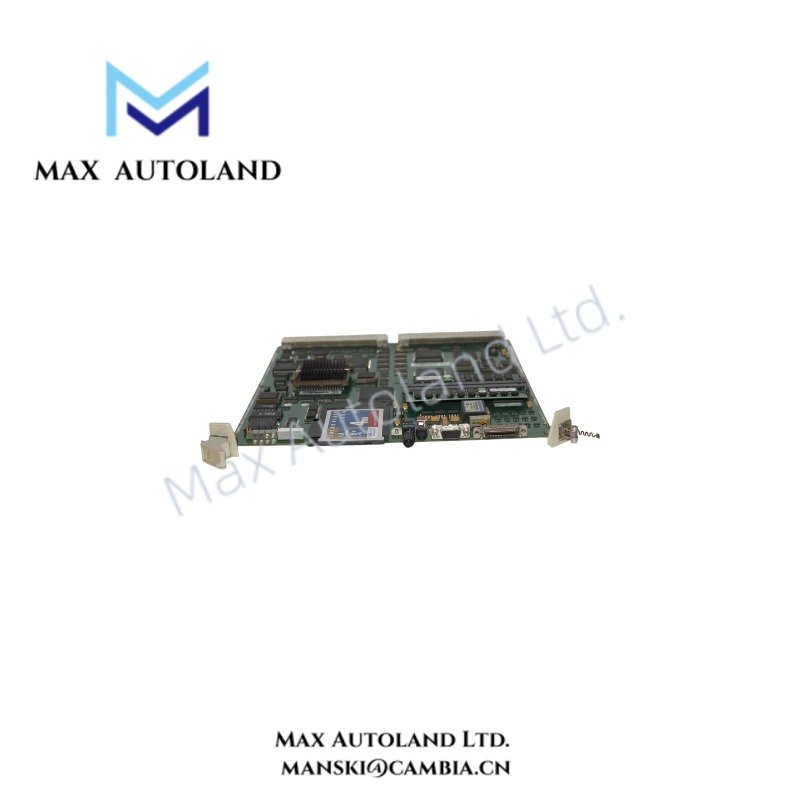

The ABB 3BSE011180R1, also cataloged as the PM511V08 Processor Module, operates as a dedicated hardware component for CPU execution, memory management, and controller communication within ABB Advant Controller 800xA automation system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3BSE011180R1 / PM511V08 |
| Brand | ABB |
| Product Type | Processor Module |
| System Platform | ABB Advant Controller 800xA / AC 800M Controller Family |
| Origin | Sweden |
| Weight | 0.76 kg |
| Processor Function | Central processing unit module for controller execution tasks |
| Memory Capacity | 8 Mbyte dynamic RAM with ECC |
| Memory Interface | PCMCIA slot for flash memory card |
| Included Memory Module | SIMM memory module, 2 pcs 3BSC120004R2 |
| Product Type Classification | Central Unit |
| Exchange Number | EXC3BSE011180R1 |
| Replacement Product ID | 3BSE011181R1 |
| Previous Product ID | 3BSE016437R1 |
| Mounting Format | Spare part module |
Industrial Control Firmware and Backplane Communication
The PM511V08 processor module executes controller application processing and exchanges data through the AC 800M controller architecture. The module uses ECC-protected dynamic RAM for program execution and data handling, while the PCMCIA interface supports external flash memory media for application storage and firmware-related operations.
Within ABB industrial control platforms, processor modules require coordinated firmware compatibility with controller hardware revisions. The PM511V08 supports controlled firmware flash compatibility procedures and maintains communication through the controller backplane bus structure. System configuration must match the installed processor revision to maintain application execution consistency.
The module supports industrial control architecture requirements including controller task execution, I/O communication management, and system-level diagnostic processing.
Frequently Asked Questions
Q: Does the PM511V08 support ECC memory protection?
A: Yes. The PM511V08 includes 8 Mbyte dynamic RAM with ECC protection for controller program execution and operational data storage.
Q: Does the processor module include external memory support?
A: Yes. The module provides a PCMCIA slot for flash memory card installation.
Q: Can the PM511V08 be directly replaced by another processor module?
A: Replacement requires verification of controller firmware compatibility, hardware revision, and application configuration before installation.
Field Installation Guidelines
- Install the PM511V08 only in the designated ABB controller hardware rack and verify mechanical alignment before insertion.
- Confirm that the controller power supply is isolated before removing or installing the processor module.
- Handle the module using standard ESD protection procedures to prevent damage to electronic components.
- Verify backplane connector condition and ensure clean electrical contact before operation.
- Check firmware compatibility between the processor module and the existing controller configuration.
- Route communication and power wiring separately from high-voltage switching circuits to reduce electrical interference.
- Ensure grounding and shielding practices follow the requirements of the installed ABB control system.
