Overview

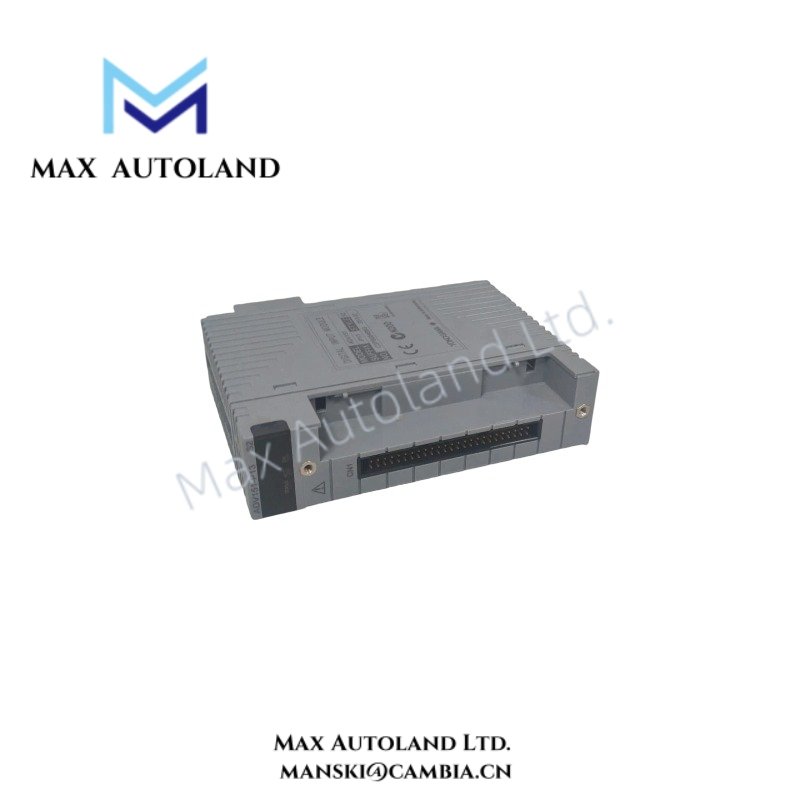

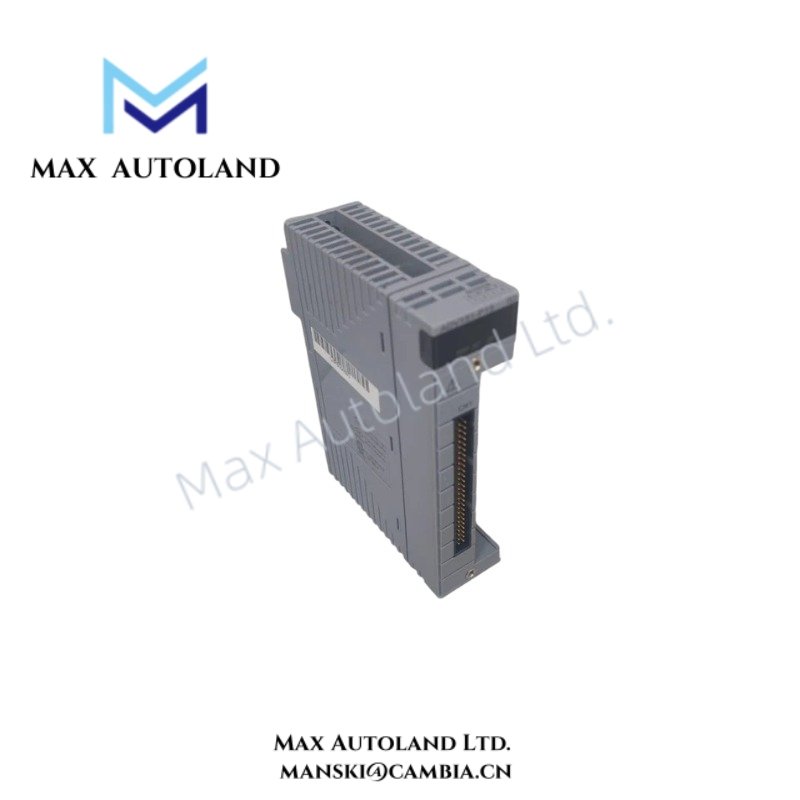

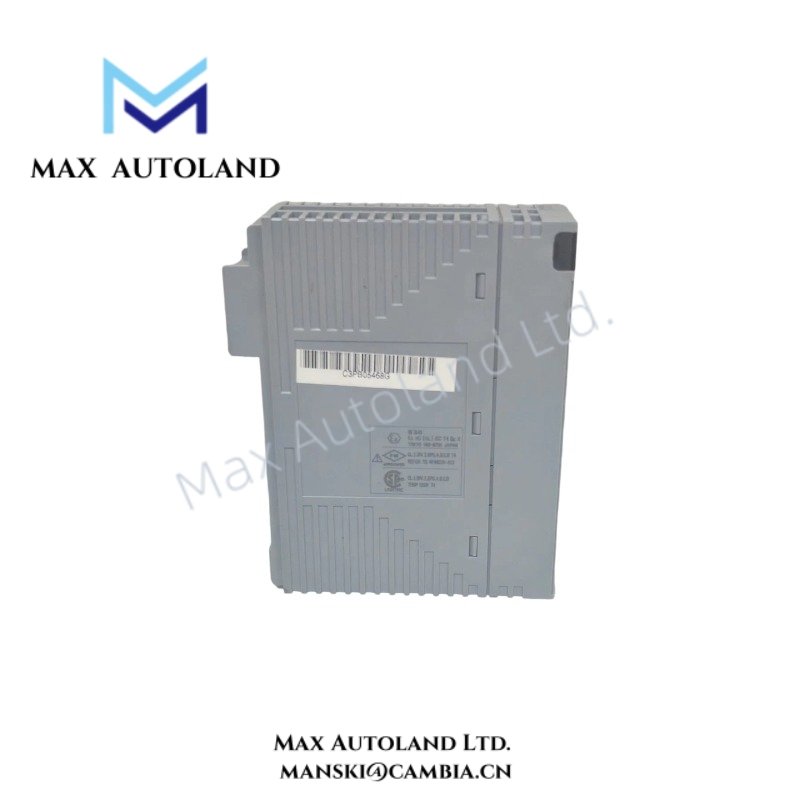

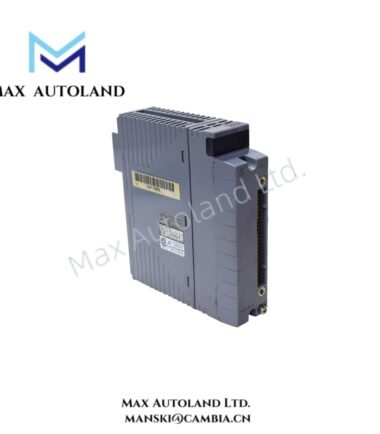

The Yokogawa ADV151-P53, also cataloged as the ADV151 Digital Input Module, operates as a dedicated hardware component for acquiring 24 VDC ON/OFF field signals within Yokogawa CENTUM VP Distributed Control Systems. The module processes 32 digital input channels with electrical isolation between field circuits and system logic.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151-P53 |
| Brand | Yokogawa |
| Product Type | Digital Input Module |
| Weight | Approx. 0.30 kg |
| Dimensions | Not specified in provided data |
| Operating Temp | -20 deg C to +70 deg C |
| Power Consumption | 500 mA maximum from 5 VDC backplane supply |
| Input Channels | 32 channels, sink/source type |
| Rated Input Voltage | 24 VDC |
| Input ON Voltage Range | 18 to 26.4 VDC |
| Input OFF Voltage | 5.0 VDC or less |
| Input Current | Approx. 4.1 mA per channel at rated voltage |
| Maximum Allowable Input Voltage | 30.0 VDC |
| Input Response Time | 8 ms or less for status input |
| Pushbutton Function | Minimum ON detection time: 20 ms; maximum frequency: 25 Hz |
| Isolation Voltage | 2,000 VAC between input signals and system logic; 500 VAC between common groups |
| Environmental Compliance | ISA Standard G3 corrosive gas resistance |
| Explosion Protection | None |
| Connection Type | KS cable interface adapter, such as ATD5A-00 |
Yokogawa DCS Signal Isolation and Input Processing
The ADV151-P53 applies channel isolation techniques to separate field input circuits from CENTUM VP system logic. Therefore, the module reduces signal interference between external devices and controller processing units.
The module accepts 24 VDC discrete signals from switches, sensors, and contact devices. In addition, its optical isolation structure provides electrical separation between input groups and the internal control system.
The Yokogawa digital I/O architecture supports direct connection through KS cable interface adapters. Furthermore, the module design allows installation in environments requiring ISA Standard G3 corrosive gas resistance.
Frequently Asked Questions
Q: Does the ADV151-P53 support pushbutton input processing?
A: Yes. The module supports pushbutton functions with a minimum ON detection time of 20 ms and a maximum input frequency of 25 Hz.
Q: How does the module isolate field signals from system logic?
A: The ADV151-P53 uses optical isolation, providing 2,000 VAC isolation between input signals and system logic, with 500 VAC isolation between common groups.
Q: What backplane power requirement does the module have?
A: The module requires a 5 VDC backplane supply and consumes a maximum internal current of 500 mA.
Field Installation Guidelines
- Install the ADV151-P53 in the designated Yokogawa I/O mounting location according to the CENTUM VP hardware configuration manual.
- Verify the KS cable interface adapter connection before applying field power.
- Separate digital input wiring from high-voltage power cables to reduce electrical noise coupling.
- Connect cable shields according to the site grounding standard and avoid multiple grounding points that may create ground loops.
- Confirm field device voltage levels remain within the specified 24 VDC input range before commissioning.
- Check channel assignments and input polarity during system configuration and loop testing.
