Overview
The Honeywell FC-USI-0002 is a universal safety interface module in the FSC / Safety Manager series. It bridges communication between the controller and field devices, ensuring efficient exchange of safety-critical signals. Its compact footprint and robust design maintain system integrity in harsh industrial environments.
Moreover, the FC-USI-0002 supports multiple international safety protocols and integrates seamlessly with Honeywell Safety Manager configuration. Its standard rack-compatible dimensions allow installation without compromising space.
The USI-0002 communication module handles Ethernet and Serial communication with external devices, e.g. Experion™ PKS and Safety Builder. It is located in the Controller chassis (see section CPCHAS-0001 or CPCHAS-0002 or CPCHAS-0003).

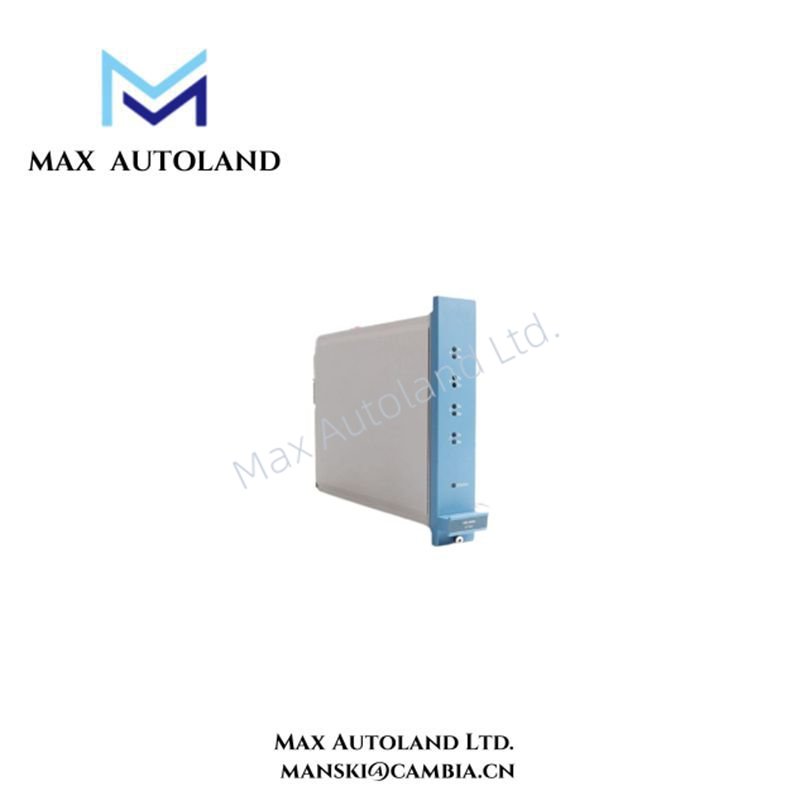

The below figure shows the front view of the USI-0002 module.
Specification
| General | Type number1,2: | FX-USI-0002 |
| Operating temperature: | -5℃-+70℃(+23°F-+158°F) | |
| Storage temperature: | -40℃-+85℃(-40F-+185°F) | |
| Relative humidity: | 10-95%(non condensing) | |
| Approvals: | CE,TUV,UL,CSA,FM | |
| Power | 5V supply voltage: | 5V DC±5% |
| 5Vsupply current: | max 1.2A | |
| Physical | Dimensions: | 176×35.2×212 mm(H×W× D) |
| 6.93×1.4×8.35 in(H×W×D) | ||
| Weight | 0.7 kg |
Manual/Datasheet PDF
