Overview

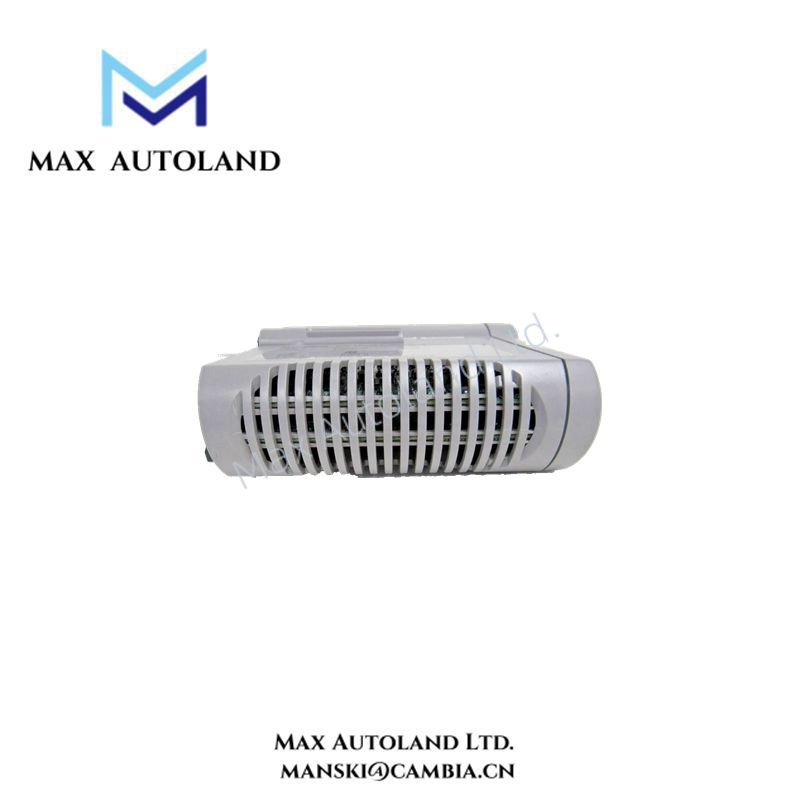

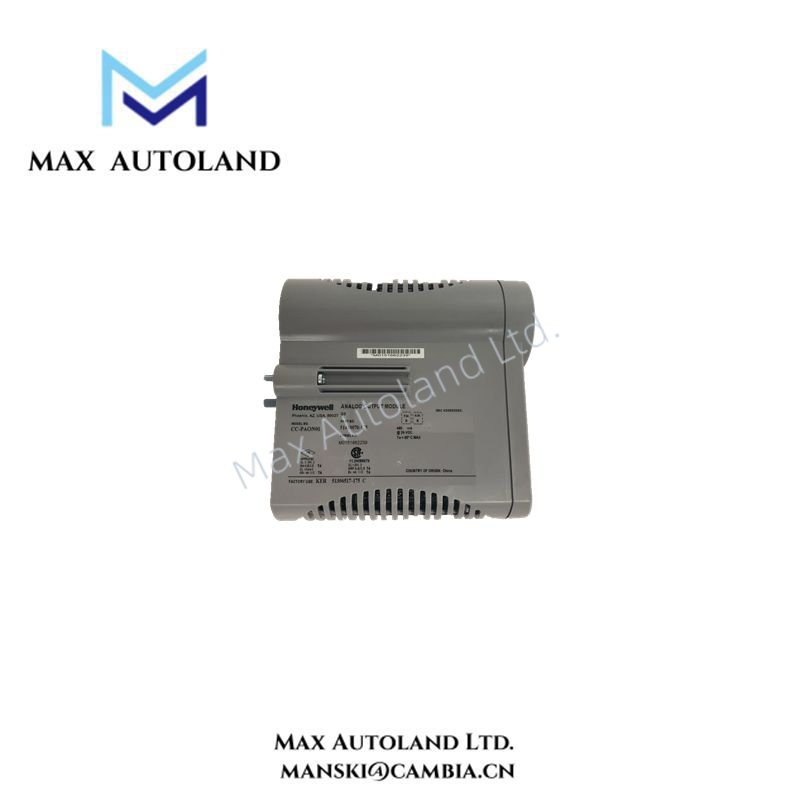

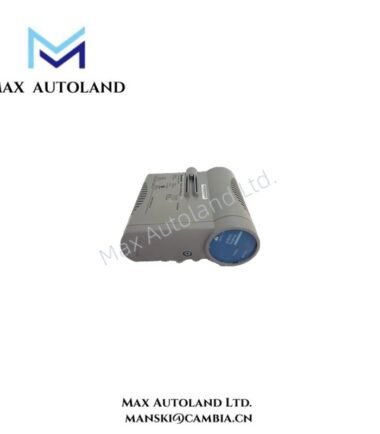

The Honeywell CC-PCF901 is a 9-port Fault Tolerant Ethernet (FTE) Control Firewall Module designed for Honeywell’s Series C control systems. This module provides secure and reliable communication between control systems in critical infrastructure applications, such as oil and gas, power generation, and chemical processing industries.
The nine-port, Control Firewall (CF9) serves as the Fault Tolerant Ethernet (FTE) communications center for a given Series C control network. It consists of a Control Firewall module that plugs into its associated CF9 input/output termination assembly (IOTA) as shown in the following figure.
The CF9 provides eight ports for FTE connections to C300s and Series C FIMs within a Series C cabinet as well as FTE Bridge modules (FTEB) in a Series A Chassis I/O chassis. It has a ninth port for an uplink connection to the supervisory FTE network and level 2 control area. It provides network security by
- Rejecting all Ethernet messages not needed for control,
- Giving priority to traffic on downlink ports over ingress traffic on the uplink port, if the fabric becomes saturated, and
- Allowing only valid C300-compliant messages to pass on to the C300 domain.
Specification
| Attribute | Specification |
|---|---|
| Model Number | CC-PCF901 |
| Manufacturer | Honeywell |
| Series | Series C |
| Ports | 9 (8 data ports + 1 uplink port) |
| Mounting | Mounts on CF9 IOTA |
| Power Supply | 24 VDC, 0.112 A |
| Environmental Protection | Coated printed wiring boards (CC/DC prefix) |
| Weight | Approximately 0.45 kg (1 lb) |
| Dimensions | 190 mm x 69 mm x 23 mm (7.5 in x 2.7 in x 0.9 in) |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Vibration | 5 g peak at 20 to 500 Hz |
| Shock | 30 g peak for 11 ms |
