Overview

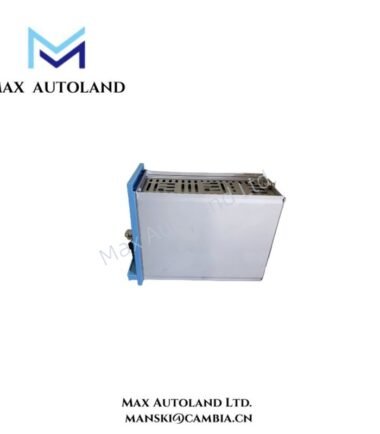

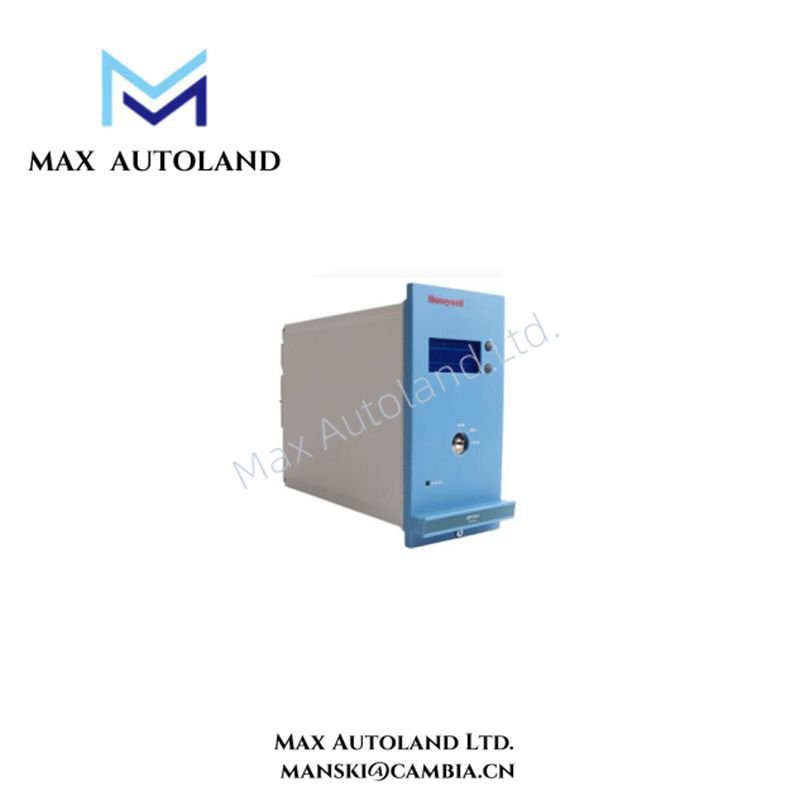

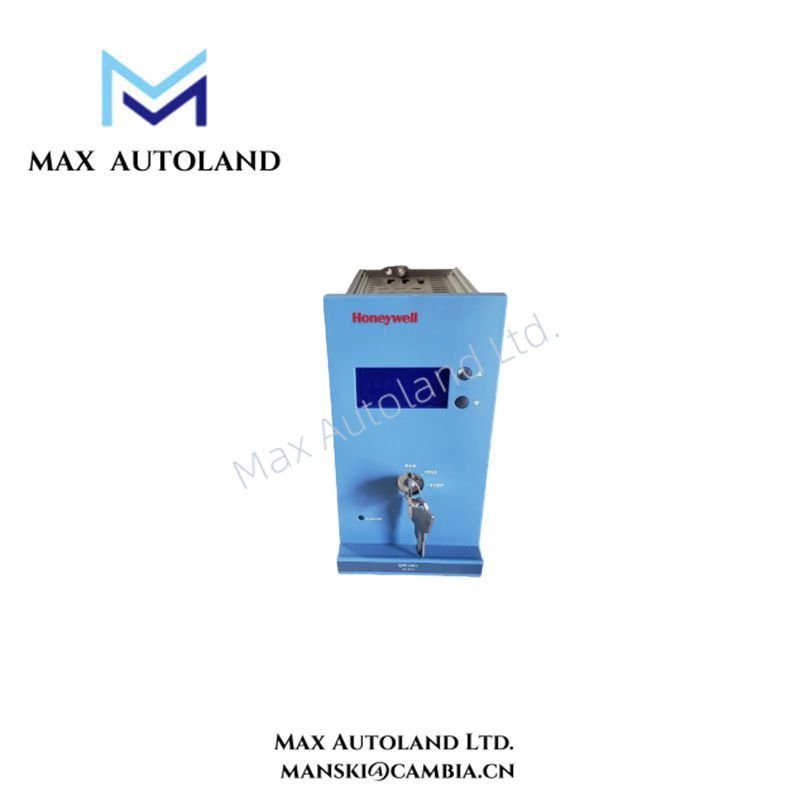

The Honeywell FC-QPP-0002 belongs to the Safety Manager (FSC) series and functions as a high-performance quad processor pack. It integrates four advanced CPUs that operate simultaneously to execute multiple safety-critical processes. By offering fast diagnostic feedback and redundant communication, it helps maintain system integrity in demanding industrial environments.
The Quad Processor Pack (QPP-0002) is the second generation (enhanced performance) processing module of Safety Manager and is located in the Controller chassis (see section CPCHAS-0001 or CPCHAS-0002 or CPCHAS-0003).
The QPP-0002 is backwards compatible with, and a one-on-one spare part for the QPP-0001, when installed in Safety Managers running R121 firmware or higher. .
Specification
| General | Type number: | FC-QPP-0002 |
| Operating temperature: | ||
| ·outside module temperature: | -5℃-+70℃(+23°F-+158°F) | |
| ·inside module temperature: | -5C-+85℃(+23°F-+185°F) | |
| Storage temperature: | -40℃-+85℃(-40°F-+185°F) | |
| Relative humidity: | 10-95%(non condensing) | |
| Approvals: | CE,UL,CSA,TUV,FM | |
| Power | 24V supply voltage: | 24V DC-15%-+30% |
| 24V supply current: | max.25 mA | |
| 5V supply voltage: | 5V DC±5% | |
| 5V supply current: | max 1.2A | |
| +24V_sd | Output supply voltage: | 15-31VDC |
| Output resistance: | approx.1.1kΩ | |
| Short circuit proof: | continuous | |
| SD input | Voltage(high): | 15-32V DC |
| Voltage(low): | <4V(reverse polarity protected) | |
| Input current: | approx.8mA at 24VDC | |
| WDout output | Output current: | 750mA per output |
| Physical | Dimensions:(H×W×D) | 176×88.5×212 mm |
| 6.93×3.48×8.35 in | ||
| Weight: | 1,3 kg |
Manual/Datasheet PDF
