Overview

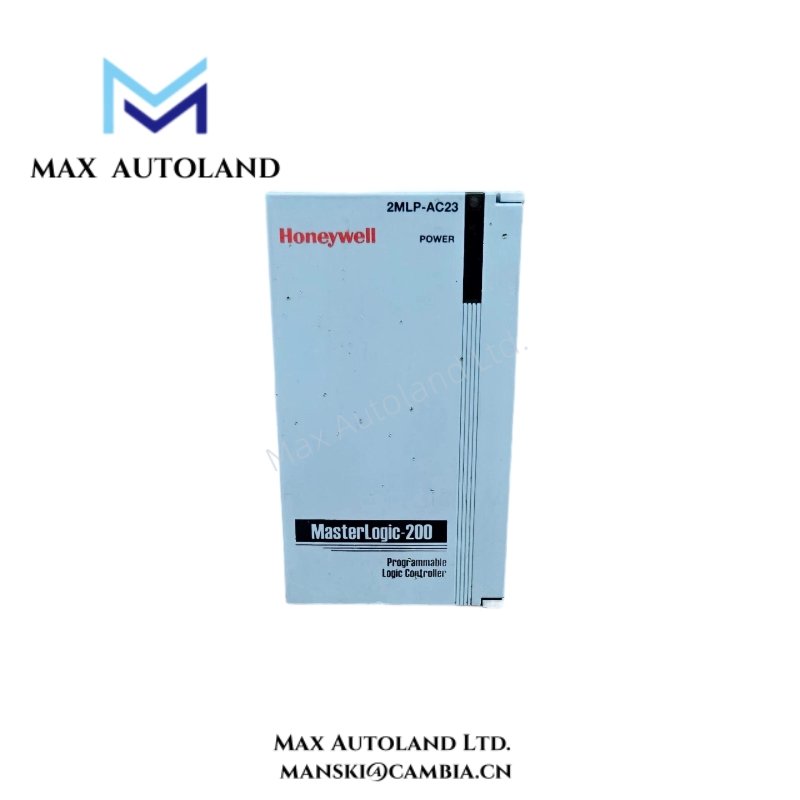

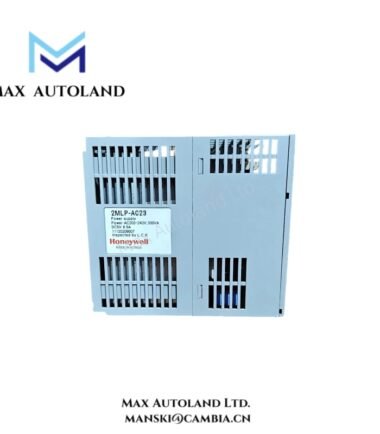

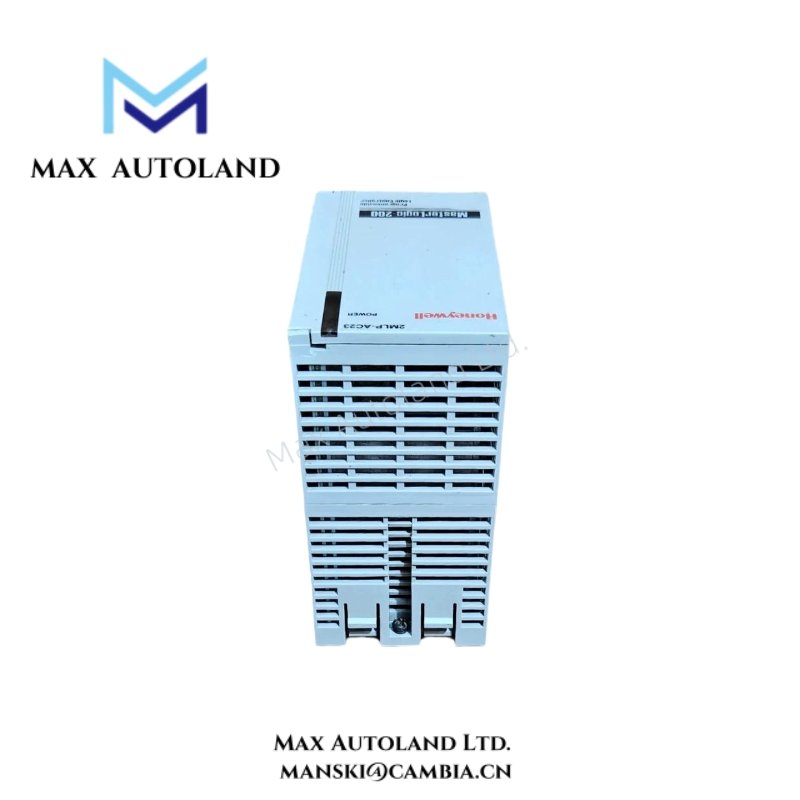

The Honeywell 2MLP-AC23 MasterLogic-200 Power Supply Module provides stable and reliable power for industrial automation systems. Therefore, it ensures consistent operation of PLC modules and connected devices, even under fluctuating line conditions. In addition, its compact design simplifies integration into existing MasterLogic-200 setups, reducing installation time and overall system complexity. Moreover, engineers can deploy this power module in both new installations and retrofit projects, enhancing system reliability without extensive modifications.
Specification
| Parameter | Specification / Description |
|---|---|
| Brand | Honeywell |
| Model | 2MLP‑AC23 |
| Module Type | MasterLogic‑200 AC Power Supply Module |
| Rated Input Voltage | AC 200 V – AC 240 V |
| Input Voltage Range | AC 170 V – AC 264 V |
| Input Frequency | 50 / 60 Hz (47 – 63 Hz) |
| Inrush Current | ≤ 20 A (peak) |
| Efficiency | ≥ 65% |
| Input Protection | Built‑in fuse, slow-blow type |
| Allowed Instantaneous Interruption | ≤ 10 ms |
| Output 1 Voltage | DC 5 V ±2% |
| Output 1 Current | 8.5 A |
| Overcurrent Protection (Output 1) | ≥ 9.0 A |
| Overvoltage Protection (Output 1) | 5.5 V – 6.5 V |
| Relay Output (“RUN” Contact) | DC 24 V, 0.5 A |
| Minimum Switching Load (Relay) | DC 5 V, 1 mA |
| Response Time (On/Off) | ≤ 10 ms (Off → On) / ≤ 12 ms (On → Off) |
| Voltage Indicator | LED illuminates when output voltage is normal |
| Cable Specification | 0.75 – 2 mm² |
| Terminal Type | RAV 1.25‑3.5, RAV 2‑3.5 |
| Operating Temperature | Refer to Honeywell official manual |
| Certifications / Standards | UL, CE, RoHS |
| Weight | Approx. 0.6 kg |
FAQ
- What devices are compatible with the 2MLP-AC23 power supply module?
It is designed for Honeywell MasterLogic-200 PLC modules and associated I/O devices. - Can it be installed in retrofit projects?
Yes, its compact design allows easy integration into existing MasterLogic-200 systems. - What is the operating temperature range?
The module operates reliably from 0°C to 60°C. - Does it provide surge protection?
Yes, it safeguards PLCs and connected modules against voltage spikes. - How is the module mounted?
It supports DIN rail and panel mounting for flexible installation options.
