Overview

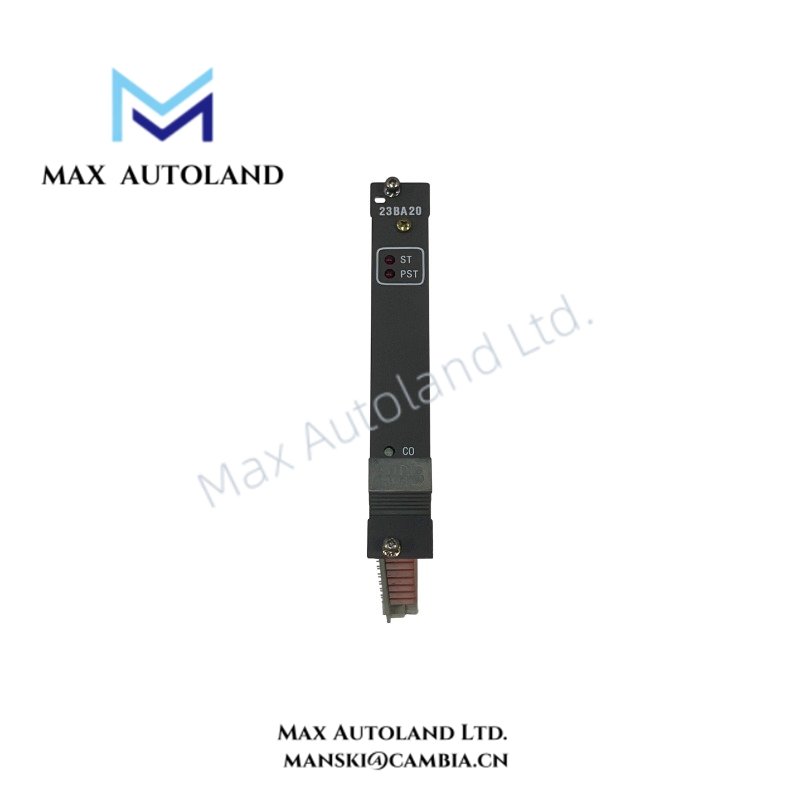

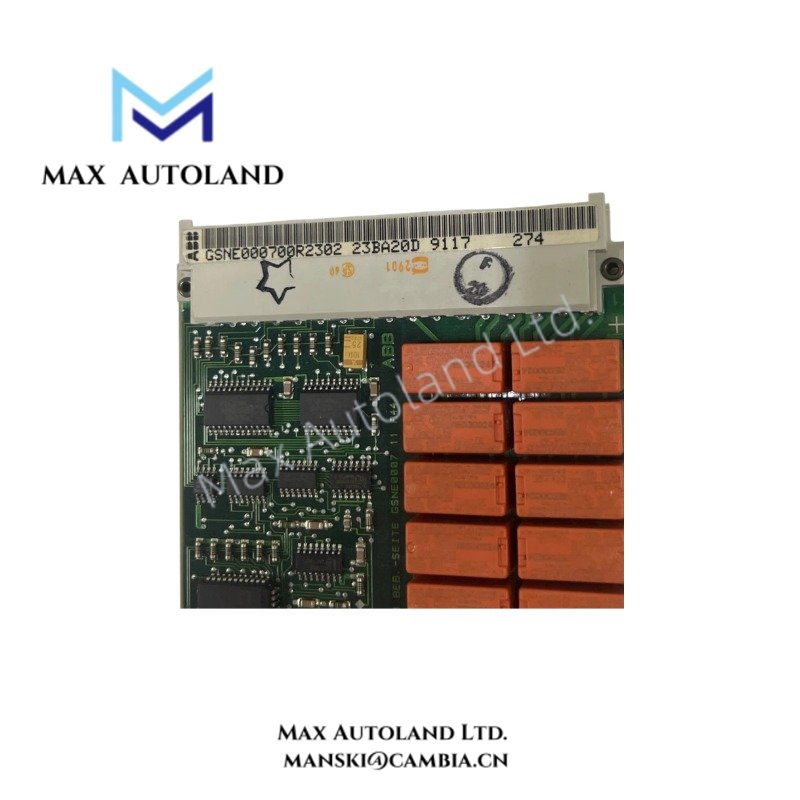

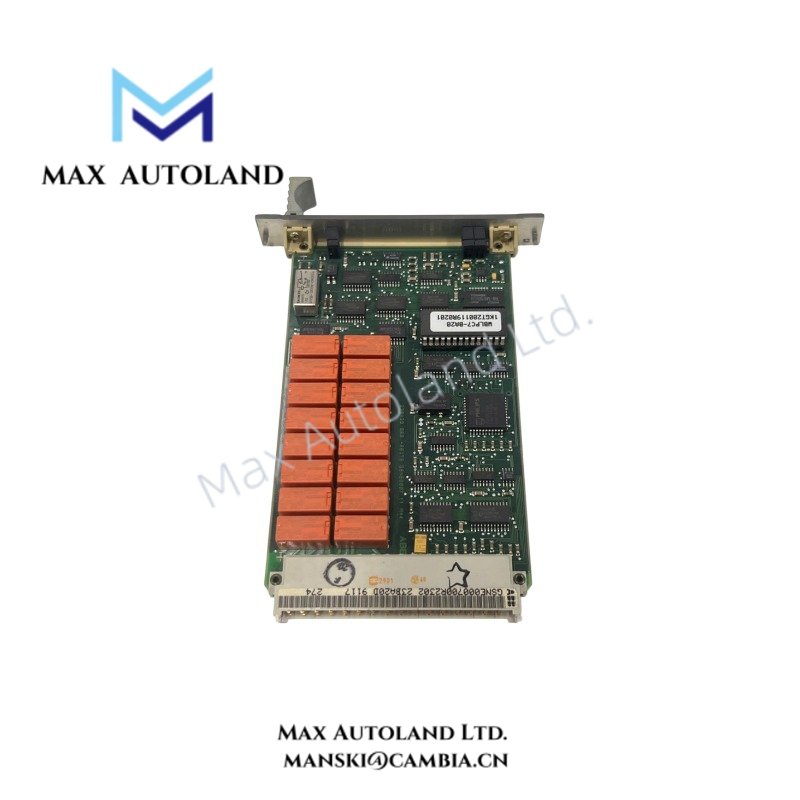

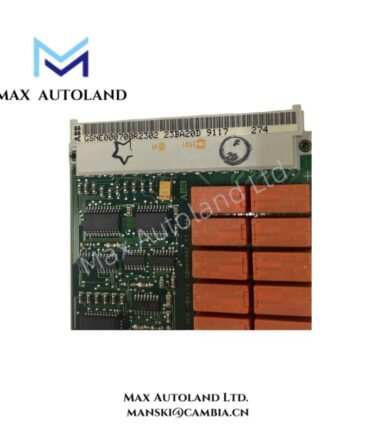

The ABB 23BA20D, also cataloged with the base reference 23BA20 / GSNE000700R5312 Binary Output Module, operates as a dedicated hardware component for transferring discrete control states to external circuits within ABB legacy Procontrol, Procontic, and related RTU control architectures. The module provides physical output or interface functions through its installed rack or system connection.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 23BA20D |
| Base Model | 23BA20 / GSNE000700R5312 |
| Brand | ABB |
| Module Type | Binary Output Module / Interface Board Module |
| Application | Industrial process control, power distribution, and remote telemetry |
| Origin | Not specified in the available product data |
| Weight | Approx. 0.2 kg |
| Dimensions | Approx. 2.5 cm x 20.3 cm x 12.7 cm |
| Core Function | Transfers discrete output states or interface signals to connected external circuits |
| System Compatibility | ABB legacy Procontrol, Procontic, and related RTU architectures, subject to hardware revision verification |
| Hardware Reference | 23BA20D is associated with the 23BA20 hardware family |
ABB Backplane and I/O Integration Characteristics
The ABB 23BA20D interfaces with the control system through its rack or backplane connection and transfers discrete control information between the system hardware and external field circuits. The installed configuration determines the available I/O mapping and electrical interface behavior.
For legacy ABB control architectures, correct backplane seating and module-position assignment affect signal recognition and output operation. Therefore, technicians should verify the installed hardware revision and system documentation before replacing a module.
Firmware and hardware revision compatibility should also be checked when the 23BA20D replaces an existing 23BA20 family module. The available product data identifies hardware association but does not define a universal firmware interchangeability matrix.
Frequently Asked Questions
Q: Can the ABB 23BA20D be installed as a direct replacement for a 23BA20 module?
A: The 23BA20D is associated with the 23BA20 hardware family. However, the exact hardware revision, rack configuration, connector arrangement, and system documentation should be checked before replacement.
Q: Does the available product data specify the output voltage or current rating?
A: No. The provided data identifies the module as a binary output or interface module but does not specify individual channel voltage, current, or load ratings.
Q: Does the ABB 23BA20D support hot swapping?
A: The available product information does not specify hot-swap capability. Module insertion or removal should follow the shutdown and maintenance procedures defined for the installed ABB control rack.
Field Installation Guidelines
Disconnect or isolate system power according to the applicable cabinet maintenance procedure before installing or removing the ABB 23BA20D.
Verify the module identification, base model reference, hardware revision, and rack position before installation. Align the module with the guide rails and connector interface, then insert it evenly without applying excessive force to the circuit board or connector assembly.
Inspect associated field wiring and terminal connections before returning the system to service. Route output wiring separately from high-noise power conductors where practical, and apply the grounding and shielding practices specified for the installed control cabinet.
After installation, confirm module recognition and verify the required discrete output or interface states through the system diagnostics and approved commissioning procedure.
