Overview

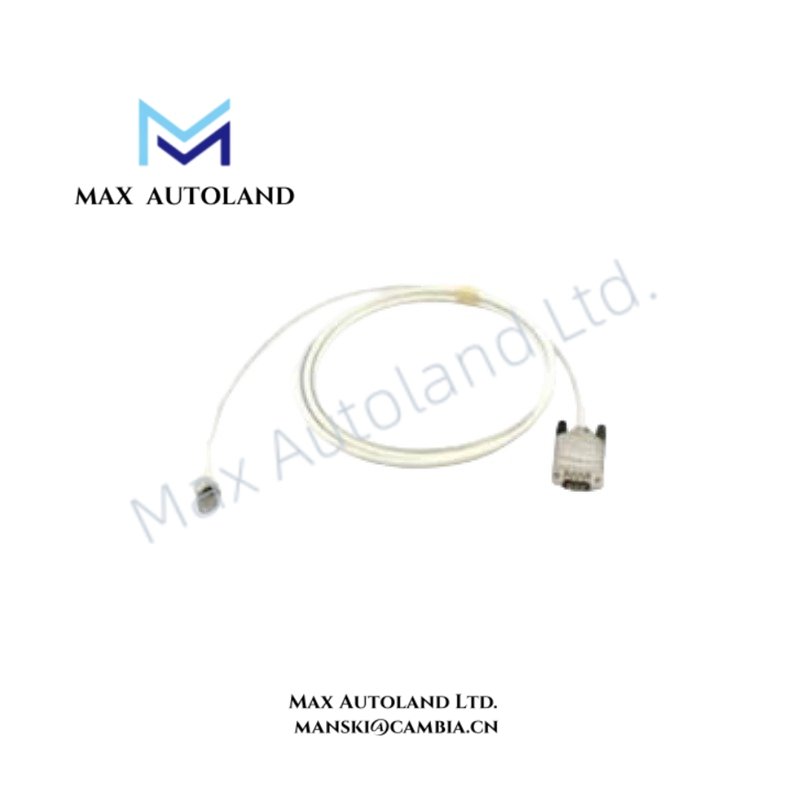

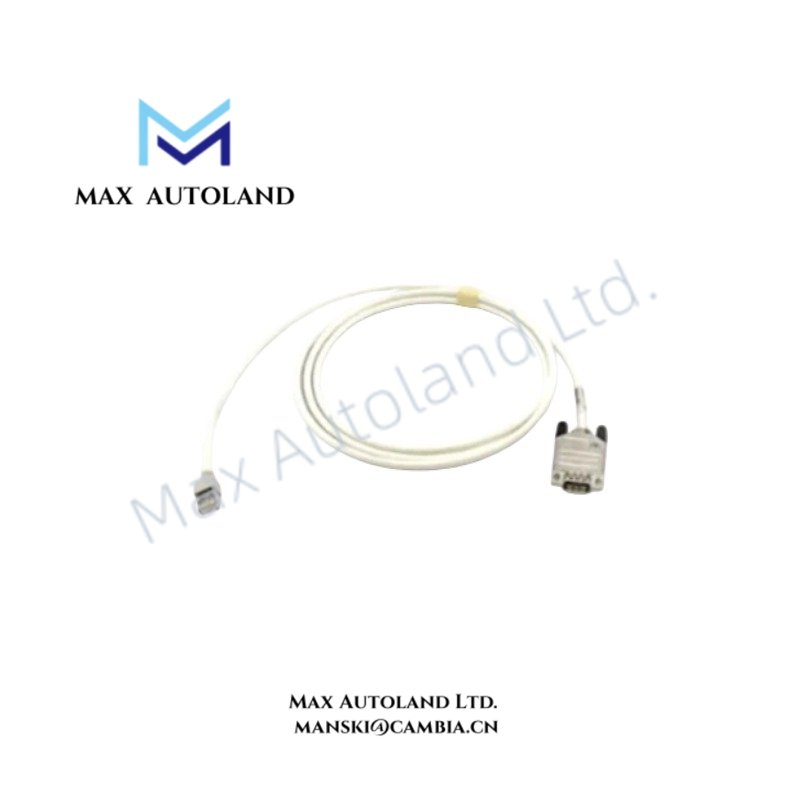

Configured for local human-machine interface connection in ABB Relion protection relay platforms, the ABB 2RCA025073P0003 (2RCA025073P0003 LHMI Cable) provides direct physical communication between the relay front interface and external configuration equipment. The cable supports local access functions within ABB protection and control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2RCA025073P0003 |
| Brand | ABB |
| Product Type | LHMI Cable |
| Dimensions | Cable length: 3 m |
| Operating Temp | Not specified |
| Power Consumption | Passive cable assembly, no external power consumption |
| Interface Function | Local Human-Machine Interface connection |
| Application Platform | ABB Relion protection and control relay systems |
| Cable Length | 3 m |
| Installation Type | Point-to-point local connection |
Industrial Control Communication and System Integration
The ABB 2RCA025073P0003 is designed as a physical interface accessory for ABB protection relay communication paths. Therefore, the cable maintains direct signal transmission between the local HMI port and connected relay equipment without active electronic conversion.
For ABB automation environments, interface accessories support structured device commissioning and maintenance procedures. The cable assembly enables local parameter configuration, relay diagnostics access, and operator interface connection when installed with compatible Relion 630 series protection devices.
Additionally, ABB industrial connection components follow system-level compatibility requirements for relay hardware interfaces. The cable design supports stable mechanical connection, correct pin alignment, and controlled signal routing within protection panels.
Frequently Asked Questions (FAQ)
Q: What is the primary function of the ABB 2RCA025073P0003?
A: The cable provides a local human-machine interface connection between compatible ABB protection relay equipment and external local interface devices.
Q: Does the ABB 2RCA025073P0003 require external power supply?
A: No. The component is a passive cable assembly and does not consume external electrical power.
Q: Which ABB systems can use the 2RCA025073P0003 cable?
A: The cable is associated with ABB Relion protection and control relay platforms, including compatible 630 series applications.
Field Installation Guidelines
- Install the cable according to the relay hardware manual and approved connection drawings.
- Verify connector orientation before insertion to prevent mechanical damage to interface terminals.
- Route the cable separately from high-voltage power conductors to reduce electromagnetic interference.
- Maintain proper cable bending radius according to the physical cable construction requirements.
- Confirm that the connected relay interface matches the LHMI cable specification before commissioning.
- Inspect connector contacts and cable insulation condition during installation and maintenance operations.
